© Munters AB, 2018 63
12.2.2 P
RESSURE
C
ONTROL
When set to pressure control, the static pressure (the difference between the interior and exterior air
pressures) controls the inlets opening and closing (the opening position is determined in the Inlet &
Curtain Levels screen). Air temperature has no effect on them. Maintaining the proper pressure enables
air to enter the rooms at the right speed and direction and ensures efficient air exchange. Note that the
Element will adjust the inlets' opening only if one or more fan is operating.
NOTE When fans are working in cycles, Element does all calculations based on the cumulative times
of the On Cycle.
As an option, Element can send an alarm if the static pressure is too high or too low.
Temperature plays no part in this process.

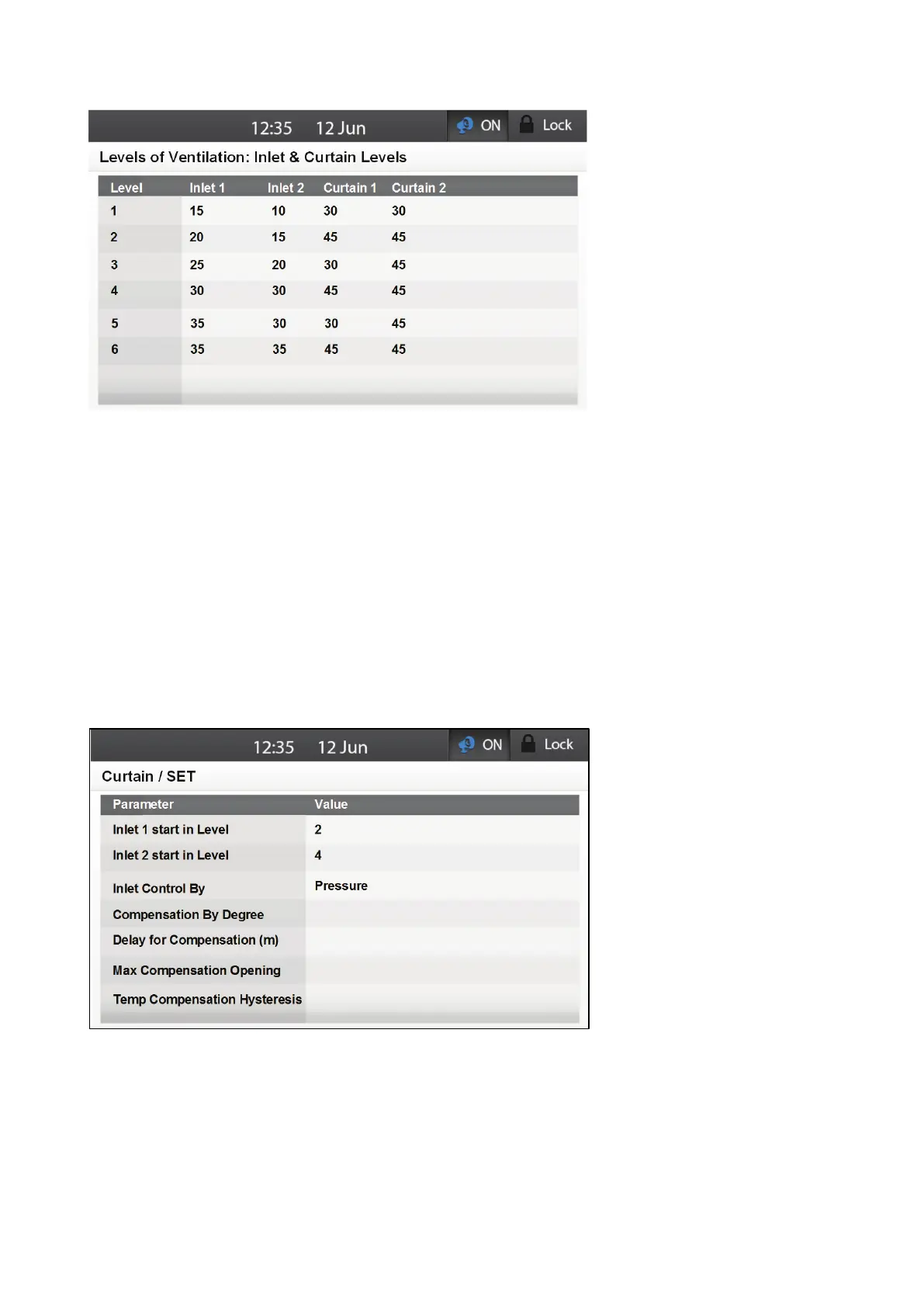

1. Go to System > Levels of Ventilation > Inlet & Curtain Levels > Set.
2. Define the following parameters:
o
Inlet Control by: Select Pressure.
3. Go to Control > Static Pressure.
