Munters Element - Configuring Soft Minimum Ventilation

© Munters AB, 2018 55

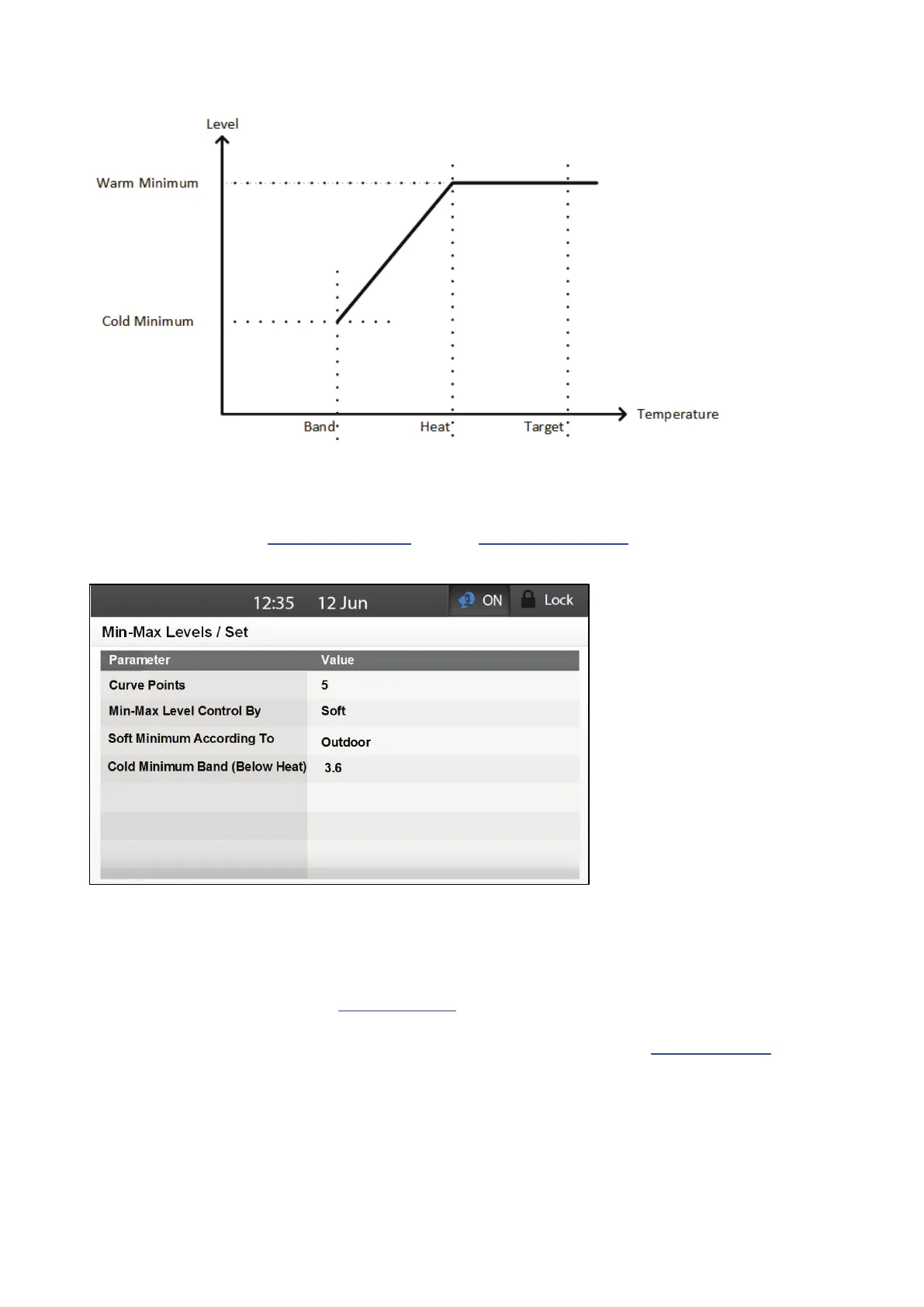

Figure 30: Soft Minimum Example
11.2.2 C
ONFIGURING
S
OFT
M
INIMUM
V
ENTILATION

Configure the Temperature Curve and the Levels of Ventilation.
1. Go to Control > Min Max Level > Set.
2. Define the following parameters:
o
Curve Points: Define the number of Min-Max levels. Range: 1 – 30. Default: 1
o
Min Max Level Control By: Set this parameter to Soft Min.
o
Soft Minimum According to: This parameter defines how the temperature curve
functions. See the previous section for details.
o Cold Minimum Band (Below Heat): Minimum Cold ventilation begins when the
temperature drops by the amount of this differential below the heat temperature.
Range: -20.0 – 20.0 F/C. Default: 2.0
3. Go to Control > Min Max Level.
