5.2.5.1 Sensor Wiring

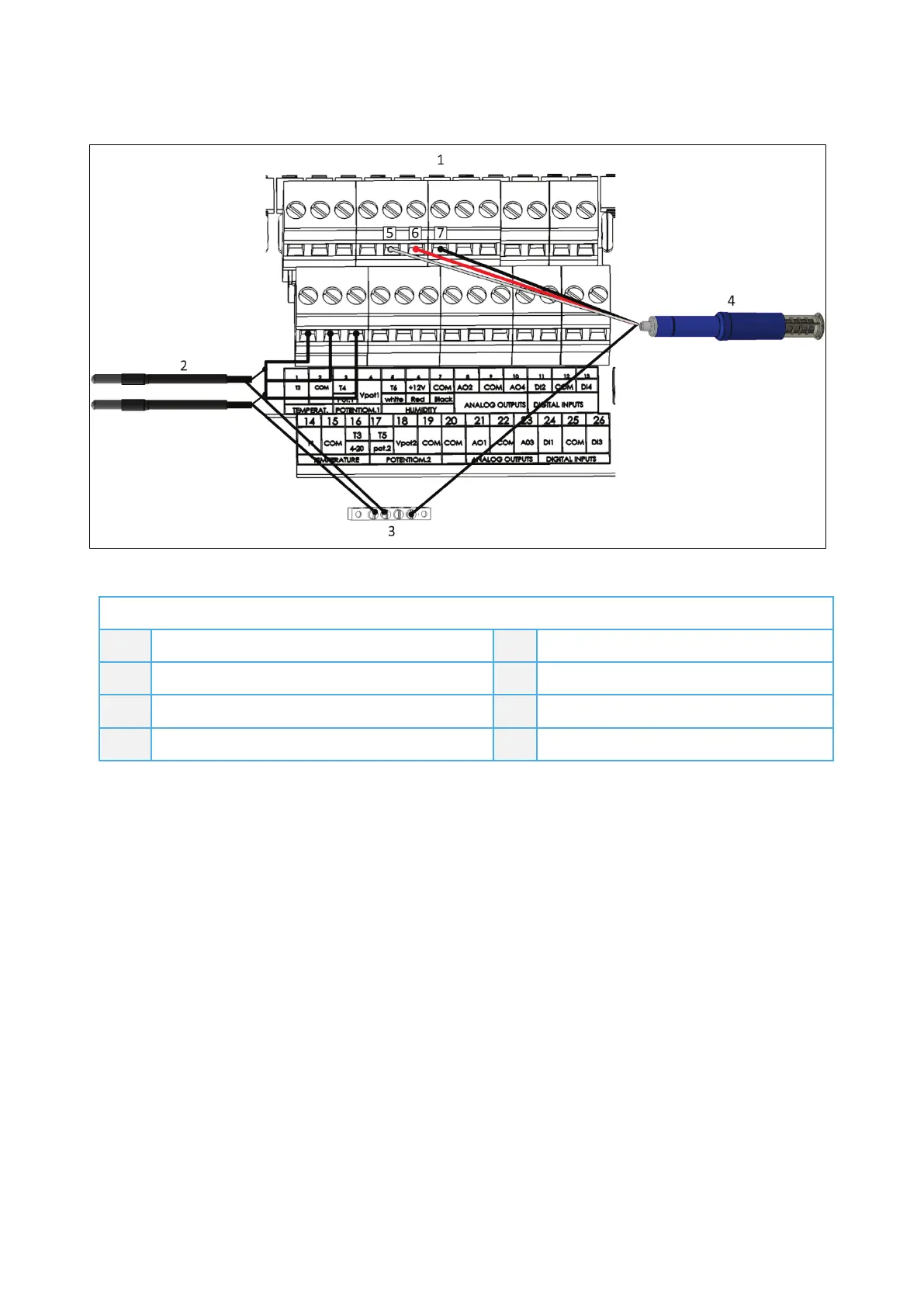

Figure 13: Temperature and Humidity Sensors Wiring
Figure 13 key
1 Element low voltage ports 5 Sensor white wire
2 Temperature sensors 6 Sensor red wire
3 Grounding strip 7 Sensor black wire
4 Humidity sensor
•
Install up to four temperature sensors.
•
Port 5 can be used to connect a temperature sensor or a humidity sensor. A jumper defines
which device is installed. Refer to Placing the Analog Input Jumpers, page 29 for details.
