Munters Element - TRIAC Setup; TRIAC Wiring

© Munters AB, 2018 33
o
Cycle Minimum OFF Time (Sec): This parameter defines the minimum amount of
ventilation off time and acts as a limitation to the ventilation change.
o
Diff From Heat to Stop: Define the difference from the heating temperature at which the
treatment stops.
5.2.6 TRIAC S
ETUP
•
TRIAC Wiring
•
Configuring the TRIAC Variable Speed Fans
5.2.6.1 TRIAC Wiring
•

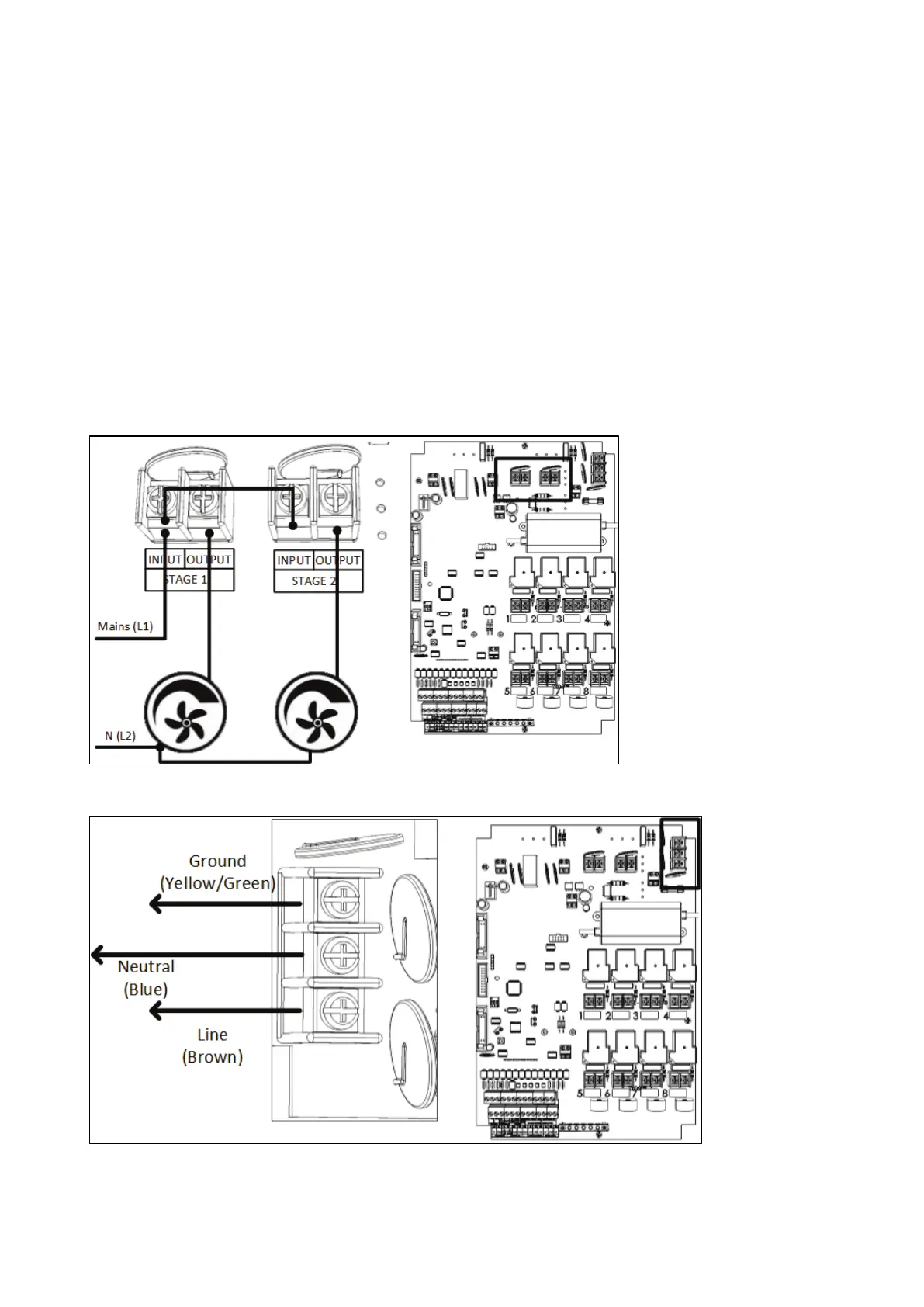

Figure 18: TRIAC Device Wiring
•
Figure 19: Power Wiring
•
Figure 20: Wiring Diagram of Main Voltage Section Showing Filtering
Figure 18: TRIAC Device Wiring
Figure 19: Power Wiring
