2. Define the following parameters:
o
On Temp Diff: When the actual temperature drops differs from the Heat Parameter by
this amount, heaters turn on. Range: -20 to +20. Default: 0
o
Off Temp Diff: When the actual temperature differs from the Heat Parameter by this
amount, heaters turn off. Range: -20 to +20. Default: 0.556C° (-1F°).
NOTE If the difference between On/Off Temp Difference is less than 0.1C / 0.2 F, heaters do not
operate.
Note that in Standard Heating, once the heaters turn on, they remain at the same temperature until the
Off Temperature is reached (Figure 36).

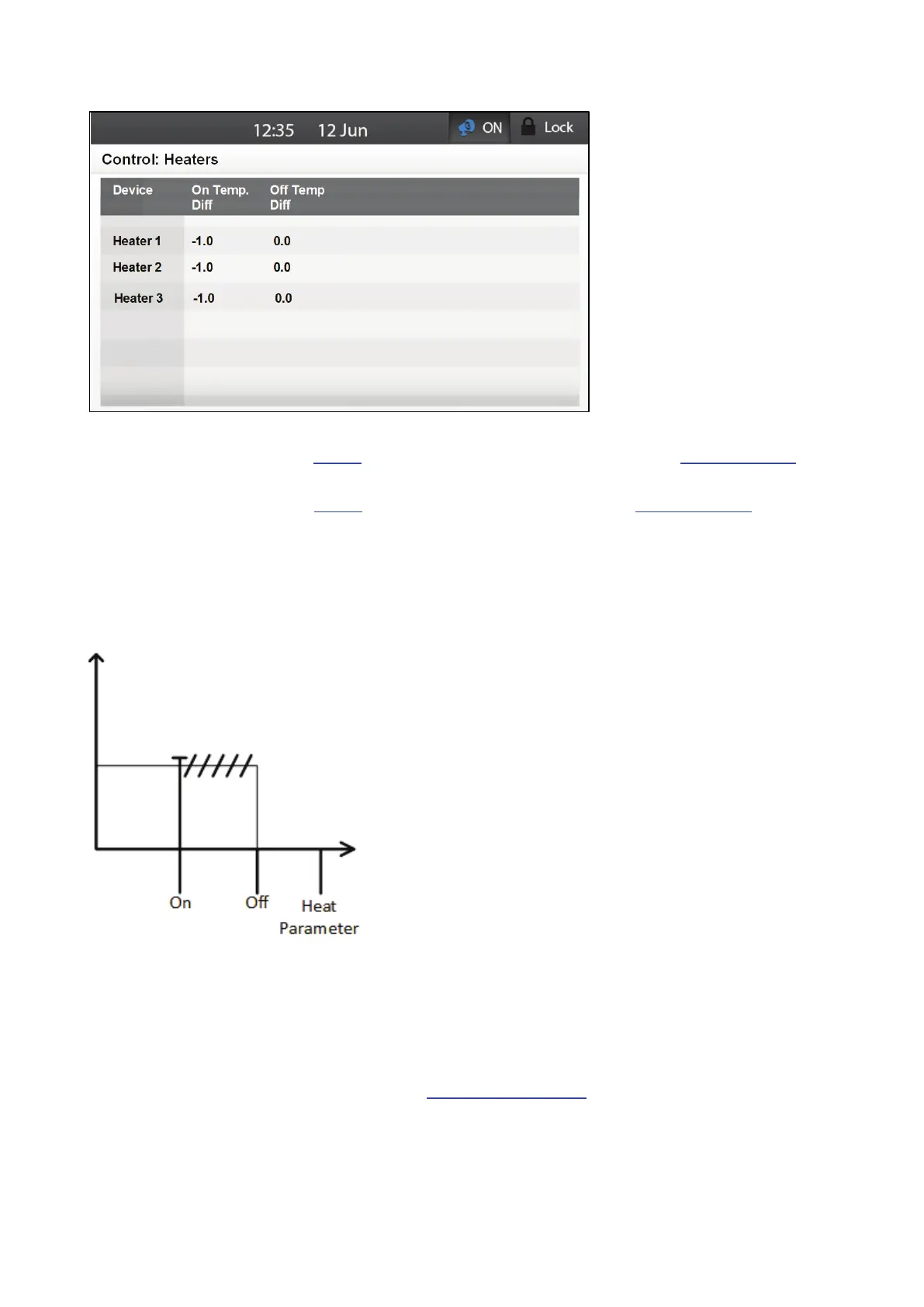

Figure 36: Standard Heating: No Curve
14.3 Analog Controlled Heating

Wire heaters to the relays as shown in Figure 7, page 21.

Define Centigrade or Fahrenheit in Measurement System.

Enable at least one analog output as a heater.
1. Go to Control > Heaters.
