Munters Element - Potentiometer Wiring; Placing the Analog Input Jumpers

© Munters AB, 2018 29
5.2.5.2 Potentiometer Wiring

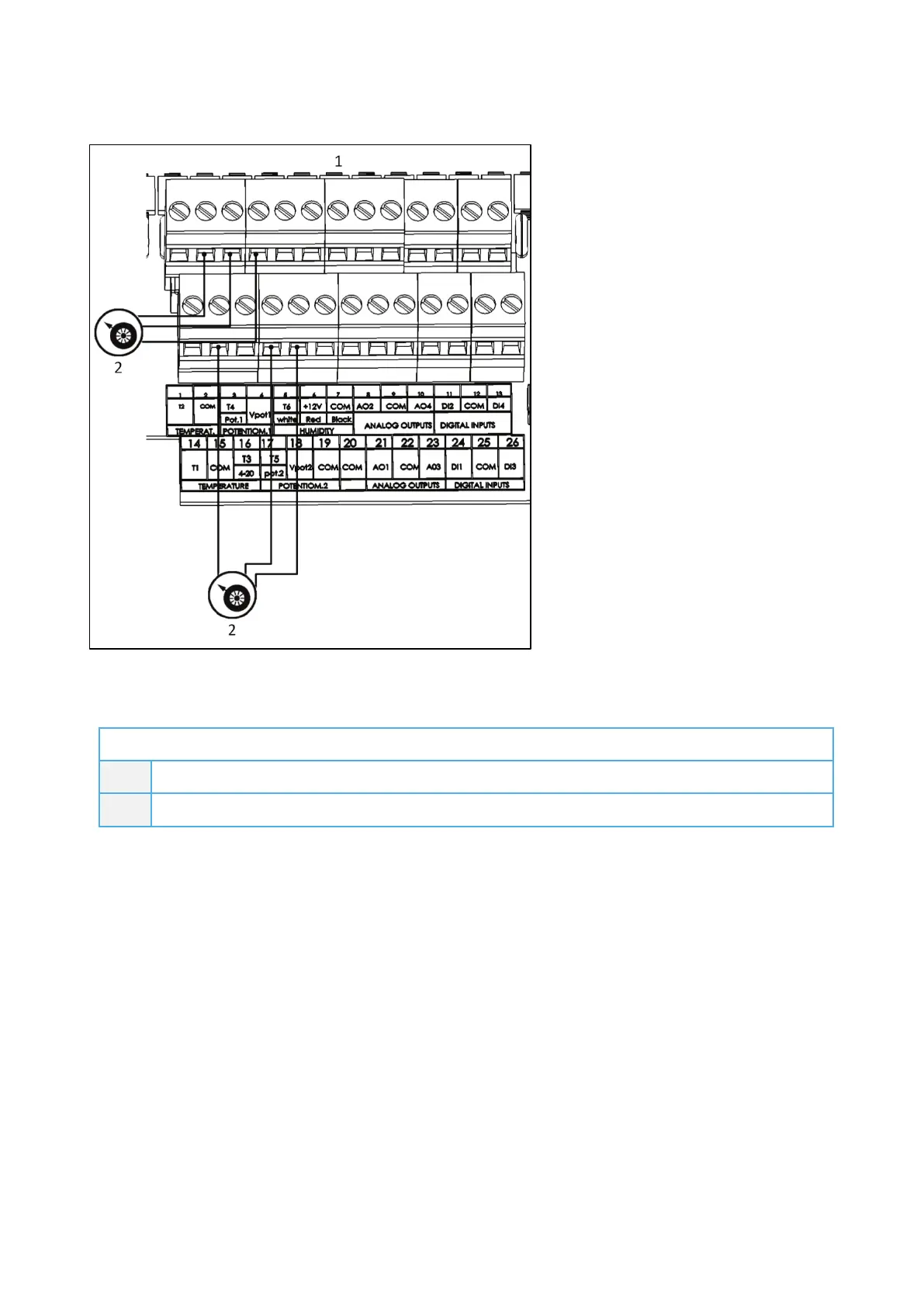

Figure 14: Potentiometers Wiring
NOTE Figure 14 is an example. Actual installations can differ.
Figure 14 key
1 Element low voltage ports
2 Potentiometer devices
•
Ports 3 and 17 can be used to connect a temperature sensor or a potentiometer. A jumper
defines which device is installed. Refer to Placing the Analog Input Jumpers, page 29 for
details.
5.2.5.3 Placing the Analog Input Jumpers
Temperature sensors can be connected to the ports used for humidity sensors and potentiometers. After
wiring the devices to their ports, define each port's function by placing a jumper on the appropriate pins.
Figure 15 shows the jumpers' location.
