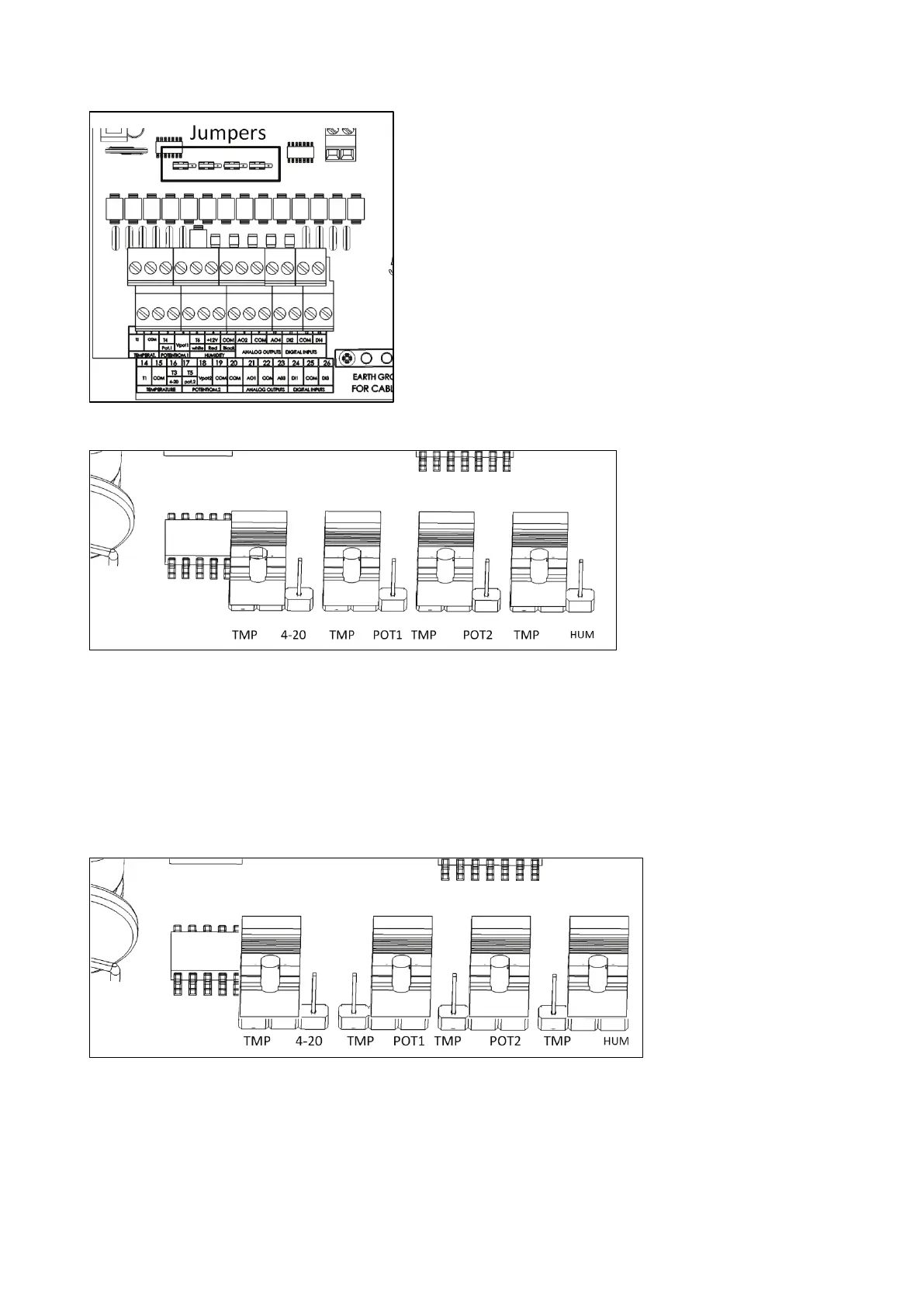

Figure 15: Jumper location
Figure 16: Jumpers expanded view
•
T1: Temperature sensor or 4 – 20 mA device (future use)
•
T2: Temperature sensor or potentiometer
•
T3: Temperature sensor or potentiometer
•
T4: Temperature sensor or humidity sensor
In Figure 16, all jumpers are placed on the temperature sensor pins. Figure 17 shows the jumpers
placed on the potentiometer and humidity sensor pins.
Figure 17: Jumpers expanded view (2)
