10 Fan and Ventilation
The following sections detail:
•
Defining the Fan Air Capacity
•
Levels of Ventilation
NOTE These settings should be configured by a technician familiar with the fan and inlet/curtain
specifications.
10.1 Defining the Fan Air Capacity
Fan air capacity defines how much air is provided when the fans run at full speed. These numbers are
used to calculate minimum air requirements.

In Measurement System, page 40, define the measurement unit.

Define the fans in System > Installation > Relays or System > Installation > Analog
Output.
1

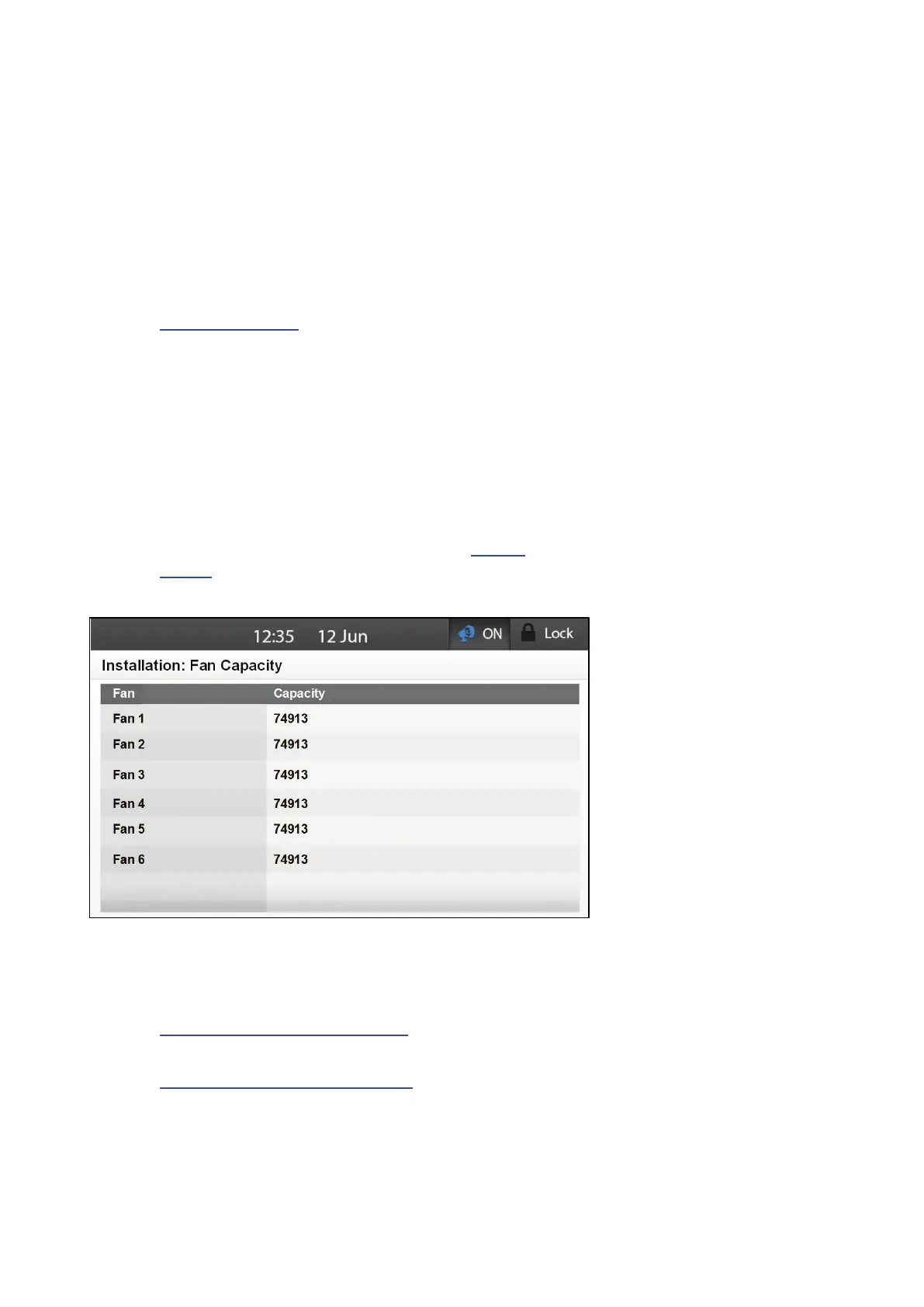

. Go to System > Installation > Fan Air Capacity.
2. Under Air Capacity enter each fan's maximum volume.
10.2 Levels of Ventilation
•
Understanding Levels of Ventilation
•
Ventilation Guidelines
•
Configuring the Levels of Ventilation
10.2.1 Understanding Levels of Ventilation
When minimum ventilation is operating, the ventilation works to ensure that there is sufficient clean air
while keeping the air temperature close to the target temperature. If the temperature is above the target
temperature by a sufficient amount, the ventilation level increases (after a delay time). If the increase in
