hyperion - TECHNICAL MANUAL

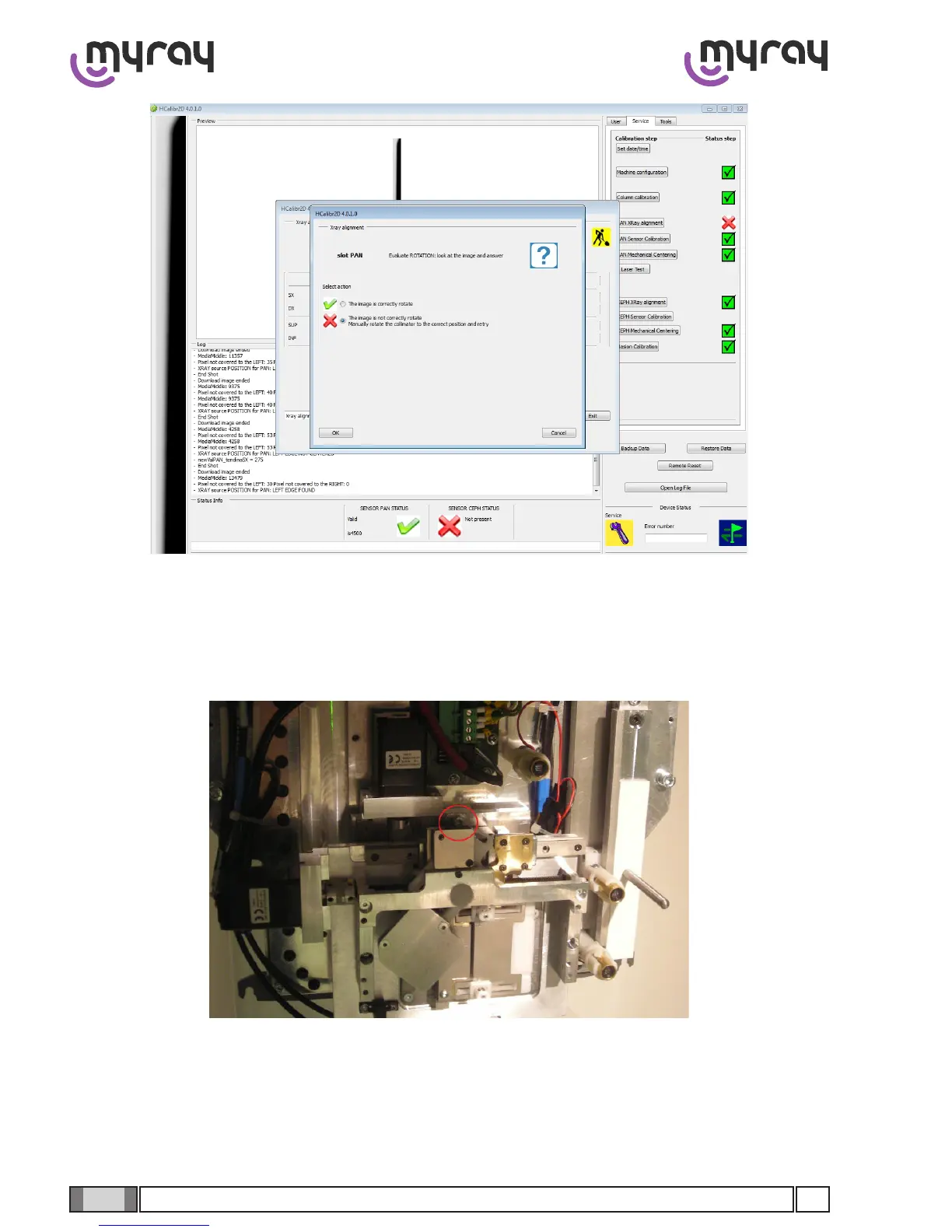

In case the inclination needs to be correct, adjust the primary collimator by rotating it.
Loosen the screw shown in the gure to release collimator rotation. Move it on the basis of the gure obtained during
the previous acquisition (the point of view is behind the sensor, looking at the ray source), tighten it and select “The
image is not correctly rotated”. Conrm with “ok” and repeat acquisition.
