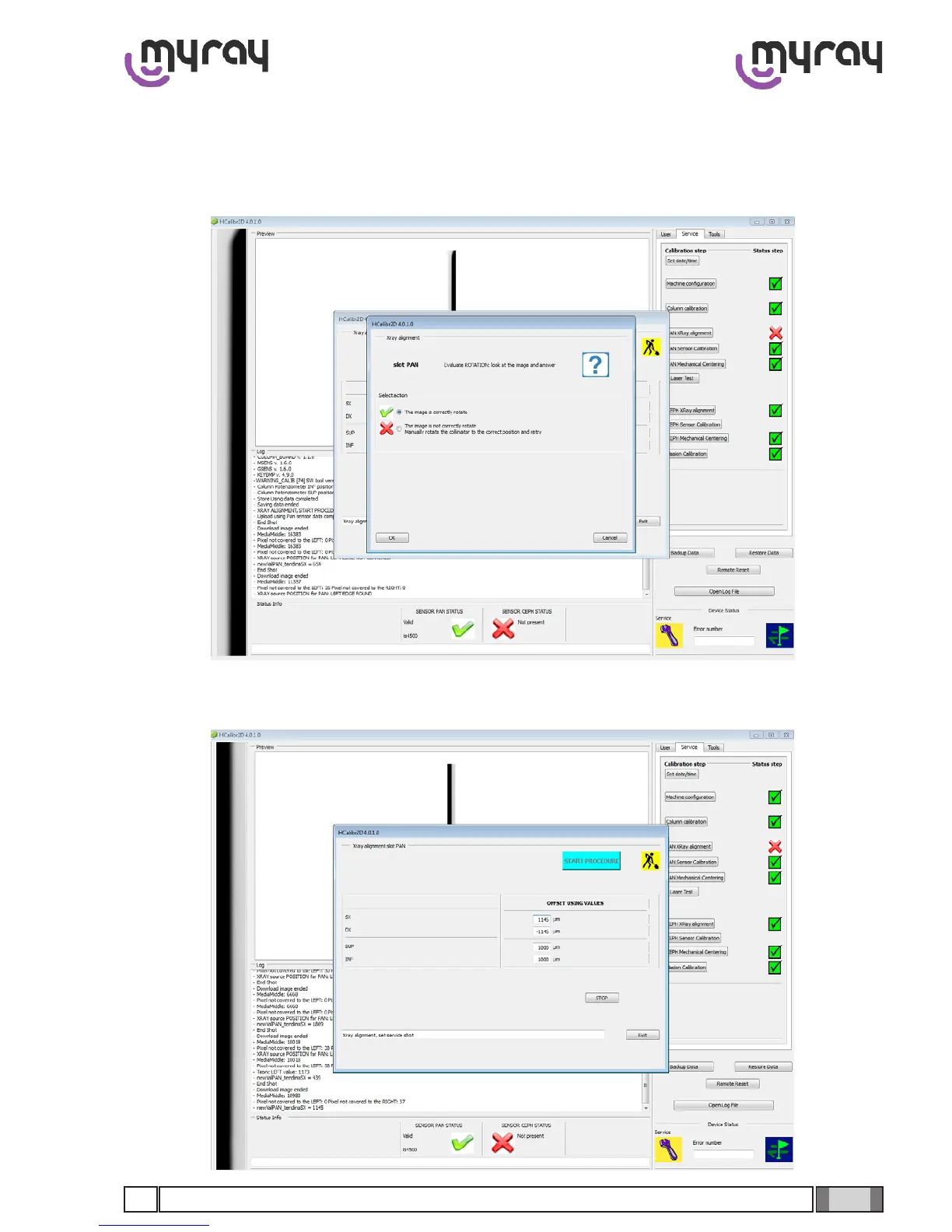

Continue with manual adjustments until X-ray beam verticality is obtained.
Once the black area (representing the irradiated area of the sensor) is parallel to the edge of the acquisition area,
select “the image is correctly rotate” to proceed with the x-ray beam alignment (from this point the procedure is auto-
matic).
