75
EN
hyperion - TECHNICAL MANUAL

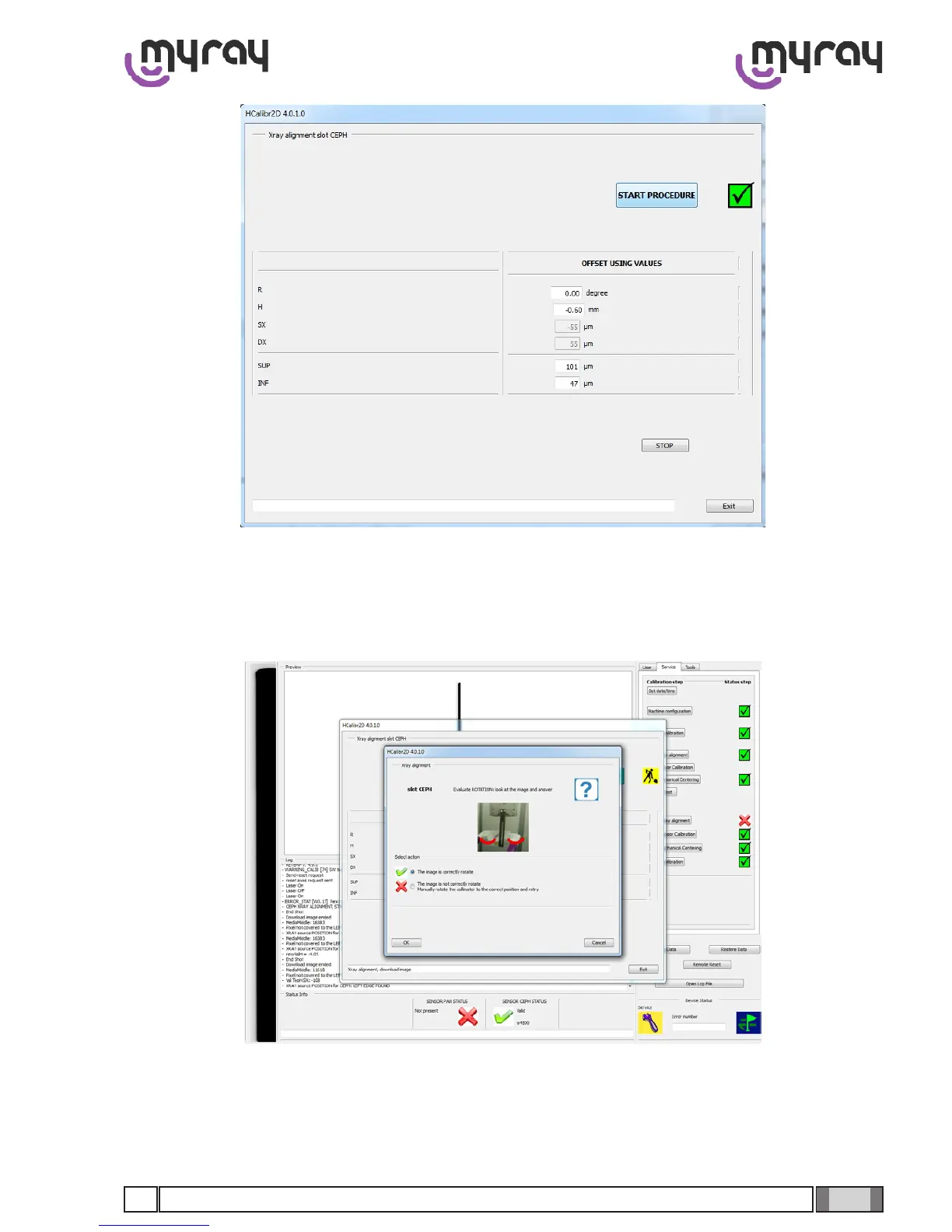

Aftertherstshoots,thesoftwarewillasktoverifytheinclinationoftheX-Raybeam.Incaseitneedstobecorrect,
adjust the secondary collimator by rotating it. Continue to acquire an image and adjust the collimator until the beam is
correctly aligned (see following picture).
