Myray hyperion X9 - Page 78

76
EN
hyperion - TECHNICAL MANUAL

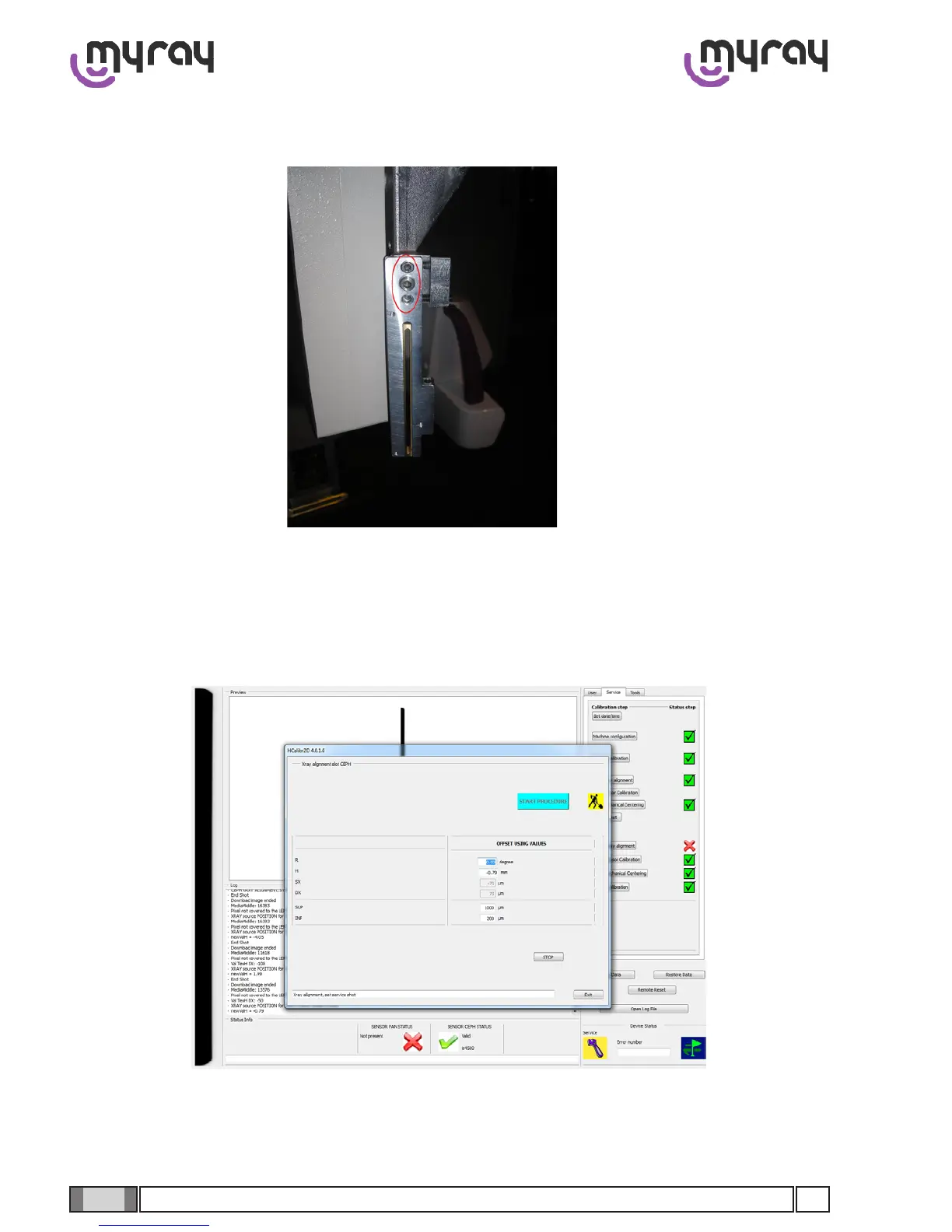

If the X-ray beam is diagonal, it will be necessary to move the secondary collimator manually by loosening the screws
indicated in the image:
ShiftthecollimatortoobtainaverticalX-raybeam(usethelateralgrubscrewstomakeveryneadjustments).Select
“The image is not correctly rotated” and repeat acquisition until the X-ray beam is vertical.
Once done click on “The image is correctly rotate” and proceed with the horizontal calibration. Once the acquired ima-
geresultstobecompletelyirradiated(black)conrmthecorrectcalibration.
Acorrecthorizontalalignmentconrmationmessagewilloccur;clickonOK
