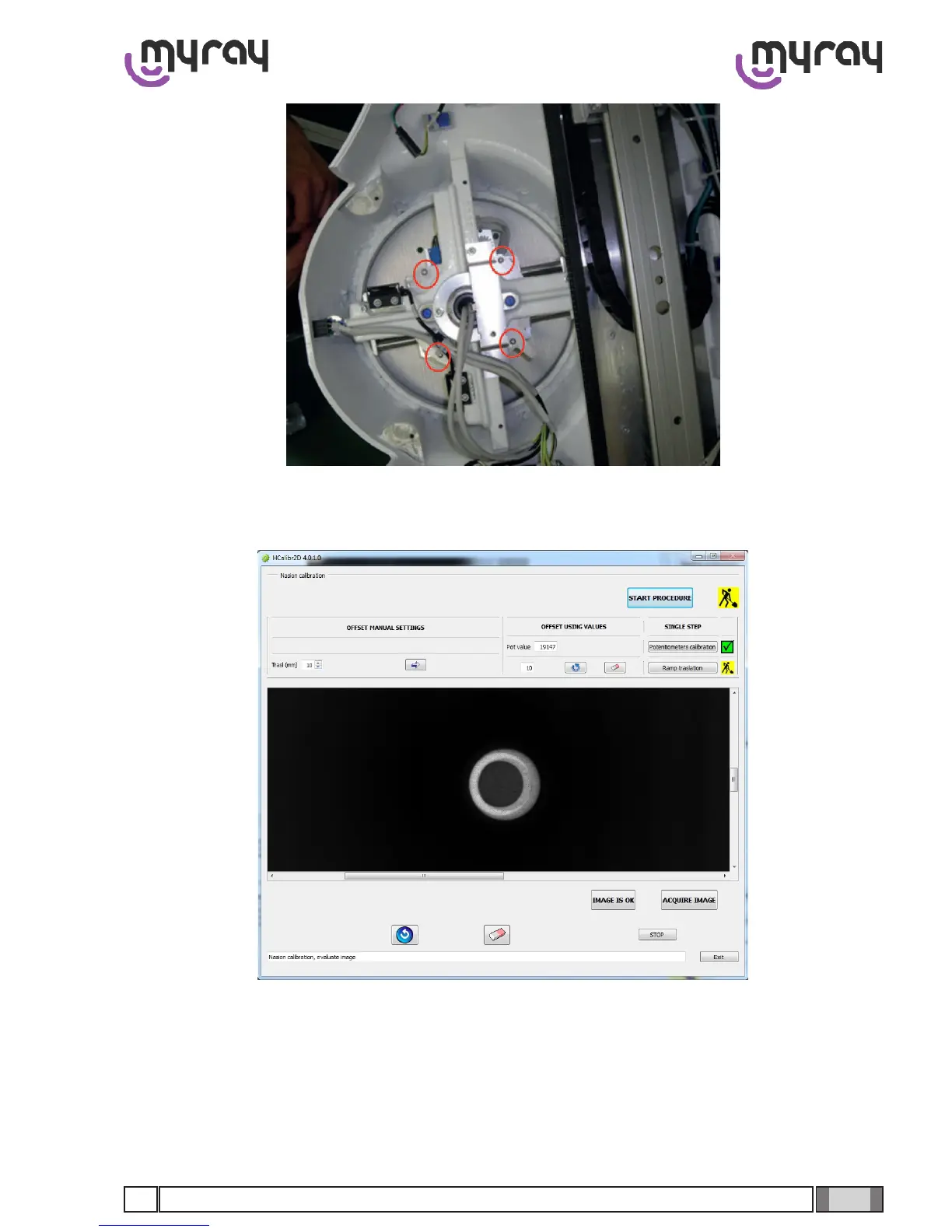

Select “Acquire Image” and check for proper concentricity of the rings in the ear guides:
To shift the soft tissues ramp it is necessary to modify the “Trasl (mm)” value under “Offset Manual Settings”; click on the arrow to
transfer the new value to “Offset Using Values” and select “Acquire Image” to carry out a new acquisition to assess the shift.
Reducing the trasl value shifts the ramp leftwards (fewer soft tissues seen), increasing it shifts it rightwards (heightened
visibility of soft tissues).
Once the ramp results to be correctly aligned with the nasion click on “image is ok” and terminate the calibration pro-
cedure.
Conrmandsave.
