33

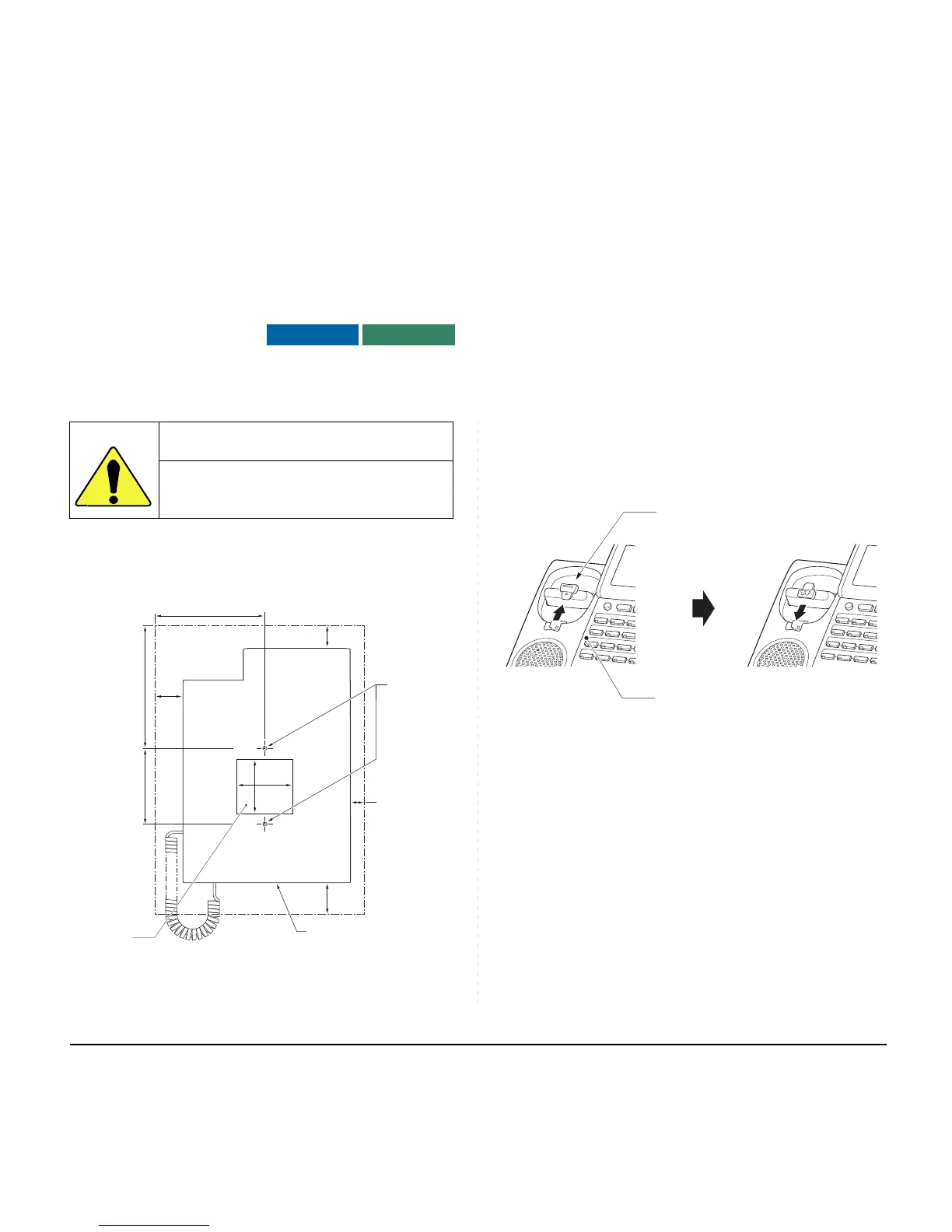

WALL MOUNTING
A wall mount unit (WM-L UNIT) is used to mount all
telephones to the wall. This unit connects to the back
side of the telephone.
To mount the telephone set on the wall, the following
space is required.
To mount the telephone set on the wall, use the
following procedure.
STEP 1: Mount the hanger of the handset upside
down.
Remove the hanger from the handset once.
Turn it upside down and then insert the hang-
er until you hear it clicks.
STEP 2: Turn the telephone set upside down and wid-
en the tilt leg.
STEP 3: Attach WM-L UNIT to the wall directly or the
wall plate.
- When attaching WM-L UNIT to the wall
directly:
Secure WM-L UNIT with the six screws (in-
cluded with the telephone set) or hang WM-L
UNIT on the wall with the two screws (pur-
chased separately) inserted into the wall.
WARNING
Be careful not to drop the telephone set while
mounting it on the wall. It can cause injury.
Make sure the telephone set is firmly mounted
on the wall to prevent the telephone set from
falling out. It can cause injury.
DT730/710
DT330/310
Telephone
Tab Slots
Space for
Modular terminal
117.5
136
25 (approximately)
15 (approximately)
35 (approximately)
30 (approximately)
83.5
60
60
(In the case of 12D/24D)
All dimensions in mm
Handset Hanger
Telpehone
