NETGEAR GS748T User Manual

119
GS748T Smart Switch

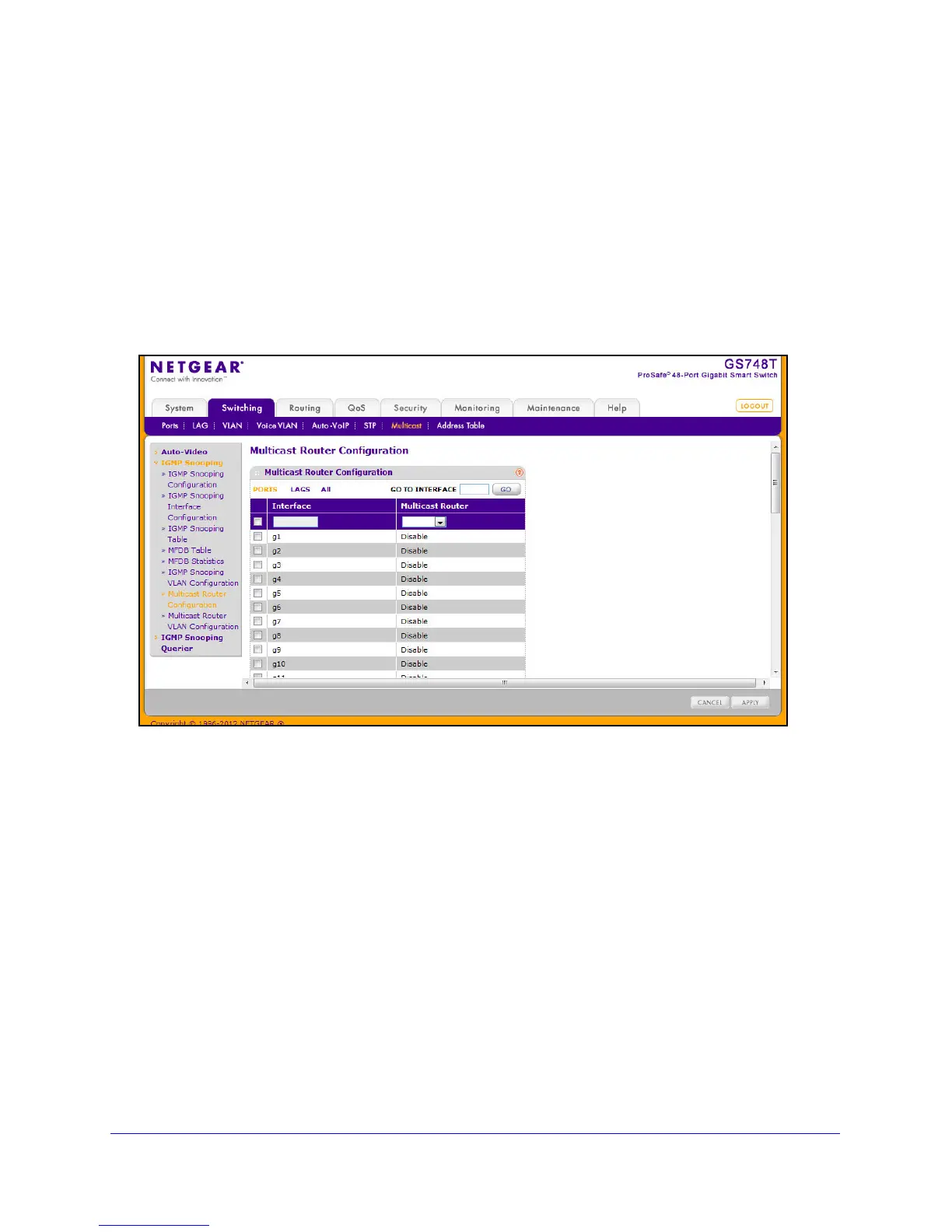

Multicast Router Configuration
This page configures the interface as the one the multicast router is attached to. All IGMP
packets snooped by the switch will be forwarded to the multicast router reachable from this
interface. The configuration is not needed most of the time since the switch will automatically
detect the presence of multicast router and forward IGMP packet accordingly. It is only
needed when you want to make sure the multicast router always receives IGMP packets from
the switch in a complex network.
To access the Multicast Router Conf
iguration page, click Switching Multicast  IGMP
Snooping
 Multicast Router Configuration.

To configure the multicast router settings:
1. Select
the check box associated with each interface you want to configure. Select the
check box in the heading row to apply the same settings to all interfaces.
2. Use Multi
cast Router to enable or disable Multicast Router on the selected interfaces.
3. Click AP
PLY to update the switch with the changes.
4. Click CA
NCEL to abandon the changes.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
