NETGEAR GS748T User Manual

211
GS748T Smart Switch
IP ACL
IP ACLs allow network managers to define classification actions and rules for specific ingress
ports. Packets can be filtered on ingress (inbound) ports only. If the filter rules match, then
some actions can be taken, including dropping the packet or disabling the port. For example,
a network administrator defines an ACL rule that says port number 20 can receive TCP
packets. However, if a UDP packet is received the packet is dropped.
ACLs are composed of access control entries (ACE), or
rules, that consist of the filters that
determine traffic classifications.

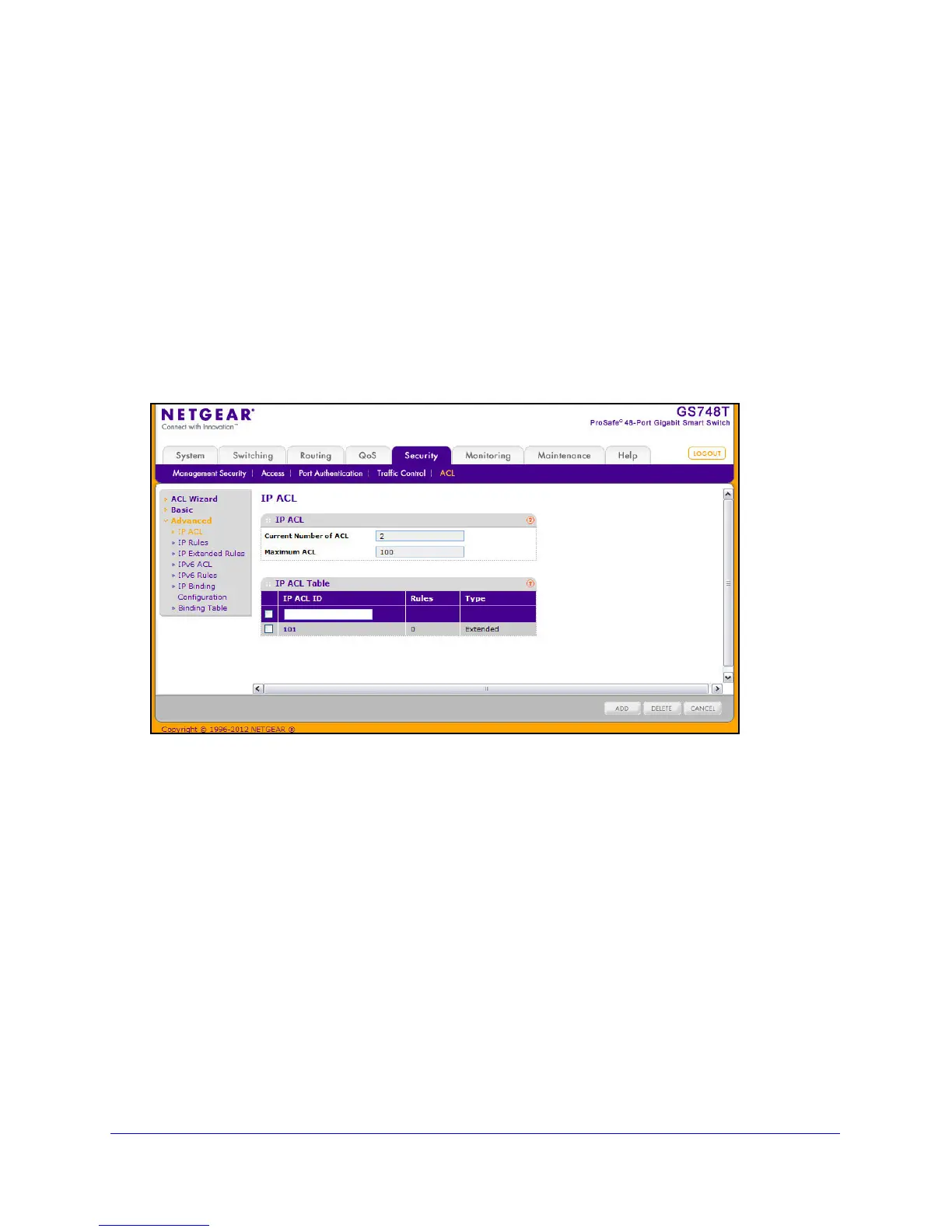

Use the IP ACL Configuration page to add or remove IP-based ACLs.
To display the IP ACL page, click Security
 ACL, then click the Advanced  IP ACL link.
The IP ACL area shows the current size of the ACL table versus the maximum size of the
ACL table. The current size is equal to the number of configured IPv4 plus the number of
configured MAC ACLs. The maximum size is 100.
To configure an IP ACL:
1. I
n the IP ACL ID field, specify the ACL ID. The ID is an integer in the following range:
• 1
–99: Creates an IP Standard ACL, which allows you to permit or deny traffic from a
source IP address.
• 1
00–199: Creates an IP Extended ACL, which allows you to permit or deny specific
types of layer 3 or layer 4 traffic from a source IP address to a destination IP address.
This type of ACL provides more granularity and filtering capabilities than the standard
IP ACL.
Each configured ACL displays the
following information:
• Rules. Displays th
e number of rules currently configured for the IP ACL.
• T
ype. Identifies the ACL as either a standard or extended IP ACL.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
