NETGEAR GS748T User Manual

59
GS748T Smart Switch

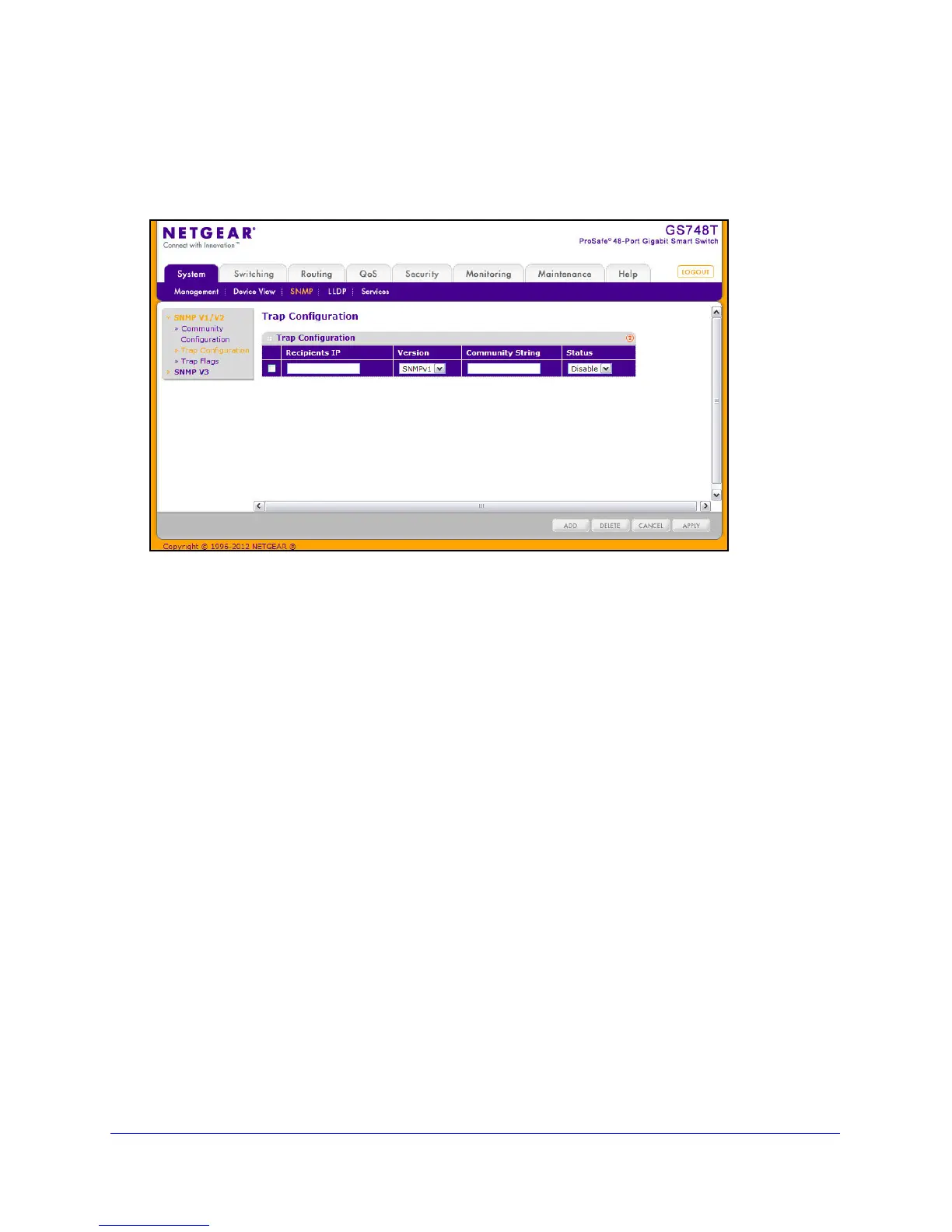

Trap Configuration
This page displays an entry for every active Trap Receiver. To access this page, click System
 SNMP  SNMP V1/V2  Trap Configuration.
To configure SNMP trap settings:
1. T
o add a host that will receive SNMP traps, enter trap configuration information in the
available fields described below, and then click Add.
• Rec
ipients IP. The address in x.x.x.x format to receive SNMP traps from this device.
• Ve
rsion. The trap version to be used by the receiver from the menu.
• SNMP
v1: Uses SNMP v1 to send traps to the receiver.
• SNMP
v2: Uses SNMP v2 to send traps to the receiver.
• Com
munity String. The community string for the SNMP trap packet to be sent to the
trap manager. This may be up to 16 characters and is case sensitive.
• S
tatus. Select the receiver’s status from the menu:
• Ena
ble: Send traps to the receiver.
• Disable: Do no
t send traps to the receiver.
2. T
o modify information about an existing SNMP recipient, select the check box next to the
recipient, change the desired fields, and then click Apply. Configuration changes take effect
immediately.
3. T
o delete a recipient, select the check box next to the recipient and click Delete.
4. Click Canc
el to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
