NETGEAR GS748T User Manual

218
GS748T Smart Switch
To configure an IPv6 ACL:
1. To add an ACL, type a name in the IPv6 ACL field, and then click Add.
2. T
o delete an ACL, select the check box associated with the ACL, and then click Delete.
3. Click Cancel
to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
4. If
you modify the IPv6 ACL name, click Apply to submit the changes to the switch.
IPv6 Rules
Use the IPv6 Rules page to configure the rules for the IPv6 Access Control Lists. The IPv6
Access Control Lists are created using the IPv6 Access Control List Configuration page. By
default, no specific value is in effect for any of the IPv6 ACL rules.

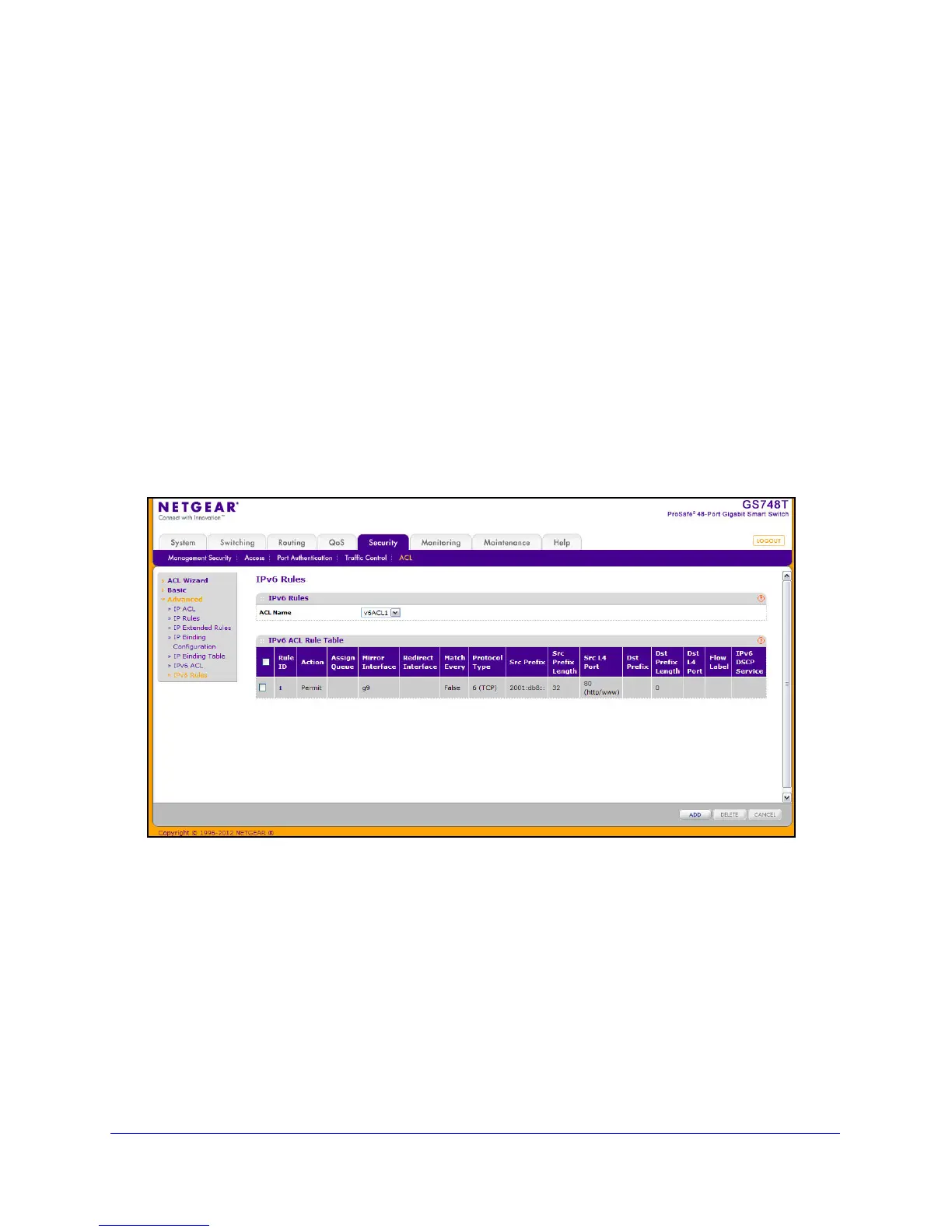

To display the IPv6 Rules page, click Security
 ACL > Advanced  IPv6 Rules. In the
following figure, an IPv6 rule exists, and one rule has been configured.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
