NETGEAR GS748T User Manual

221
GS748T Smart Switch

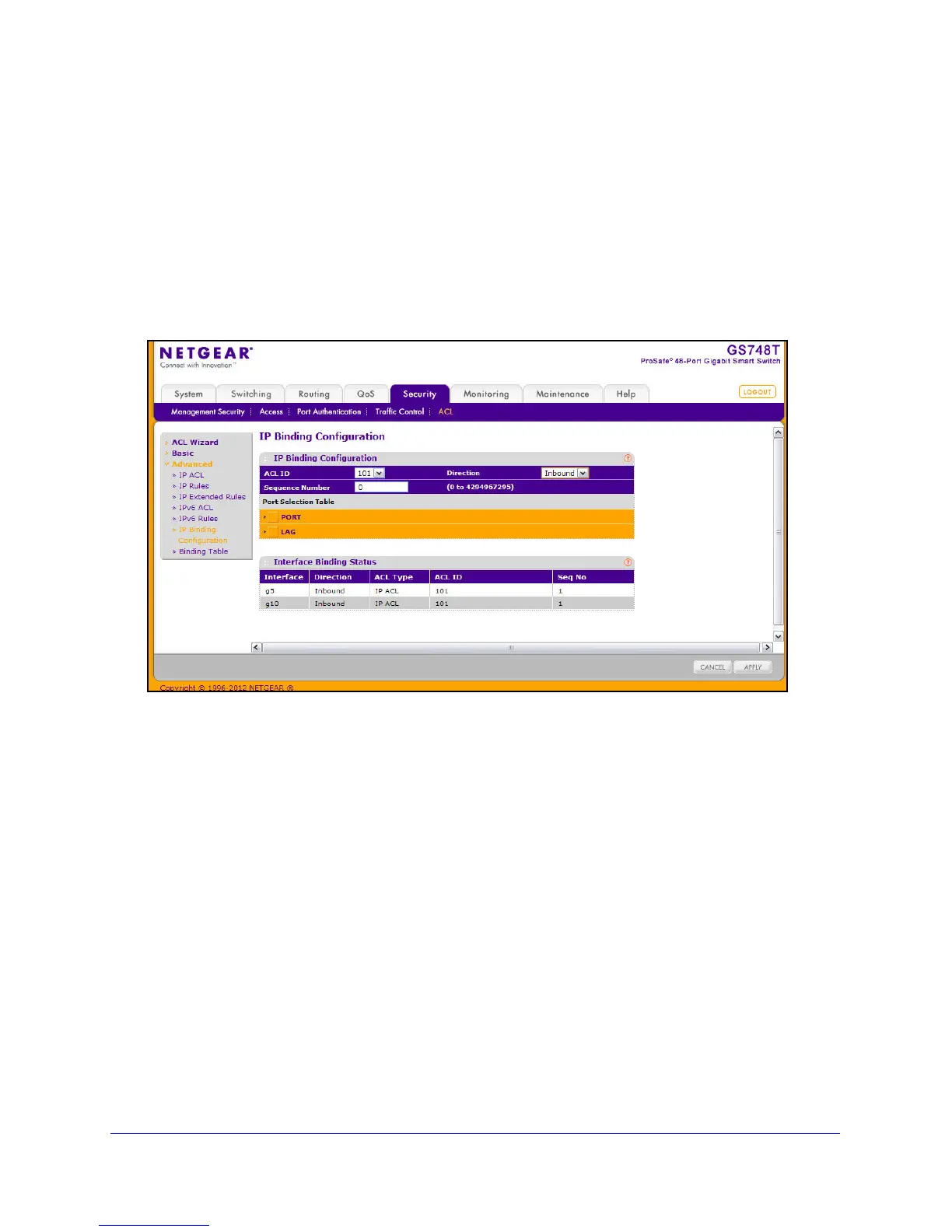

IP Binding Configuration
When an ACL is bound to an interface, all the rules that have been defined are applied to the
selected interface. Use the IP Binding Configuration page to assign IPv4 and IPv6 ACLs to
ports and LAGs. From this page, you can also assign a sequence number to the ACLs that
are bound to interfaces, which determines the priority of the ACLs when an interface is
associated with more than one.
To display the IP Binding Configuration page, click Se
curity  ACL, then click the Advanced 
IP Binding Configuration link.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
