GS748T Smart Switch
Port VLAN ID Configuration

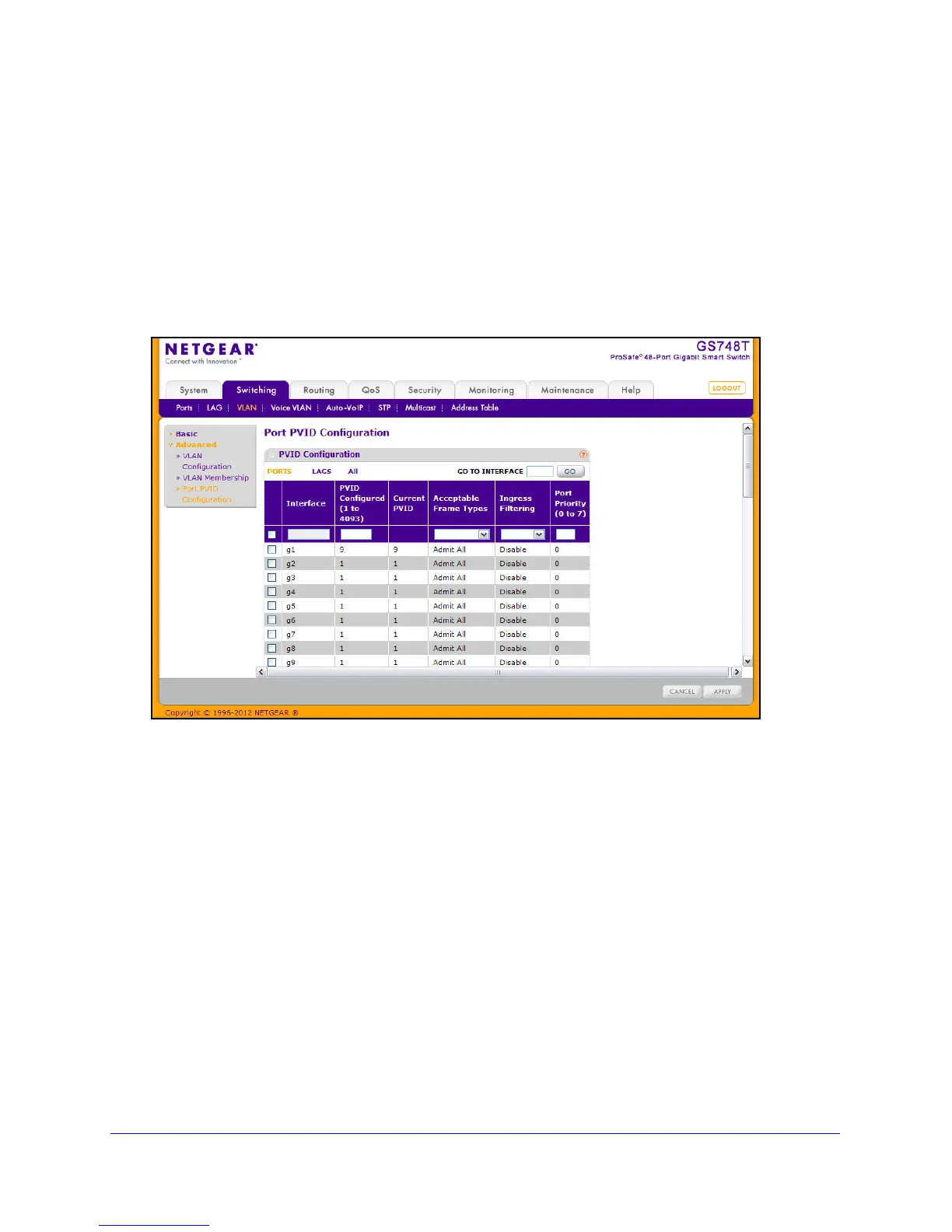

The Port PVID Configuration screen lets you assign a port VLAN ID (PVID) to an interface.
There are certain requirements for a PVID:
• All por
ts must have a defined PVID.
• I
f no other value is specified, the default VLAN PVID is used.
To access the Port PVID Configuration page, click Switching
 VLAN  Advanced  Port
PVID Configuration.
To configure PVID information:
1. T
o configure PVID settings for a physical port, click PORTS.
2. T
o configure PVID settings for a Link Aggregation Group (LAG), click LAGS.
3. T
o configure PVID settings for both physical ports and LAGs, click ALL.
4. Select t
he check box next to the interfaces to configure. You can select multiple interfaces to
apply the same setting to the selected interfaces. Select the check box in the heading row to
apply the same settings to all interfaces.
5. Conf
igure the PVID to assign to untagged or priority tagged frames received on this port.
6. In the
Acceptable Frame Type field, specify how you want the port to handle untagged and
priority tagged frames. Whichever you select, VLAN tagged frames will be forwarded in
accordance with the IEEE 802.1Q VLAN standard. The factory default is Admit All.
• VLAN Only:
The port will accept only VLAN-tagged frames and will discard any
untagged or priority tagged frames it receives.
• Adm
it All: Untagged and priority tagged frames received on the port will be accepted
and assigned the value of the Port VLAN ID for this port.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
