NETGEAR GS748T User Manual

27
GS748T Smart Switch

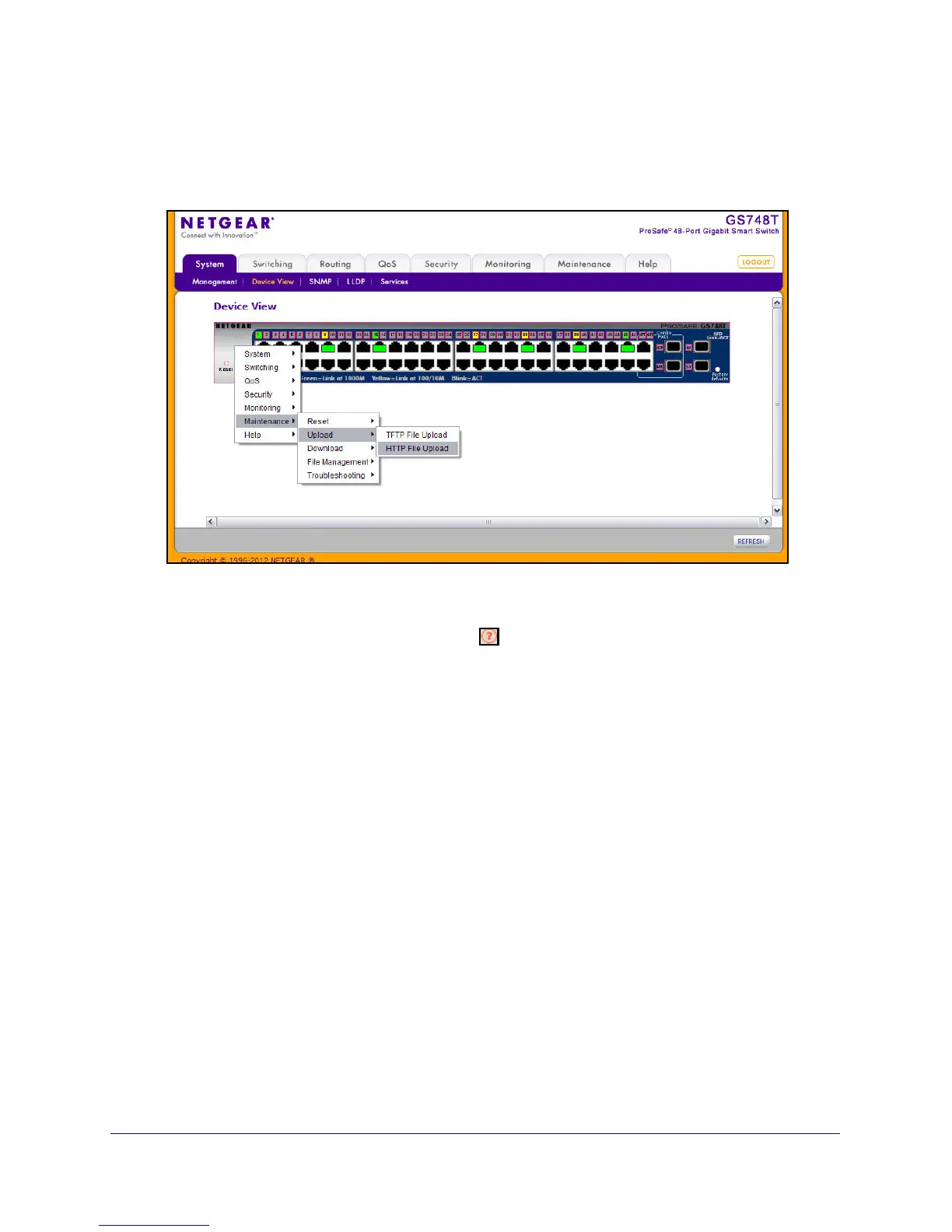

If you click the graphic, but do not click a specific port, the main menu appears, as the
following figure shows. This menu contains the same option as the navigation tabs at the top
of the page.
Help Page Access
Every page contains a link to the online help , which contains information to assist in
configuring and managing the switch. The onlin
e help pages are context sensitive. For
example, if the IP Addressing page is open, the help topic for that page displays if you click
Help. Figure 4 on p
age 24 shows the location of the Help link on the Web interface.
User-Defined Fields
User-defined fields can contain 1 to 159 characters, unless otherwise noted on the
configuration Web page. All characters may be used except for the following (unless
specifically noted in for that feature):
Table 1:
\ <
/ >|
* |
?
Using SNMP
The GS748T Smart Switch software supports the configuration of SNMP groups and users
that can manage traps that the SNMP agent generates.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
