NETGEAR GS748T User Manual

47
GS748T Smart Switch
DNS
You can use these pages to configure information about DNS servers the network uses and
how the switch operates as a DNS client.

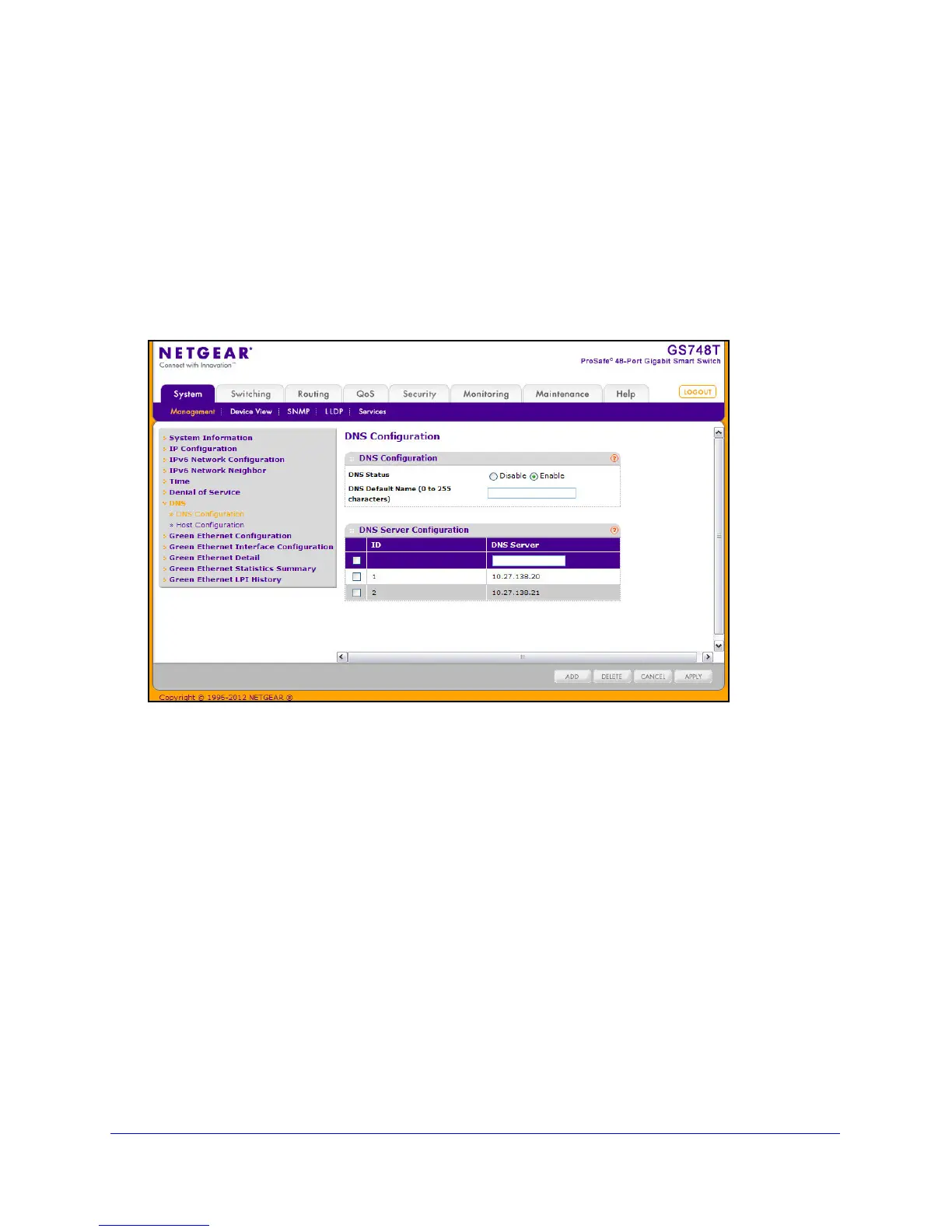

DNS Configuration
Use this page to configure global DNS settings and DNS server information.
To access this page, click Syst
em  Management  DNS  DNS Configuration.
To configure the global DNS settings:
1. S
pecify whether to enable or disable the administrative status of the DNS Client.
• Enable. Allow the switch to send DNS queries
to a DNS server to resolve a DNS
domain name. DNS is enabled by default.
• Dis
able. Prevent the switch from sending DNS queries.
2. Enter the DNS default domain name to include in DNS queries. When the
system is
performing a lookup on an unqualified host name, this field is provided as the domain name
(for example, if default domain name is netgear.com and the user enters test, then test is
changed to test.netgear.com to resolve the name).
3. T
o specify the DNS server to which the switch sends DNS queries, enter an IP address in
standard IPv4 dot notation in the DNS Server Address and click Add. The server appears
in the list below. You can specify up to eight DNS servers. The precedence is set in the
order created.
4. T
o remove a DNS server from the list, select the check box next to the server you want to
remove and click Delete. If no DNS server is specified, the check box is global and will
delete all the DNS servers listed.

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
