NETGEAR GS748T User Manual

55
GS748T Smart Switch
Click Refresh to update the page with the most current data from the switch

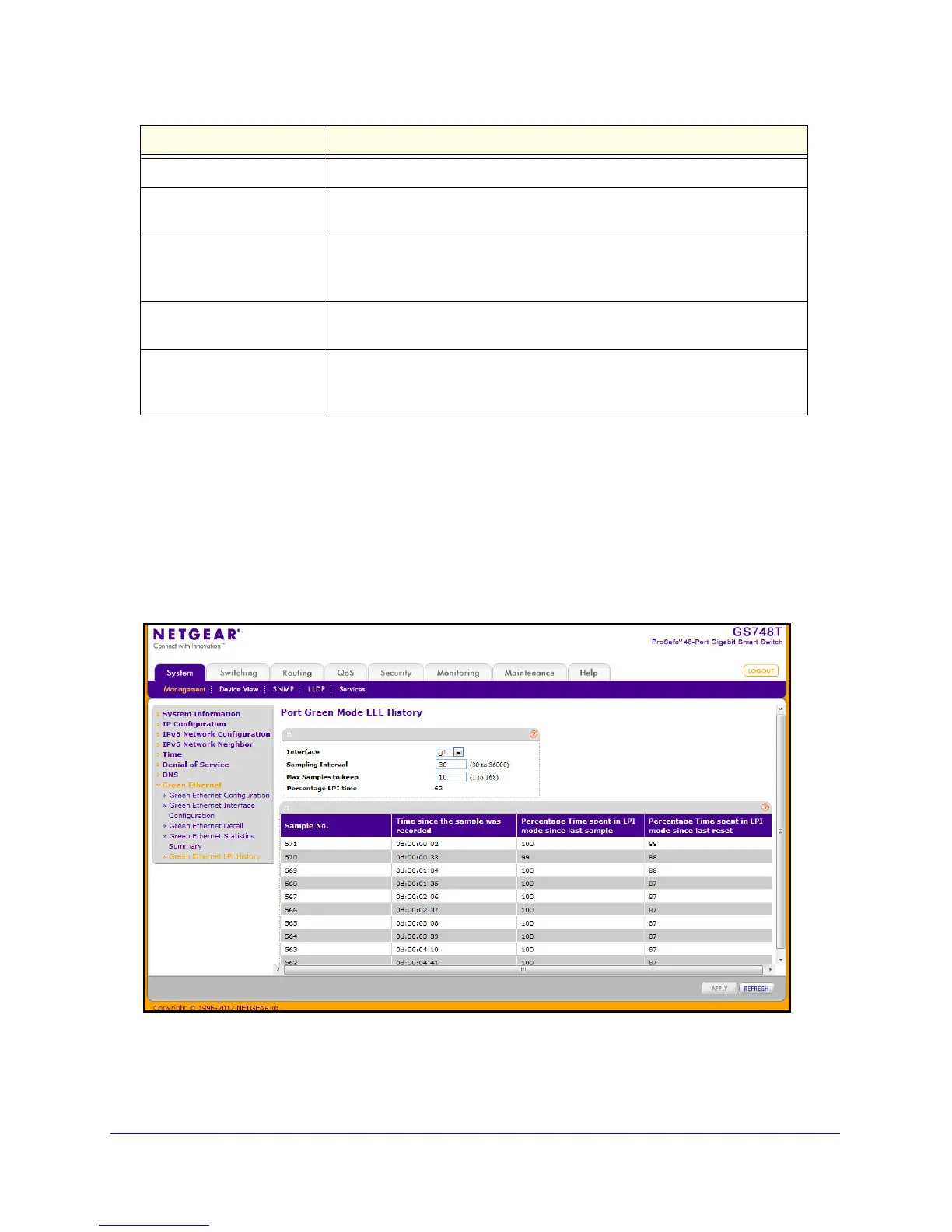

Green Ethernet LPI History
Use this page to set the sampling interval for EEE LPI data and to specify the number of
samples to keep. From this page, you can also view per-port EEE LPI data.
To access this page, click Syst
em  Management  Green Ethernet  Green Ethernet LPI
History.
You do not need to select a port to configure the LPI sampling interval and maximum number
of samples to keep. These settings are global, and the values you specify are applied to all
ports. To configure the LPI settings for the switch:
Energy Detect Admin Mode Shows whether Energy Detect Mode is administratively enabled on the port.
Energy Detect Operational
S
tatus
Shows the current operational status of the Green Mode for the selected
port.
Short Reach Admin Mode Shows the administrative status of Short Reach Mode on the port. With short
reach mode enabled, PHY goes into low power mode when cable length is
less than a given limit.
Short Reach Operational
S
tatus
Indicates whether the port is in low-power mode due to the cable length.
EEE Admin Mode
Shows the administrative status of Energy Efficient Ethernet Mode on the
port. With EEE mode enabled, the port transitions to low power mode during
link idle condition.
Field Description

NETGEAR GS748T Specifications

General

Basic switching RJ-45 Ethernet ports quantity	48
MAC address table	16000 entries
Packet buffer memory	1.632 MB
Maximum data transfer rate	1 Gbit/s
Latency	20 µs
I/O ports	48 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports) 4 SFP slots for fiber Gigabit Ethernet modules
Dimensions (WxDxH)	440 x 260 x 43 mm
Power requirements	100-240VAC 50/60 Hz
Networking features	10BASE-T, 100BASE-TX, 1000BASE-T
Connectivity technology	Wired
Full duplex	Yes
Networking standards	IEEE 802.3x
Minimum system requirements	Category 5 network cables Network card for each PC Network software (e.g., Windows)
Mean time between failures (MTBF)	69930 h
Safety	UL listed (UL 1950)/cUL, IEC950/EN60950
LED indicators	Link, Power
Power consumption (typical)	70 W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	4000 g
