150 | Chapter 10. ACLs
ProSafe 7000 Managed Switch Release 8.0.3

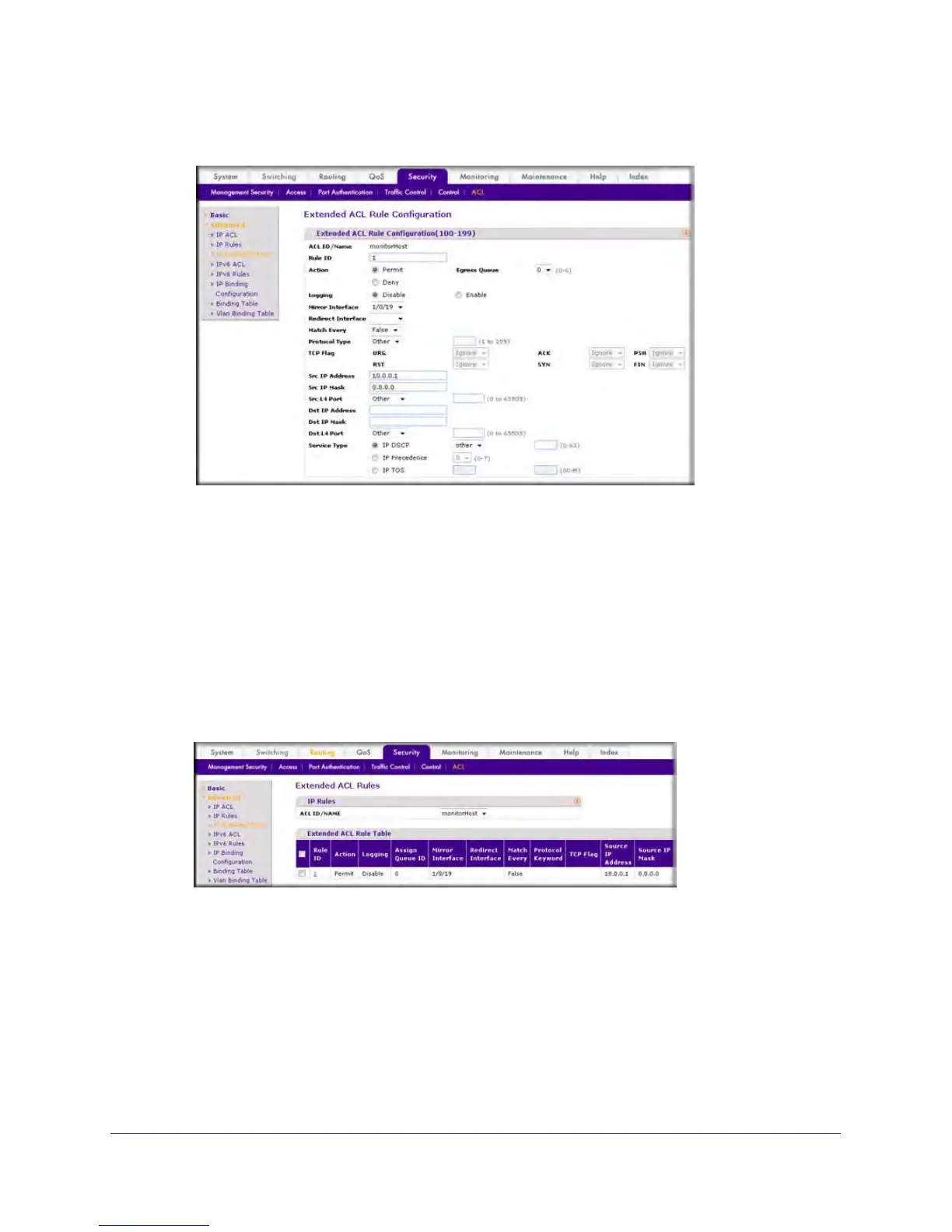

b. Click Add, and the Extended ACL Rule Configuration screen displays.
c. In the Rule ID field, enter 1.
d. For Action, select the Permit radio button.
e. In the Mirror Interface list, select 1/0/19.
f. In the Src IP Address field, enter 10.0.0.1.
g. In the Src IP Mask field, enter 0.0.0.0.
h. Click Apply.
3. Create a rule to match every other traffic.
a. Select Security > ACL > Advanced > IP Extended Rules. A screen similar to the
following displays.
To Next Page
