Chapter 10. ACLs | 151
ProSafe 7000 Managed Switch Release 8.0.3

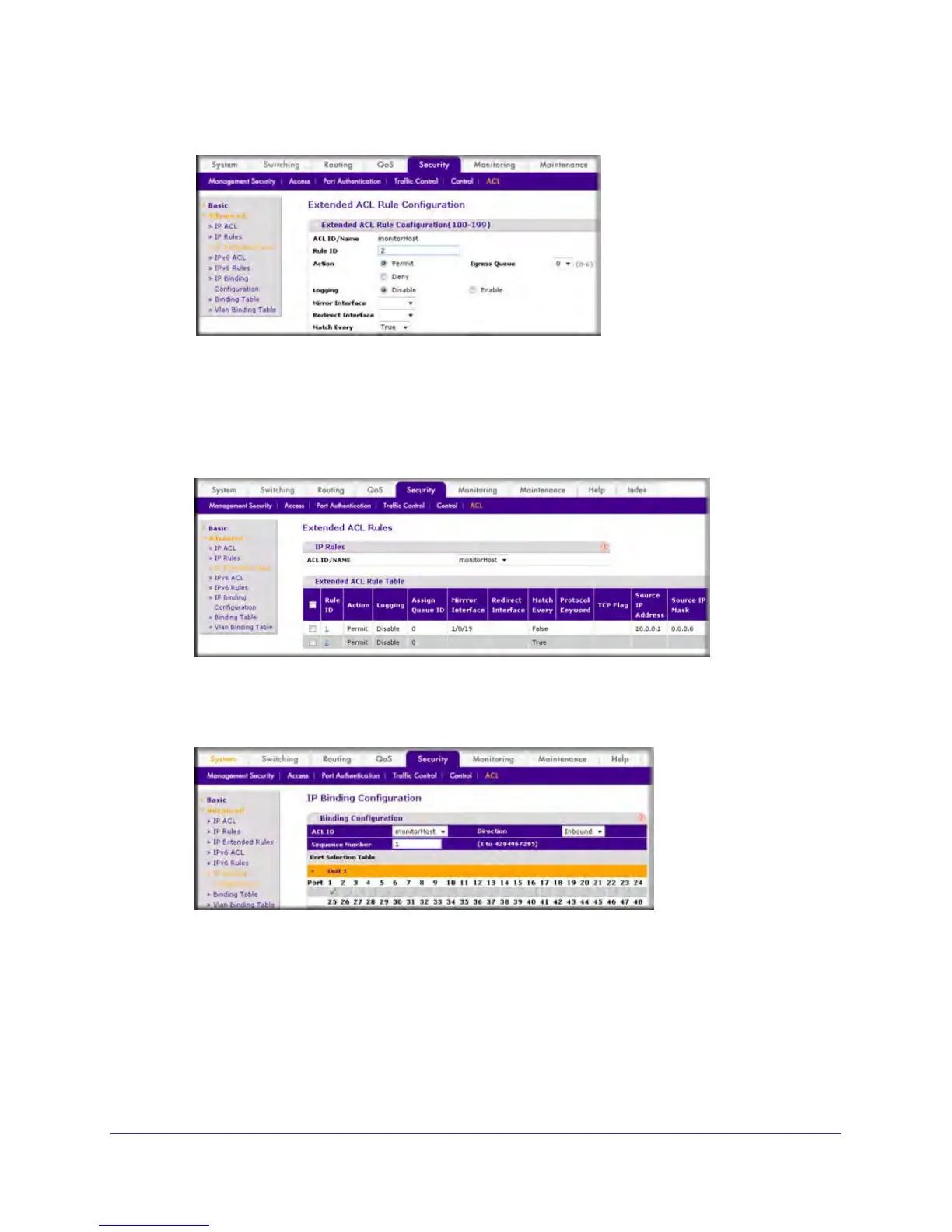

b. Click Add, and a screen similar to the following displays.
c. In the Rule ID field, enter 2.
d. Select the Permit radio button.
e. In the Match Every field, select True.
f. Click Apply. At the end of this configuration a screen similar to the following
displays.
4. Bind the ACL withinterface 1/0/1.
a. Select Security > ACL > Advanced > IP Binding Configuration. A screen similar to
the following displays.
b. In the Sequence Number field, enter 1.
c. In the Port Selection Table, click Unit 1 to display all the ports for the device.
d. Select the Port 1 check box.
