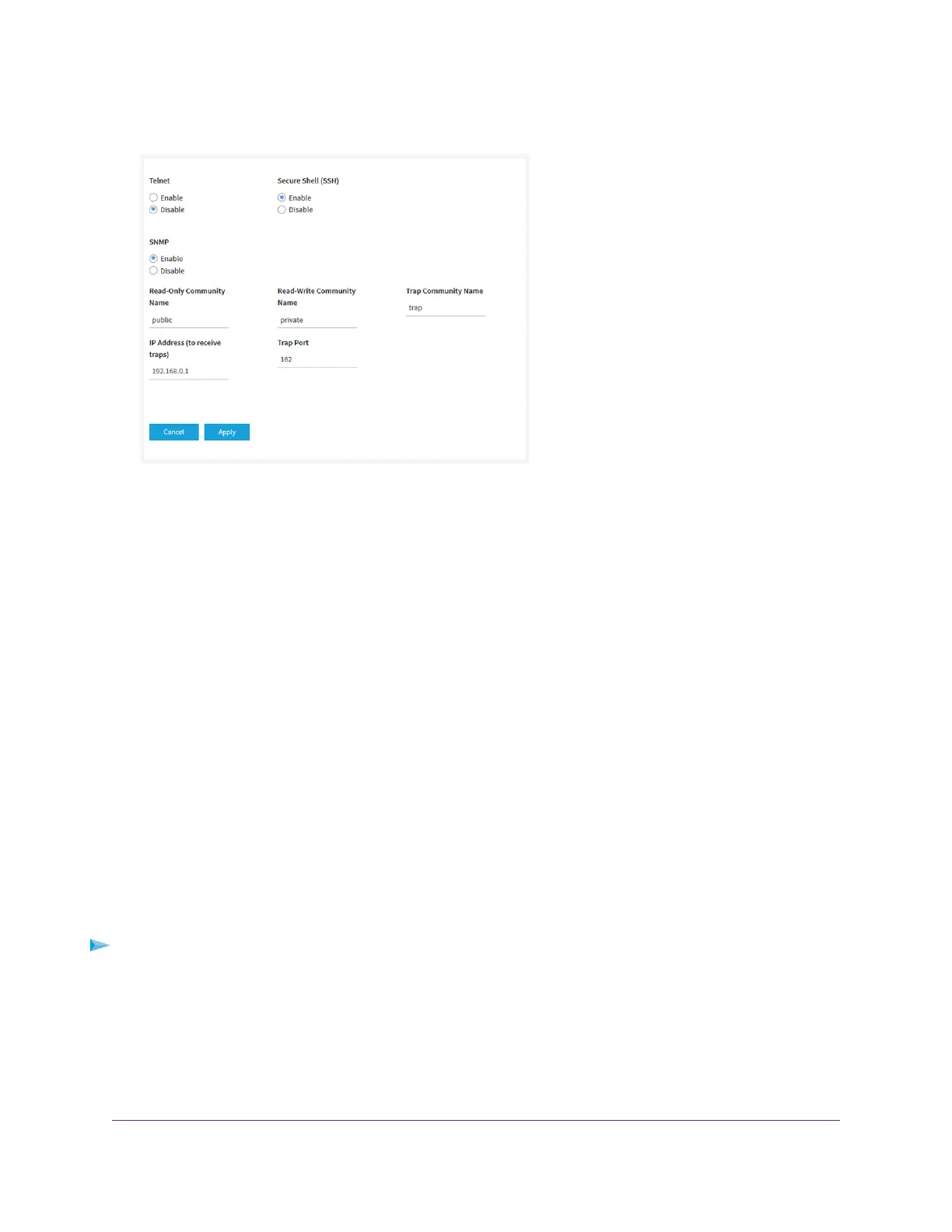

By default, SNMP is disabled.
6. Specify the following settings:
Read-Only Community Name. The community string that allows the SNMP manager to read the
access point’s MIB objects.The default is public.
Read-Write Community Name.The community string that allows the SNMP manager to read and
write the access point’s MIB objects.The default is private.
Trap Community Name.The community name that is associated with the IP address at which
traps must be received. The default is trap.
IP address (to receive traps).The IP address of the SNMP manager that must receive the traps.
Trap Port.The port number at which the SNMP manager must receive traps.The default is 162.
7. Click the Apply button.
Your settings are saved.
Manage the LEDs
By default, all LEDs are enabled and function as described in Top Panel With LEDs on page 8.You can
manage whether the LEDs light at all.This function is useful if the access point must function in a dark
environment.
To enable or disable the LEDs:
1. Open a web browser from a computer that is connected to the same network as the access point or to
the access point directly through an Ethernet cable or WiFi connection.
2. Enter the IP address that is assigned to the access point.
A login window opens.
3. Enter the access point user name and password.
Manage and Maintain the Access Point
108
Insight Managed Smart Cloud Wireless Access Point WAC505 User Manual

Table of Contents

Other manuals for NETGEAR WAC505

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR WAC505 and is the answer not in the manual?

NETGEAR WAC505 Specifications

General IconGeneral
2.4 GHzYes
Networking standardsIEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates10, 100, 1000 Mbit/s
Maximum data transfer rate1167 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Output current2.5 A
Output voltage12 V
USB 2.0 ports quantity0
Ethernet LAN (RJ-45) ports1
InternalNo
PlacementCeiling, Wall
Product colorWhite
Security algorithms802.1x RADIUS, EAP, EAP-TLS, PEAP, TTLS, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) featuresSSID broadcast on/off
Antenna gain level (max)4 dBi
Weight and Dimensions IconWeight and Dimensions
Depth165 mm
Width175 mm
Height35 mm
Weight256 g
