NETGEAR WAC505 User Manual

• State.The QoS state of the connection.
• Type. The type of WiFi security that is used for the connection.
• Device Type. The type of device that the client is.
• Mode.The WiFi mode of the connection.
• Status.The security status of the connection.
• Idle Time. The time that the client remained idle.
• Assoc Time Stamp. The time that is associated with the information on the Detailed Client
Information page.
12. To display the most recent information, click the Refresh button.
View WiFi and Ethernet Traffic,Traffic Statistics, and
Channel Utilization
To view WiFi and Ethernet traffic, traffic statistics, and channel utilization:
1. Open a web browser from a computer that is connected to the same network as the access point or to
the access point directly through an Ethernet cable or WiFi connection.
2. Enter the IP address that is assigned to the access point.
A login window opens.
3. Enter the access point user name and password.
The default user name is admin. The password is the one that you specified the first time that you
logged in.The user name and password are case-sensitive.
The Dashboard page displays.

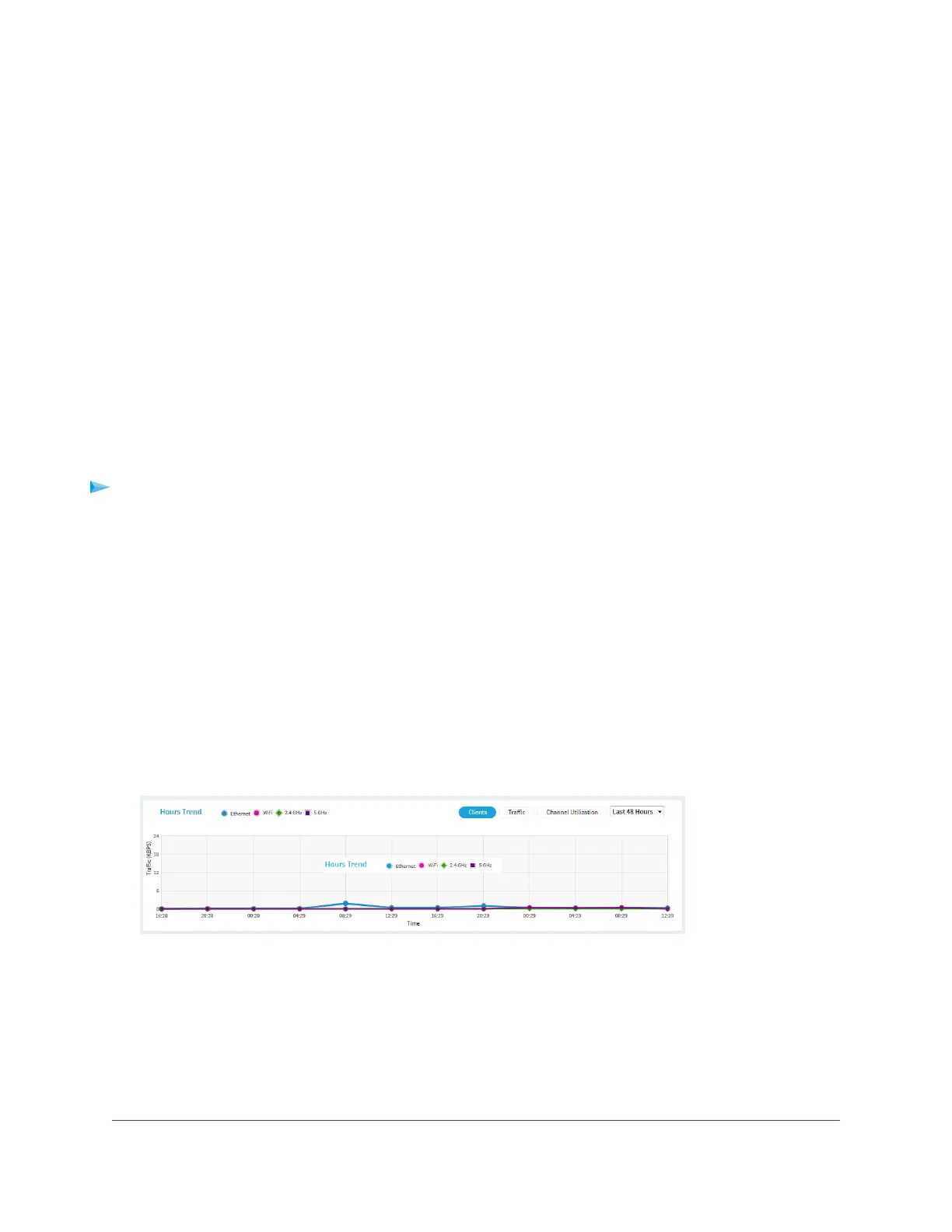

4. Scroll down to the Hours Trend pane at the bottom of the Dashboard page.
By default, the Clients button is selected.
5. To view traffic information, do the following:
a. Click the Traffic button.
The graph shows the information for Ethernet traffic, total WiFi traffic, WiFi traffic for the 2.4 GHz
radio, and WiFi traffic for the 5 GHz radio.
b. To view more information, point to a node on one of the lines on the graph.
6. To view channel utilization, do the following:
Monitor the Access Point and the Network
119
Insight Managed Smart Cloud Wireless Access Point WAC505 User Manual

NETGEAR WAC505 Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Output current	2.5 A
Output voltage	12 V
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Internal	No
Placement	Ceiling, Wall
Product color	White
Security algorithms	802.1x RADIUS, EAP, EAP-TLS, PEAP, TTLS, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna gain level (max)	4 dBi

Weight and Dimensions

Depth	165 mm
Width	175 mm
Height	35 mm
Weight	256 g
