View the Access Point Internet, IP, and System Settings
To view the access point, Internet, IP, and system settings:
1. Open a web browser from a computer that is connected to the same network as the access point or to
the access point directly through an Ethernet cable or WiFi connection.
2. Enter the IP address that is assigned to the access point.
A login window opens.
3. Enter the access point user name and password.
The default user name is admin. The password is the one that you specified the first time that you
logged in.The user name and password are case-sensitive.

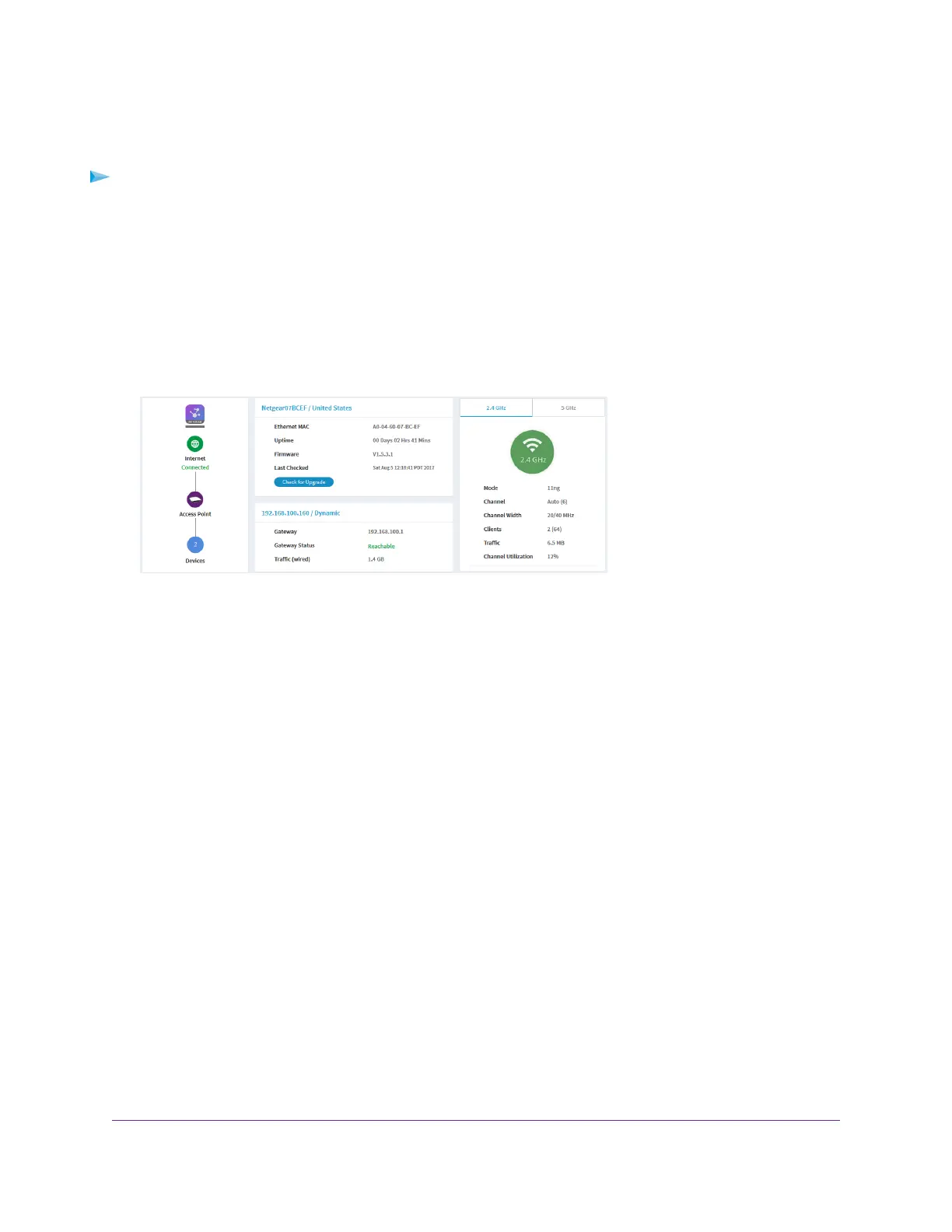

4. Look at the following panes:
Connection Status Information pane.The Connection Status Information pane is in the top, left
corner of the Dashboard (if the page width on your device is sufficient; otherwise, it might be
elsewhere) and displays the following:
- Status of the Insight app connection
- Status of the Internet connection
- Functioning mode of the access point, which is always Access Point
- Number of clients connected to the access point
System Information pane.The System Information pane is in the center at the top of the Dashboard
(if the page width on your device is sufficient; otherwise, it might be elsewhere) and displays the
following:
- System name of the access point and country or region of operation
- Ethernet MAC address
- Device uptime
- Firmware version
- The date and time that someone last checked if new firmware was available for the access point
Monitor the Access Point and the Network
111
Insight Managed Smart Cloud Wireless Access Point WAC505 User Manual
