NETGEAR WAC505 User Manual

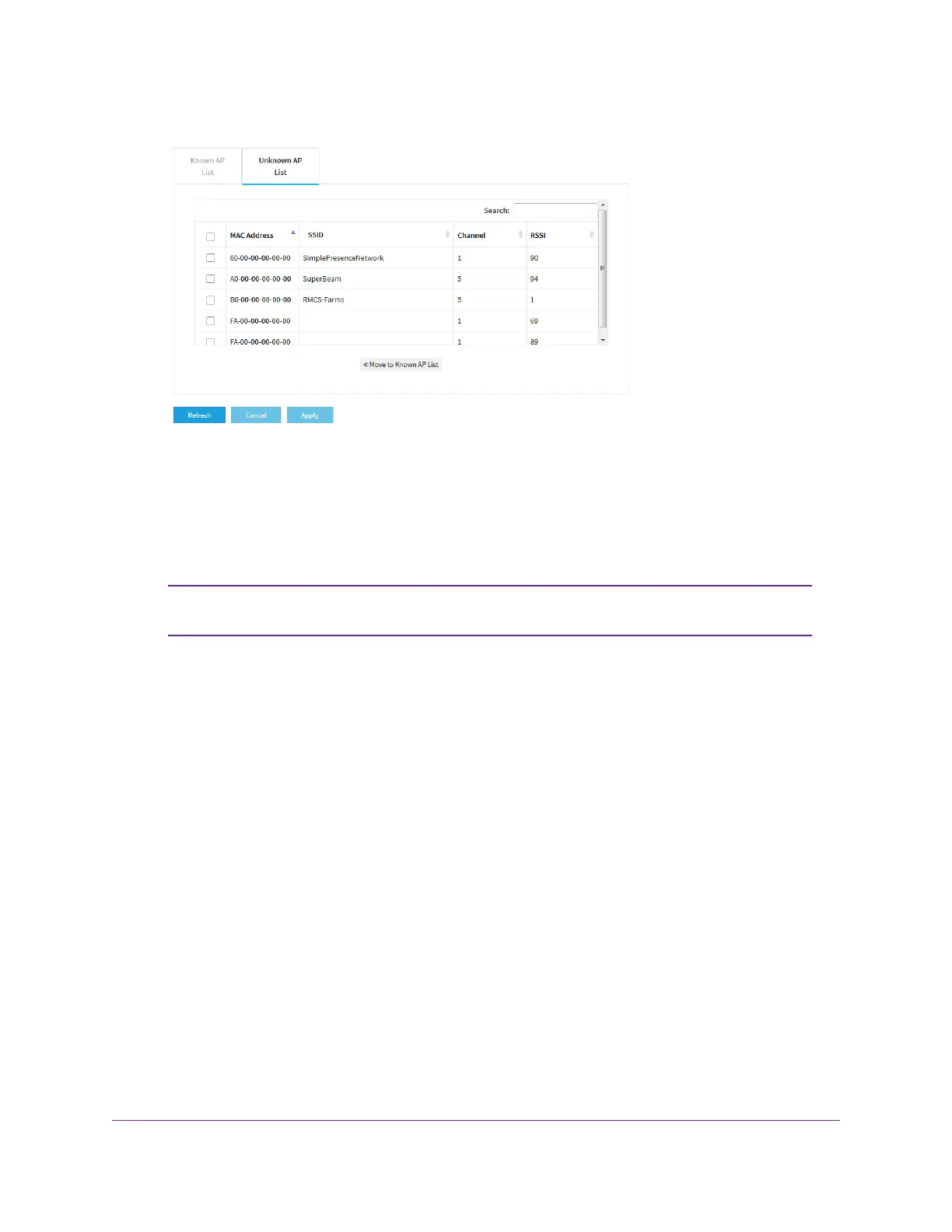

a. Click the Unknown AP List tab.
b. If no access points display, click the Refresh button.
c. Select the check boxes for the access points that you are familiar with.
d. Click the << Move to Known AP List button.
e. Click the Known AP List tab.
The selected access points display in the Known AP List.
You can delete access points from the Known AP List. After being detected, these
access points once more display in the Unknown AP List.
Note
10. Click the Apply button.
Your settings are saved.
Import an Existing Neighbor Access Point List in the Known
AP List
You can import a list with MAC addresses of known neighbor access points in the Known AP List.
The file with MAC addresses must be in the following format:
• Entries in the file must be MAC addresses only in hexadecimal format with each octet separated by a
hyphen, for example 00-11-22-33-44-55.
• You must separate entries with a comma.
• The file must be in text format (that is, with a .txt or .cfg extension).
For information about enabling neighbor AP detection, see Enable Neighbor Access Points Detection and
Move Access Points to the Known AP List on page 76.
Manage Access and Security
78
Insight Managed Smart Cloud Wireless Access Point WAC505 User Manual

NETGEAR WAC505 Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Output current	2.5 A
Output voltage	12 V
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Internal	No
Placement	Ceiling, Wall
Product color	White
Security algorithms	802.1x RADIUS, EAP, EAP-TLS, PEAP, TTLS, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna gain level (max)	4 dBi

Weight and Dimensions

Depth	165 mm
Width	175 mm
Height	35 mm
Weight	256 g
