NETGEAR WAC505 User Manual

To import a list with MAC addresses of known neighbor access points in the Known AP
List:
1. Open a web browser from a computer that is connected to the same network as the access point or to
the access point directly through an Ethernet cable or WiFi connection.
2. Enter the IP address that is assigned to the access point.
A login window opens.
3. Enter the access point user name and password.
The default user name is admin. The password is the one that you specified the first time that you
logged in.The user name and password are case-sensitive.
The Dashboard page displays.
4. Select Management > Configuration > Security > Neighbor AP.
The page that displays lets you select the radio band (2.4GHz or 5GHz).
5. Click the > button to the left of the radio band.
6. To download a sample of a MAC ACL in the format that is required for importing, click the Download
Sample link.

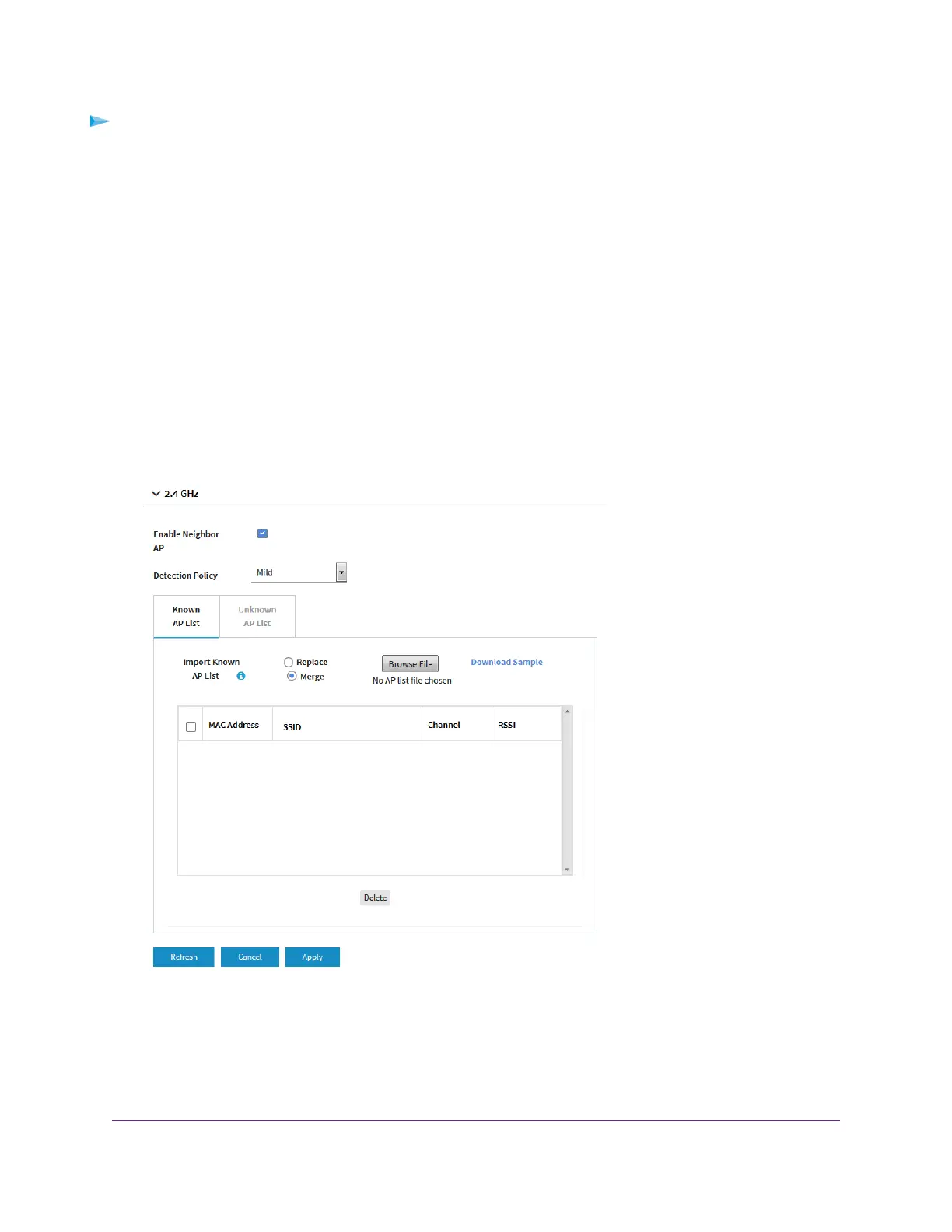

7. Import and compose the Known AP List in the following way:
Manage Access and Security
79
Insight Managed Smart Cloud Wireless Access Point WAC505 User Manual

NETGEAR WAC505 Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Output current	2.5 A
Output voltage	12 V
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Internal	No
Placement	Ceiling, Wall
Product color	White
Security algorithms	802.1x RADIUS, EAP, EAP-TLS, PEAP, TTLS, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna gain level (max)	4 dBi

Weight and Dimensions

Depth	165 mm
Width	175 mm
Height	35 mm
Weight	256 g
