and the graph shows the total number of clients for both radios and the number of clients for each radio
(2.4 GHz and 5 GHz).
8. To view more information, point to a node on one of the lines on the graph.
9. To change the period over which information is filtered and displayed, select the number of recent hours
from the menu to the right of the buttons.

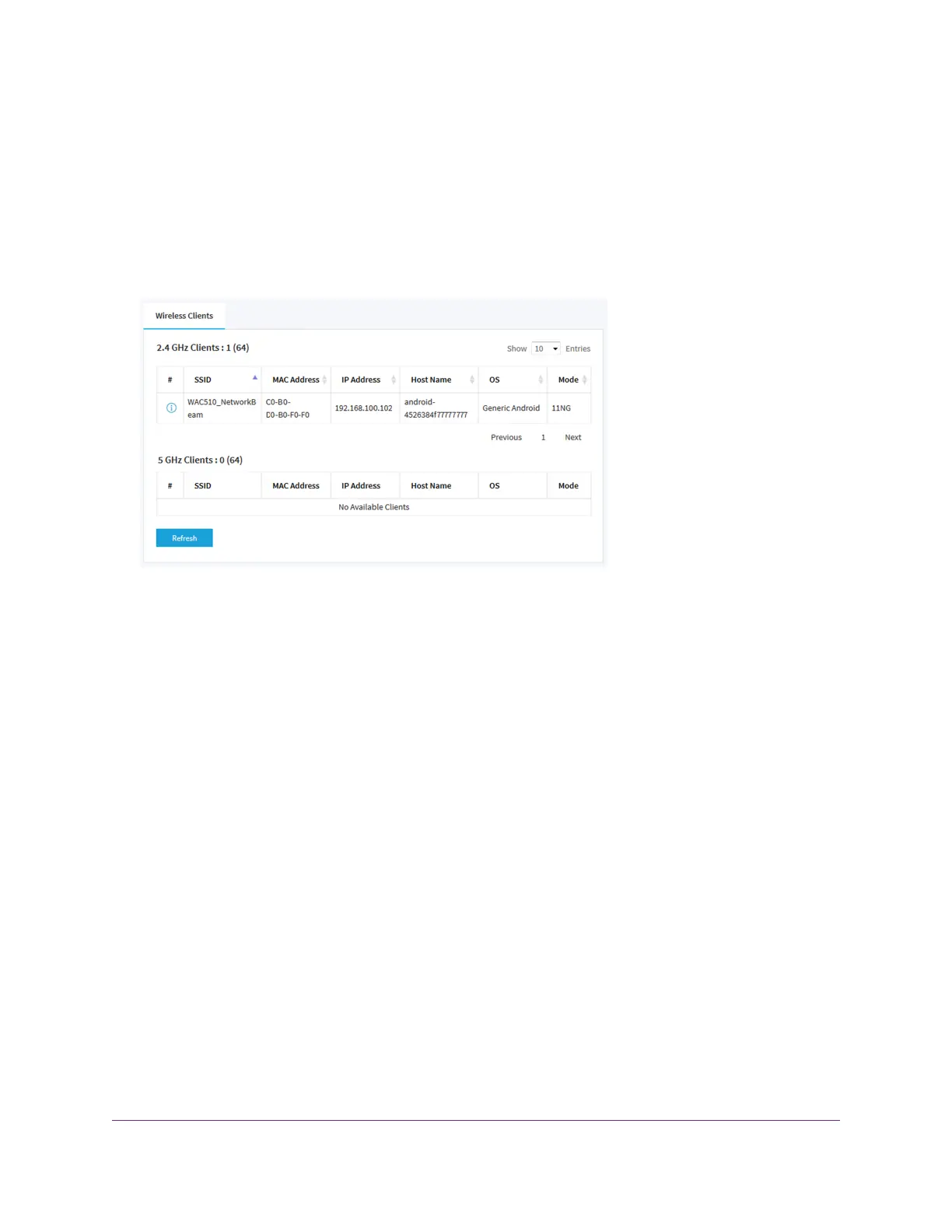

10. To view more information about currently connected WiFi, select Management > Monitoring >
Connected Clients.
For each radio, the page displays the number of connected clients and the maximum number of supported
clients.
For each radio and each WiFi client, the page displays the SSID, MAC address, IP address, host name,
operating system (OS), and WiFi mode.
11. To view very detailed information about a WiFi client, click the information icon to the left of the client.
The Detailed Client Information page displays and shows the following information:
• MAC Address.The MAC address of the client.
• IP Address.The IP address associated with the client.
• Host Name.The host name of the client.
• OS.The operating system that runs on the client.
• BSSID.The BSSID that the client connects to.
• SSID.The SSID of the radio that the client connects to.
• Channel.The channel that the client connects to.
• Channel Width. The width of the channel that the client connects to.
• Tx Rate.The rate of traffic transmission of the client.
• Rx Rate.The rate of traffic reception of the client.
• RSSI.The RSSI threshold value of the client.
• Tx Bytes.The number of bytes that the client transmitted.
• Rx Bytes.The number of bytes that the client received.
Monitor the Access Point and the Network
118
Insight Managed Smart Cloud Wireless Access Point WAC505 User Manual

NETGEAR WAC505 Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Output current	2.5 A
Output voltage	12 V
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Internal	No
Placement	Ceiling, Wall
Product color	White
Security algorithms	802.1x RADIUS, EAP, EAP-TLS, PEAP, TTLS, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna gain level (max)	4 dBi

Weight and Dimensions

Depth	165 mm
Width	175 mm
Height	35 mm
Weight	256 g
