MARTNA™ 10G NETWORK ACCESS (SMARTNA-X)
CREATING PORT MAPS | ABOUT PORT MAPS
DRAFT
An essential map arrangement when setting a live TAP is to link A and B ports so traffic is allowed to pass
upstream and downstream across the TAP. The map for this arrangement is shown in Figure 7-1 below.
Tapped packets can then be replicated via maps to other ports in the system, as shown in Figure 7-2.

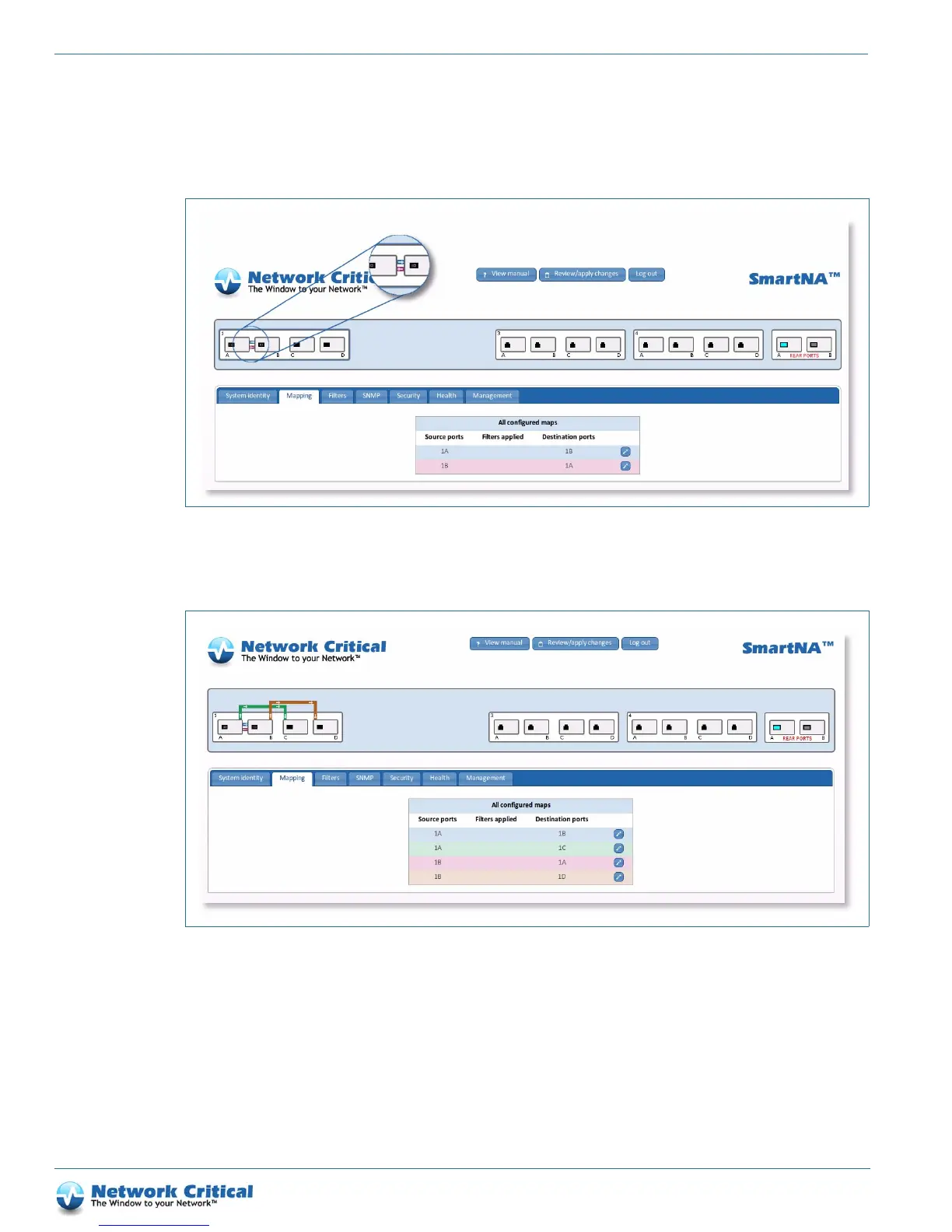

Figure 7-1 TAP map for ports 1A and 1B
Figure 7-2 TAP ports replicated to ports C and D
