3.5 EDH0162En1040 – 06/99
MM4005 Remote Mode

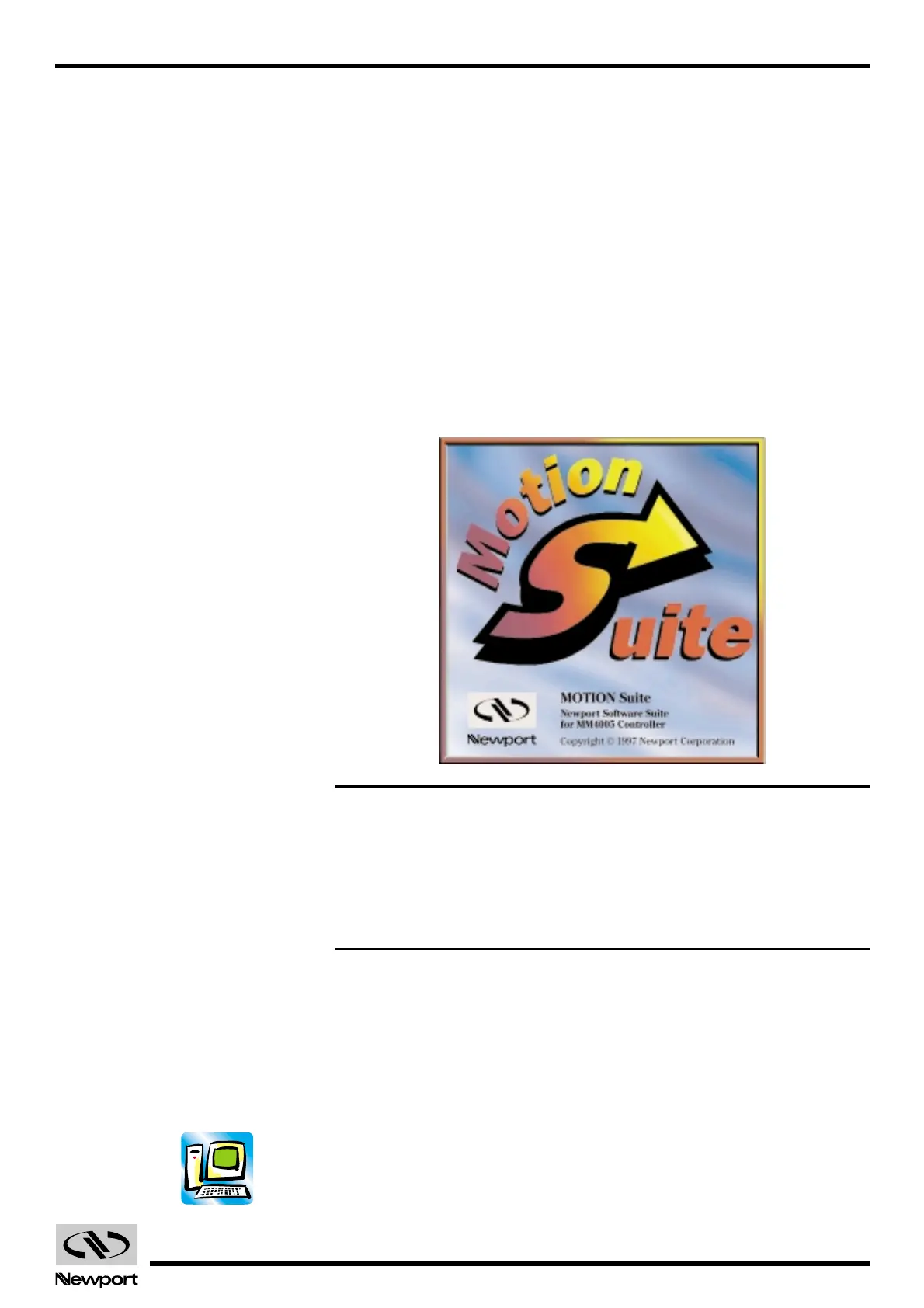

3.2.1 MOTION Suite
MOTION Suite software is a set of Windowsâ„¢ 3.1x programs that you can
install on a PC compatible computer with the following minimum configura-
tion:
• An IBM‚ Personal Computer or 100 percent compatible.
• A VGA monitor.
• An 80386 or later processor.
• 4 MB of available memory (8 MB recommended) for Windows™.
• A hard disk with enough disk space to install the options you need.
• A Windows™ 3.1x environment.
This software only accepts the following interfaces:
• COM1 or COM2 standard serial port.
• HP-IB Hewlett-Packard® board, model HPIB 82335.
• HP-IB Hewlett-Packard® board, model HPIB 82340.
• GPIB National Instrument® board, model AT-GPIB/TNT.
ATTENTION
Before uisng NEWPORT MOTION Suite software, IEEE-488 boards (listed
above) must be into the initial configuration of the constructor, and
installed in accordance with its recommended procedure.
Before uisng NEWPORT MOTION Suite software, we advise you to use
softwares utilities supplyed with the IEEE-488 board to check that the
installation is completed successfully.
MOTION Suite is a set of 4 softwares:
MOTION Suite Pro
• MOTION Term.
• MOTION Servo.
• MOTION Draw.
• MOTION Prog.
3.2.2 MOTION Term
MOTION Term is a Windowsâ„¢ 3.1x application which permits to communi-
cate with the Newport MM4005 Controller. It offers the possibility to
change communication configuration, and send commands to the con-
troller directly, or since a file or a file containing a MM4005 program.
