1.7 EDH0162En1040 06/99
MM4005 Introduction
General Description
The MM4005 is an advanced, stand-alone, integrated motion controller/dri-
ver. It can control and drive up to 4 axes of motion, in any stepper and DC
motor combination. The MM4005 controller/driver (also referred to in this
manual as the controller) was specifically designed to operate with
Newports broad line of motion devices. This way, it significantly increases
the user friendliness and raises the overall motion system performance.
Using other motion devices is possible but not recommended for optimal
system performance.
Fig. 1.1 shows a minimal system configuration. The MM4005 is used as a
stand-alone unit to control and drive a motion device. The only compo-
nents needed are a motion device, a connecting cable, the MM4005 and a
power cord.

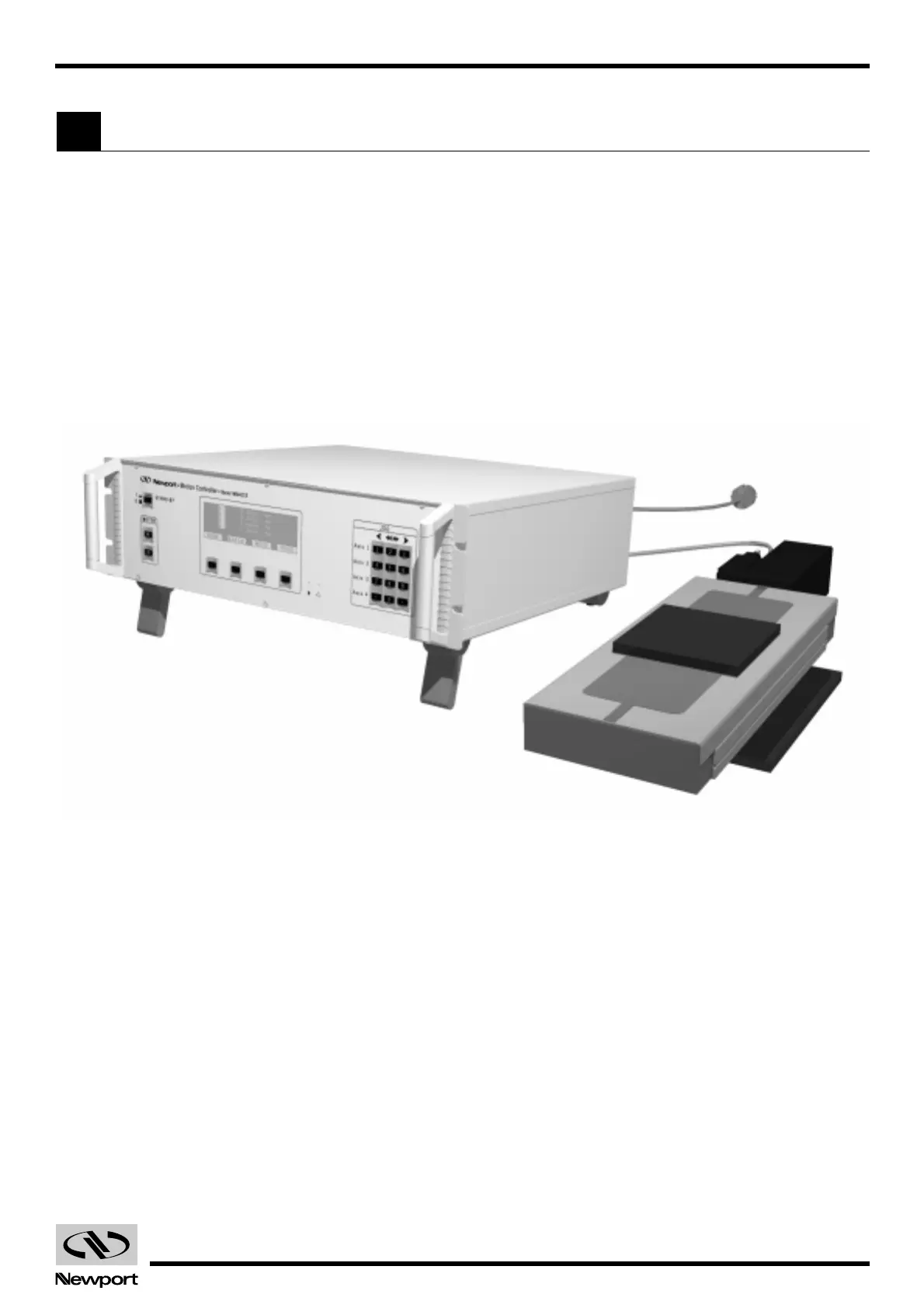

Fig. 1.1 — Minimal system configuration.
In this configuration all commands are received from the front panel.
Programs can be generated and executed without using an additional com-
puter.
1.3
