NewSonic SonoDur2 Issue 04 09/2016 Page 16
4 Power Supply
The SonoDur2 instrument is featured with an user exchange Lithium-Ion (Li-ion) rechargeable battery
pack (3.7V / 2600mAh). The battery pack can be charged in the instrument or external in the docking
station. The SONO-NG plug-in power supply unit can be connected to the USB plug connector in
order to supply power.
4.1 Power Supply Unit

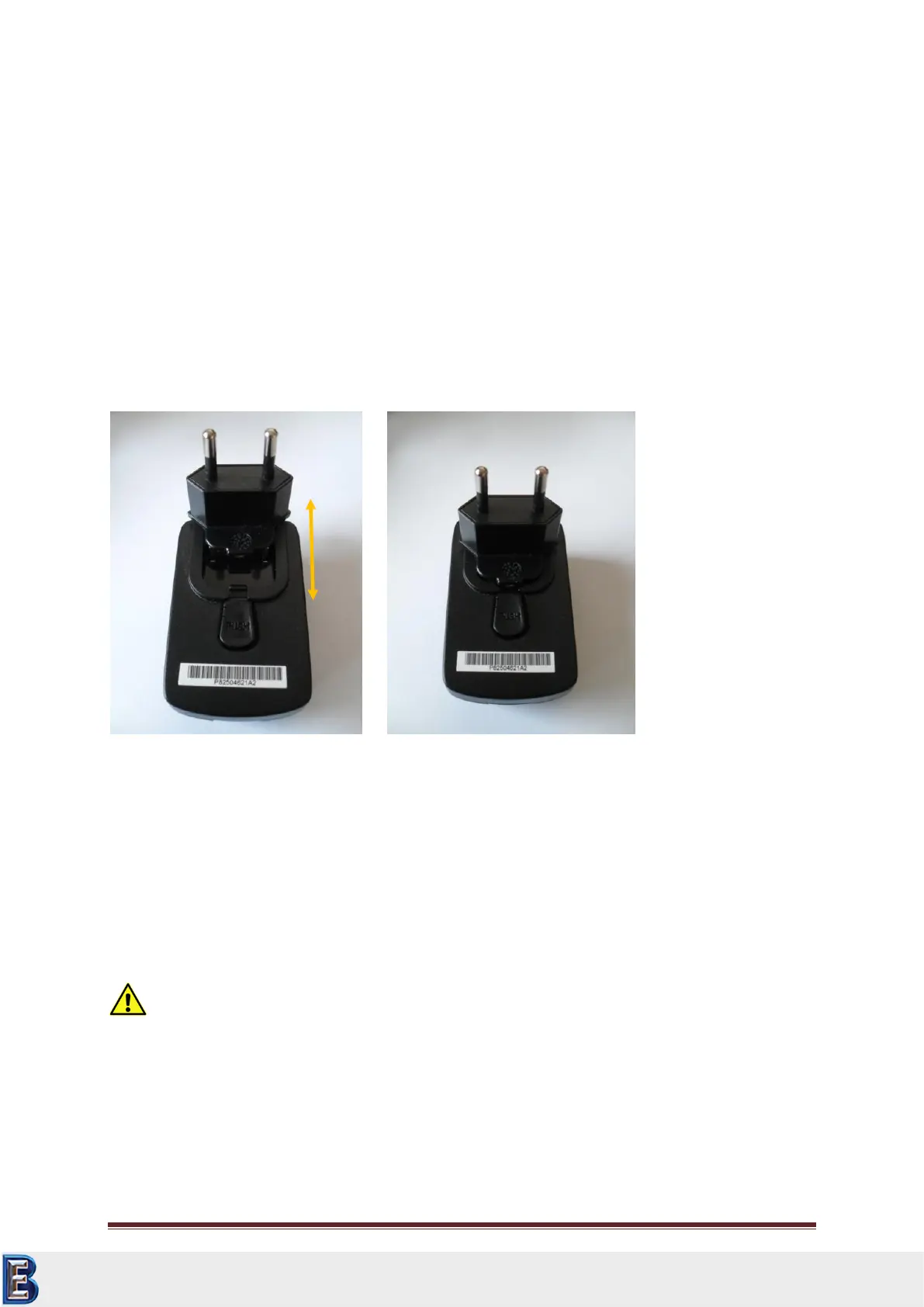

The SONO NG power supply unit automatically adapts itself to all alternating voltages between 90
and 264 VAC (50 /60 Hz). By default, the power supply unit is equipped with alternating voltage
adapter when delivered. However, you can simply replace it with a different one. (Please also see
Section Scope of Delivery and Accessories): In order to do this, press the unlock button (1) and
disconnect the adapter. Slide in the desired adapter into the indentation until it clicks.
Depending on the state of charge, the battery will be automatically charged when connected to the
power supply unit. You can let the power supply unit plugged in without any concern, even after the
batteries are fully charged, since overloading is out of question.
4.2 Exchange Battery Pack
Attention:
Please don’t remove the battery pack or try to take this PDA apart while the SonoDur2 is charging or
the instrument is powered on. These actions will result in some damages and may invalidate your
warranty!
