NewSonic SonoDur2 - Measurement Mode

NewSonic SonoDur2 Issue 04 09/2016 Page 41
Attention:
The dwell time is set to fixed value 0 seconds with hand-held measuring probes and can’t be
changed. Nevertheless please check this setting, otherwise false readings are possible.

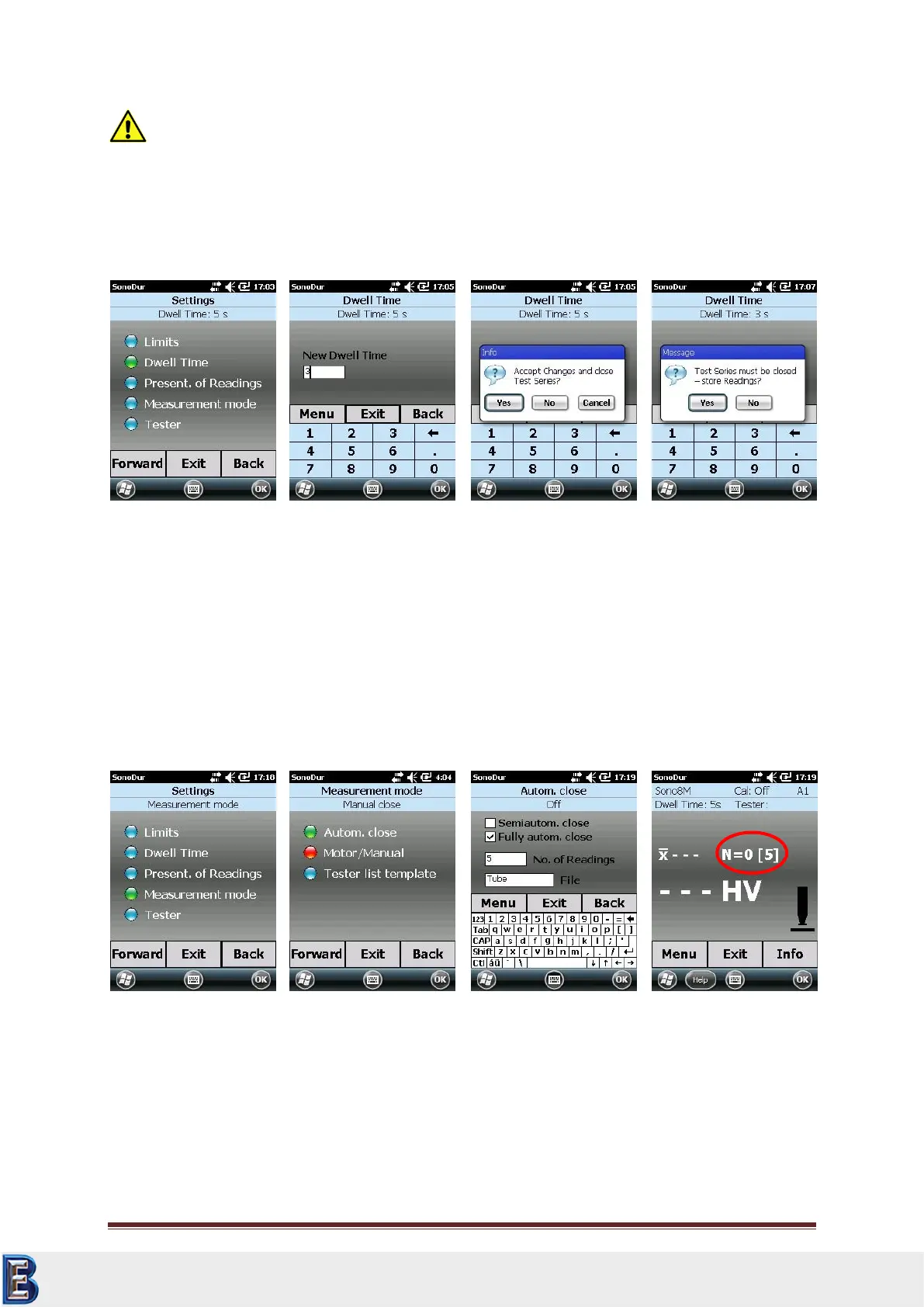

Setting of dwell time:
Figure 7.70
Figure 7.71
Figure 7.72
Figure 7.73
7.10.3 Measurement Mode
Selecting the operational mode for the motor driven probe (chapter 7.4.1, Carrying out of
Measurement by Means of Motorized Probes) or automatic data storage function (Figure 7.77,
available from software version 1.13 and higher). This is particularly beneficial in cases where many
measurements have to be taken on the same object on different test positions. The number of
desired measurements can be pre-defined (in this case 5) and is displayed in square brackets (Figure
7.77) in the measurement menu. If the counter N for the number of measurements equals the pre-
defined value in the square brackets, the actual measurement series will be stored automatically.
After the selection of the Measurement-mode and automatic close, the dialog for the settings of the
automatic save-function will open. The last used file name will be used with indexing (Index increases
+1, so that the already saved file will not be overwritten). This name can be changed.
The user can choose between the full- and half-automatic modes. Within the choice of the automatic
close-Mode, the current measuring row, after achievement of the number of measuring values, will
Figure 7.74
Figure 7.75
Figure 7.76
Figure 7.77
