NewSonic SonoDur2 Issue 04 09/2016 Page 42
be saved under the given file name (here Tube). After 5 other measurements in each case becomes
Tube_01, Tube_02 etc. saved.
To avoid overwriting of existing files, the file name (if already present) will be extended with an index
by +01, see example in the following:
Tube new Name, 1. Save
Tube_01 2. Save
Tube_02 3. Save
Tube_02_01 4. Save, Name Tube_02 is already listed!
Tube_02_02 5. Save
Tube_02_03 6. Save

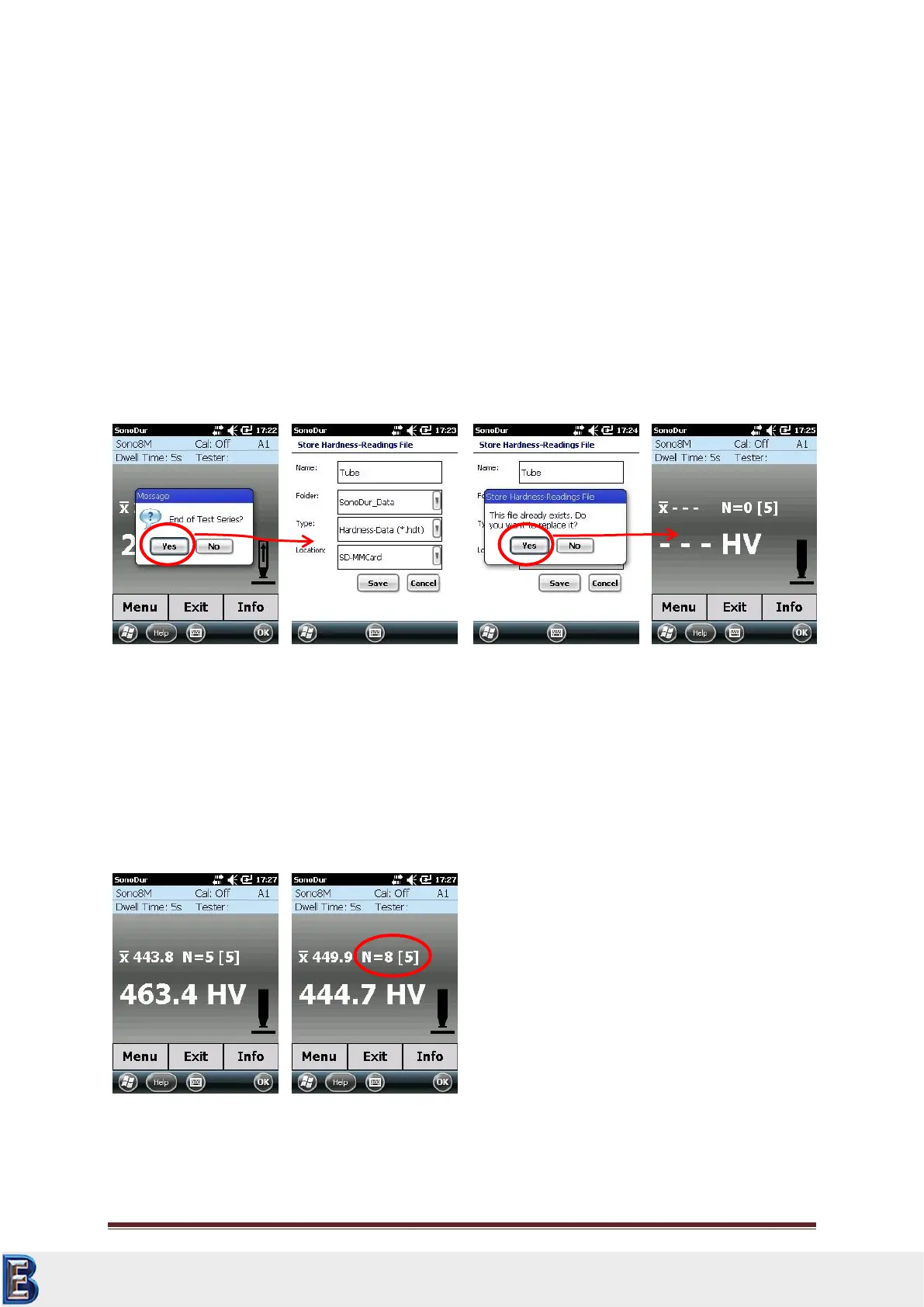

Within the choice of half-automatic-closure, the dialog for the storing process is opened, when you
reach the preset number of measurements:
If quering “Yes“ when beeing asked „End Test Series” (Figure 7. 75), the save file menu will pop up
(see chapter 7.11.1). If the file already exists, SonoDur asks if it should be replaced (Figure 7.77).
With “Yes”, the file will overwrite the existing one and jump back into the measuring menu. With
“No” another name can be chosen.
By confirmation the query “End Test Series” with “No”, the measuring row is continued and the
counter N for the measuring value number is increased with every measurement.
Figure 7.78
Figure 7.79
Figure 7.80
Figure 7.81
Figure 7.82
Figure7.83
