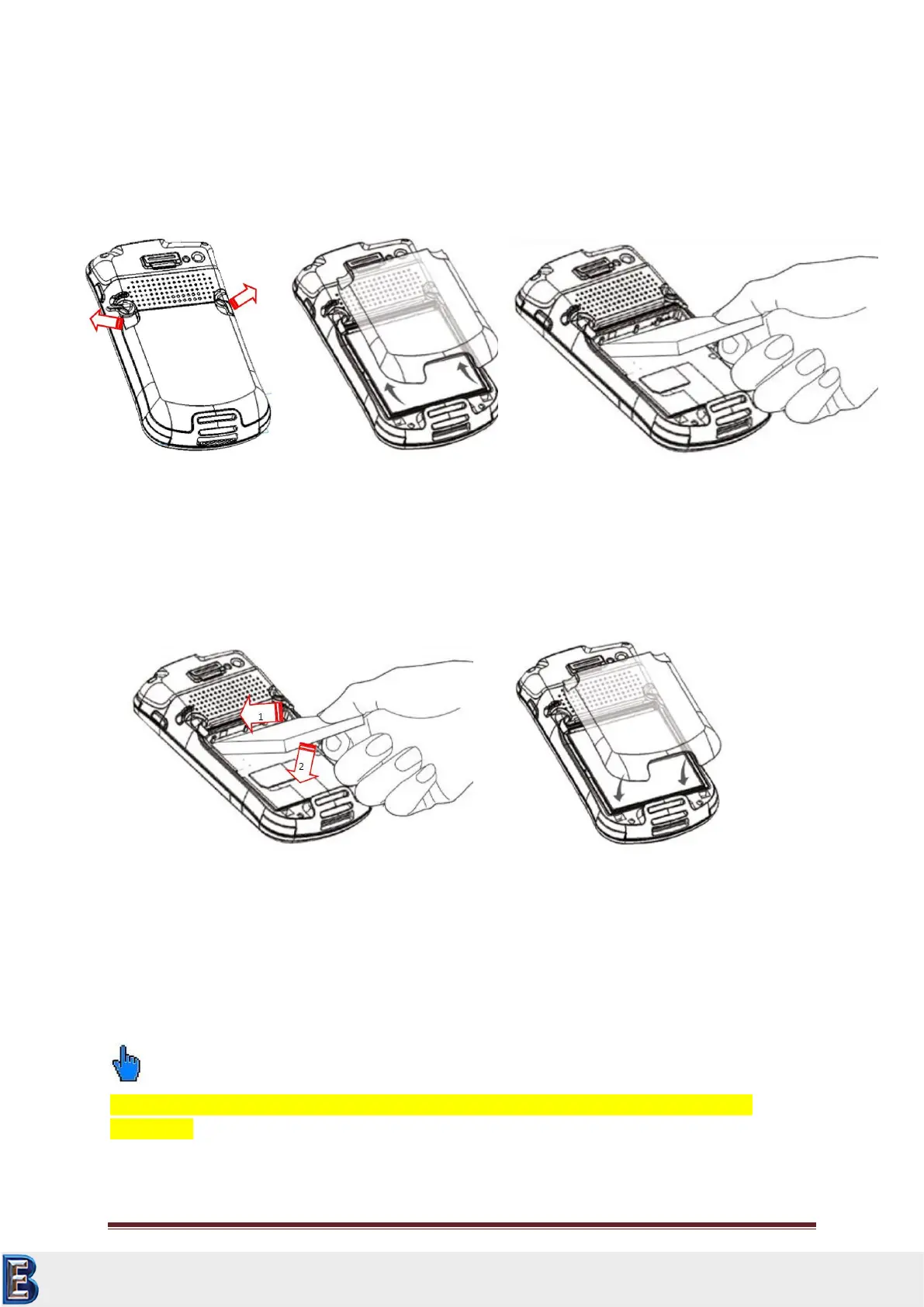

The battery pack can be easily exchanged by opening the rear battery cover. Please follow the
instructions given in pictures below.
Unlock the two quick fastener and lift the cover. Pull the plastic strip on the battery and remove it.
Re-insert the battery block by latching the bottom first and then pull it down. Mount the cover (make
sure the latches of the cover fit in the mounting holes) and lock the two quick fastener.
Figure 4.6
Figure 4.7
4.3 Charging
When charging, the tester must be connected to the SONO-NG power supply unit by means of the
SONO-USB power cable. Charging of a completely discharged accumulator to 80% capacity takes up
to 2 hour and up to 4 hours to 100% capacity when using the SONO-NG.
Please note:
Do not use any other USB-cables, because the plug may fit but will not make stable electrical
connection!
Figure 4.3
Figure 4.4
Figure 4.5
