NewSonic SonoDur2 Issue 04 09/2016 Page 73
Attention:
The switching sleeve of the special probe base (see right figure below) is differently designed than
the standard probe base and should therefore not be mixed up.

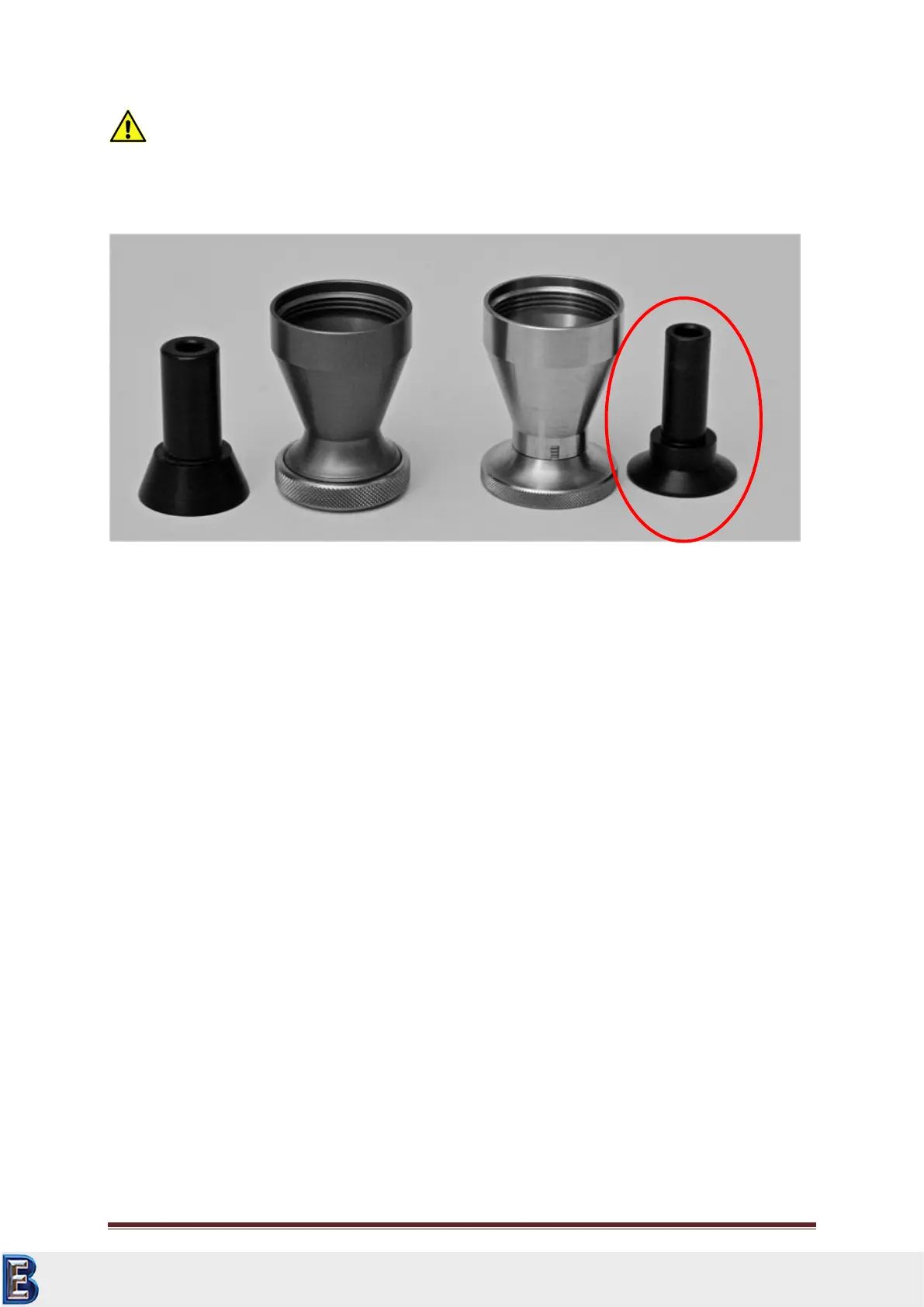

Figure 12.3 Standard probe base Special probe base
12.1.2 Handling
To start with, gently unscrew the standard probe base. Select the desired probe plate and screw it
into the special probe base by paying attention to the engraved spacer rings. These indicate the
possible diameter range for each test specimen, as shown in Table 1, which applies to all probe
plates. After screwing it onto the motorized measuring probe, the special probe base is ready to be
used for curved surfaces.
Just like when using the standard probe base, the operating mode can be selected to automatic
measuring via the switching sleeve or manual measuring without the switching sleeve. In order to do
that, the switching sleeve must be taken out of the special probe base. Triggering the initiation of
measurement cycle is now only possible by touching the probe symbol on the SonoDur2 screen,
which however, simplifies the exact positioning.
