NewSonic SonoDur2 - Page 74

NewSonic SonoDur2 Issue 04 09/2016 Page 74

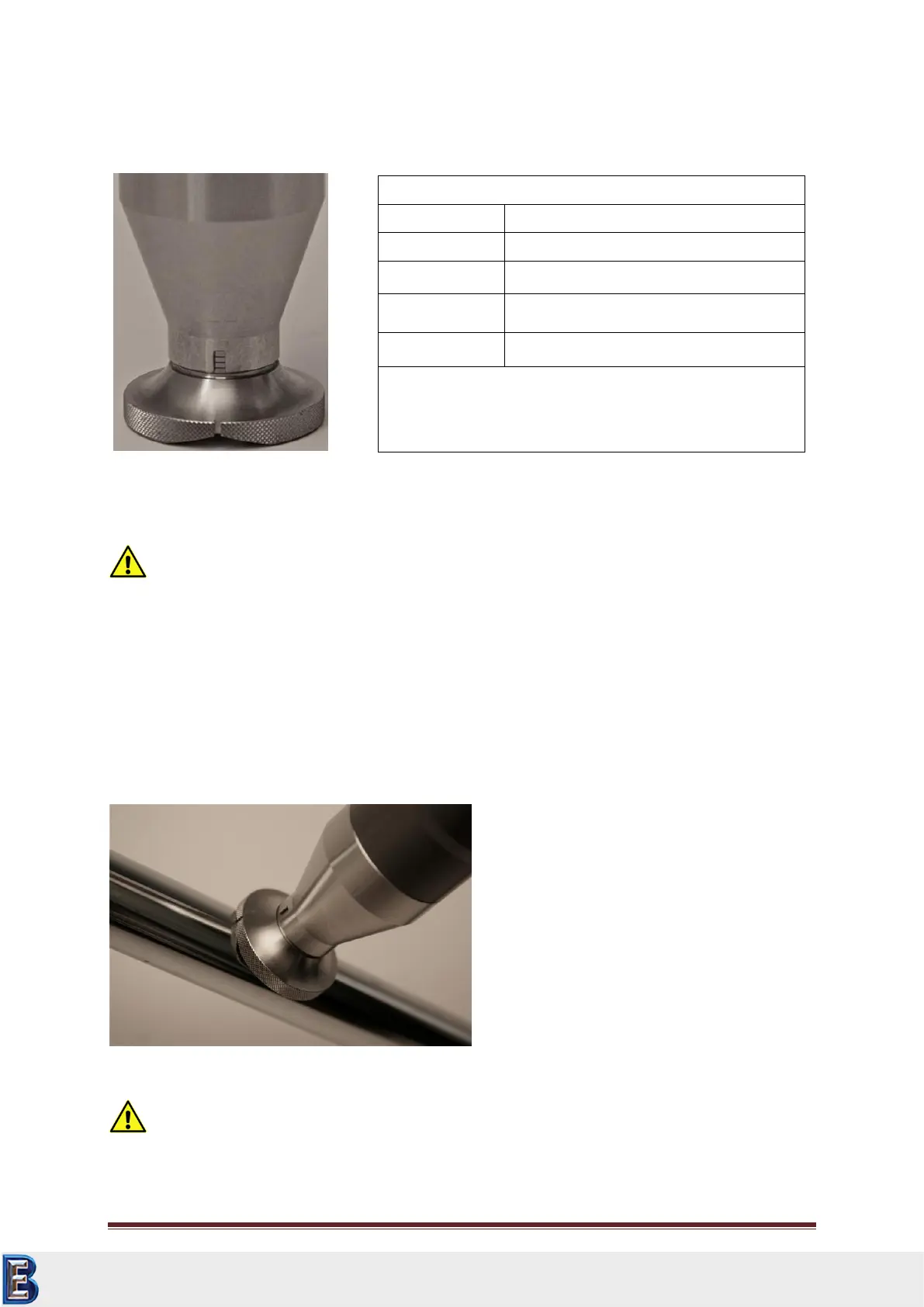

The probe plate for flat surfaces serves the same purpose as the standard probe base and permits
fast and simple switching between different probe plates.
Figure 12.4
Table 12-1
The spacer rings define the possible diameter range according to Table 12.1.
Attention:
Incorrect diameter setting causes that the motorized measuring probe spring force is either too low
or too high and thereby increases the risk of erroneous measurements. If the diameter is set
significantly too high, the Vickers diamond may possibly not reach the test object surface and an
error message will be issued. (Section 7.4.1 - Carrying out of Measurement by Means of Motorized
Probes).
Once the correct diameter adjustment has been made, carefully place the probe with the notch in
longitudinal direction of the cylindrical surface and wait for the measurement process.
Figure 12.5
Attention:
Please ensure that the measuring probe rests fully and is firmly tightened during the measurement
performance.
Ring
Possible Diameters
3 (top)
From 0 to 10 mm
2
From 10 to 50 mm
1
From 50 to 100 mm
0 (bottom)
From 100 until even
Measured each time for the ring on the vision reference
block of the probe base, located in opposite to the lower
rim of the probe base.
