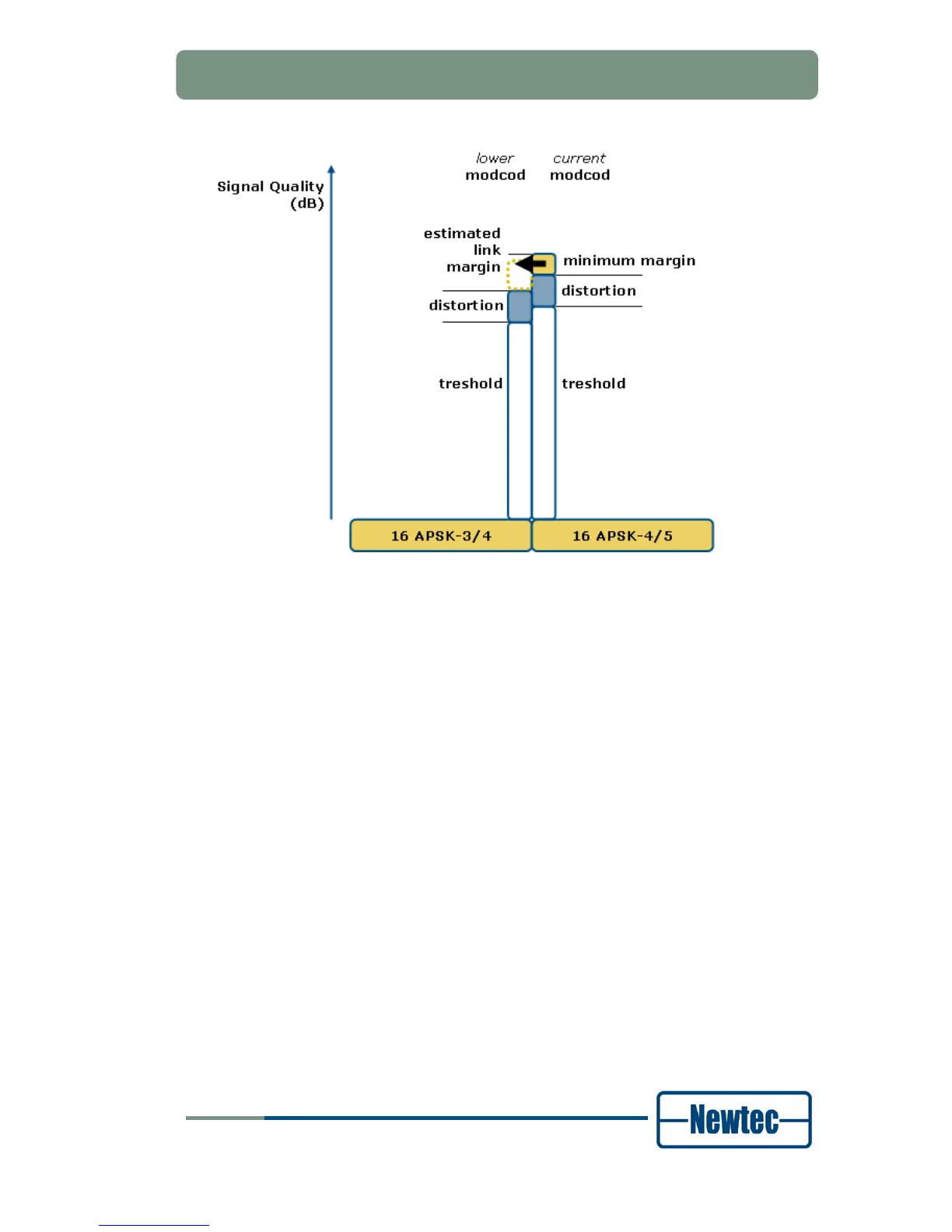

Figure 79 - Selecting a Lower ModCod Based on Estimated Link Margin
A lower ModCod is selected if the estimated link margin, marked in Figure 79 by
the dotted lines, is smaller than:
The sum, visualised in Figure 79 at the right hand side, of:
• The current ModCod threshold
• The current ModCod distortion
• The current ModCod minimum margin
Minus:
• The lower ModCod threshold
• The lower ModCod distortion
