APPENDIX B – SETUP WIZARD EXAMPLE
The following is an example of a configuration using the Setup Wizard.
 Click Misc. in the Function controls window.

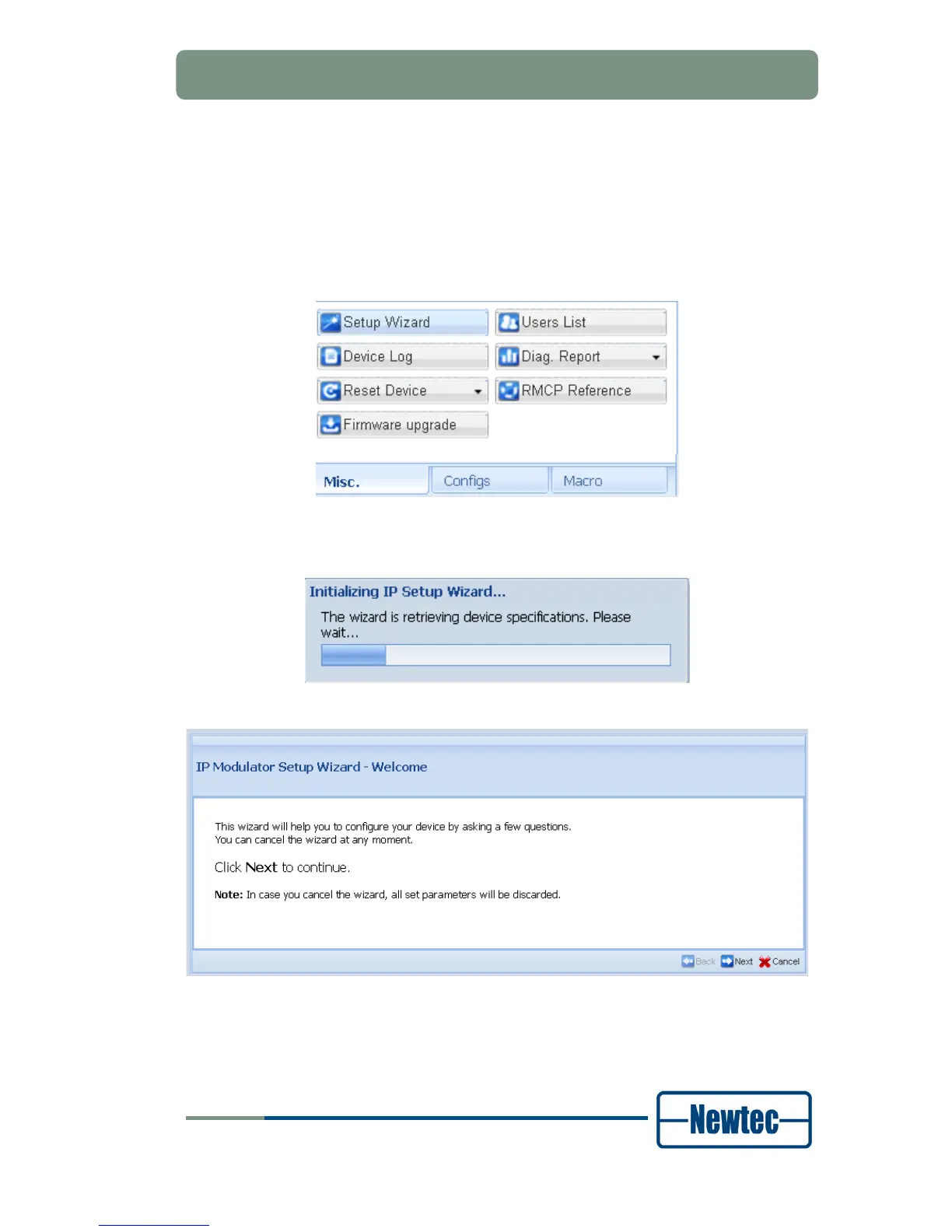

Figure 122 - Function Controls Window
 Click Setup Wizard
Figure 123 - Intializing Setup Wizard
Figure 124 - Wizard Welcome Screen
