5.2.2.2 For Example Change the Front Panel Screensaver
The front panel screensaver is useful to identify a number of units if you have more
than one unit.
You can activate the screensaver in the following menu:
 EL170/970/470 >>Unit>>Setup>>Display settings
• Enter the screensaver delay;
• Enter the screensaver message (for example Channel 01 Modem01).
Once the screensaver delay is reached without any key action on the front panel a
message is displayed as follows.
 EL470
 Channel 01 Modem 01
5.2.2.3 How to Log in as Expert
Proceed as follows to log in as Expert:
 Open the following menu on the front panel
 Unit >> Setup >> Device: Normal
 Press OK
 Normal <=Expert>
 Press OK
 Enter Password: ***
 Enter the number of the device
 Press OK to confirm.
5.2.3 LEDs
The LEDs provide a basic status of the device.
5.2.3.1 LEDs EL170 Modulator

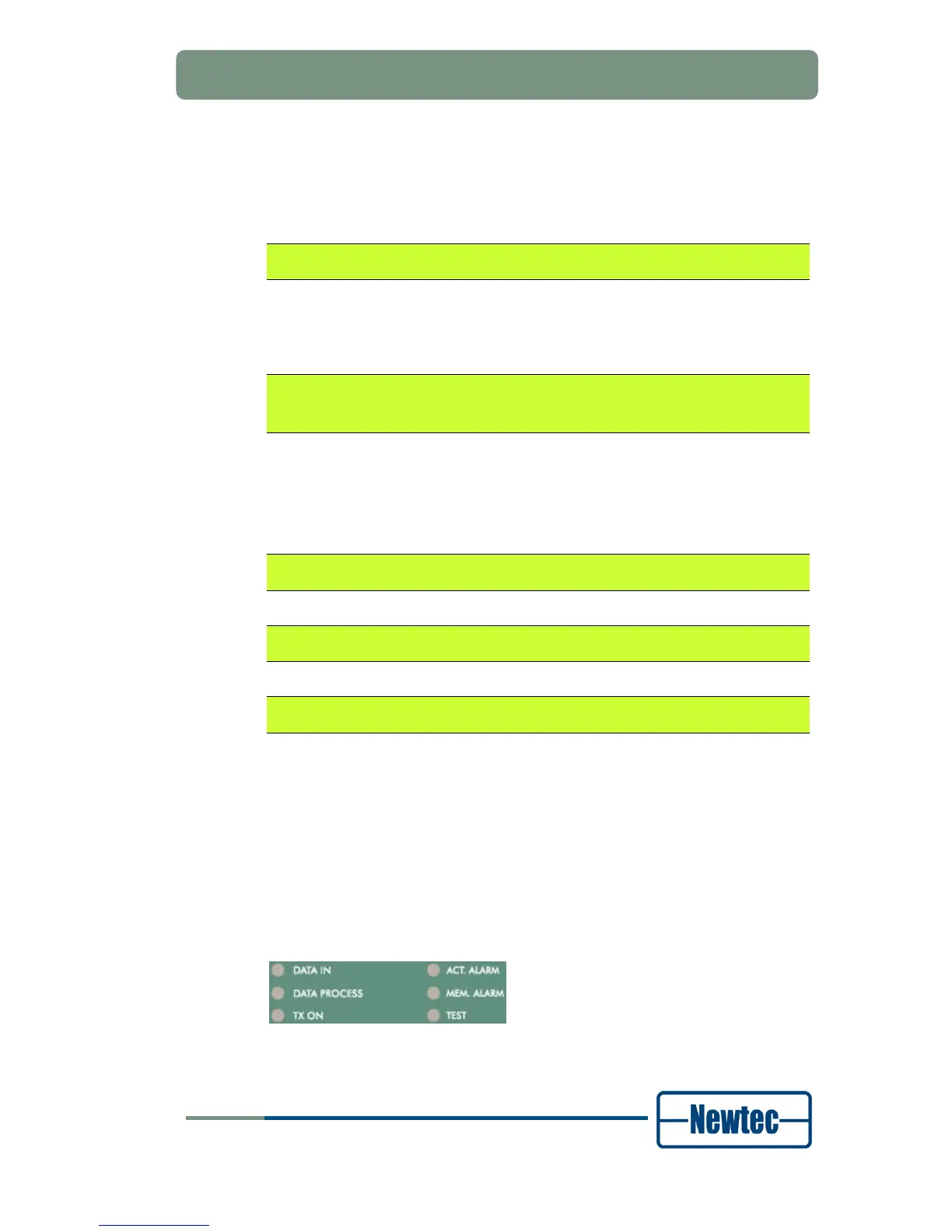

Figure 29 –Modulator LEDs
Data In: green At least 1 data input is active and valid
