Newtec EL170 - EL970 IP Satellite Demodulator Back Panel

Physical Description
User Manual for EL170/970/470 IP Satellite Modulator/
Demodulator/Modem
version 4.2
53
SHAPING THE FUTURE OF SATELLITE COMMUNICATIONS
4.2.4 EL970 IP Satellite Demodulator Back Panel
The figure below shows the possible connections on the demodulator. The back
panel connections available depend on the specific hardware configuration of your
device and will differ from the back panels in the figures below. Only a subset of
the shown connections will be available on your device.

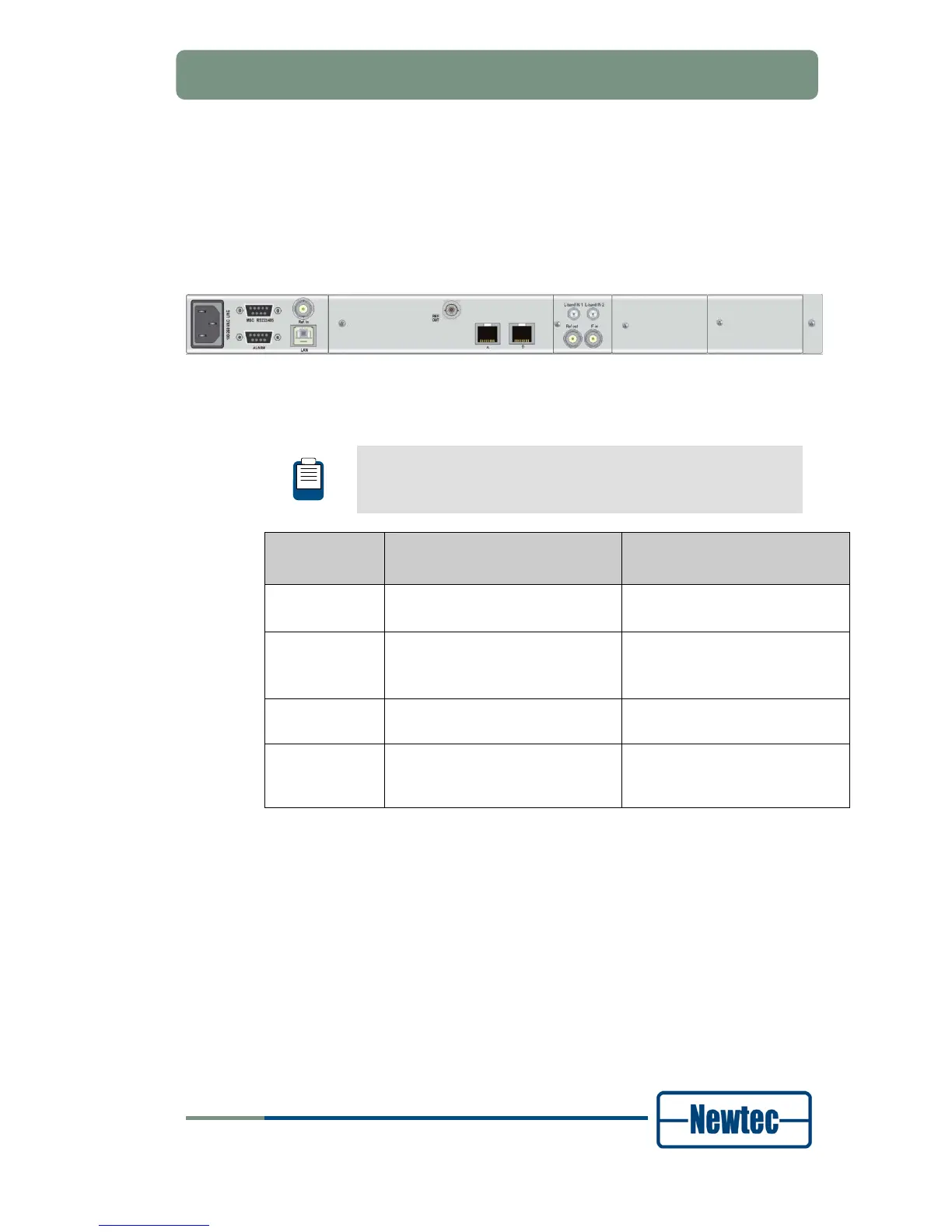

Figure 23 - EL970 IP Satellite Demodulator Back Panel
The sub back panels used per ordering option is listed in the following table.
We refer to page ’xv‘for ordering information.
We refer to section 4.2.2 for the description of the different sub
back panels.
Option Back Panel Combination
Not Used Connectors
BP-<number>/<connector>
Default BP 01
BP 03
BP 01/2,3,4
BP 03/4
AJ-02 BP 01
BP 03
BP 07
BP 01/2,3,4
BP 03/4
BP 07/5
AJ-03 BP 01
BP 04
BP 01/2,3,4
AJ-04 BP 01
BP 04
BP 07
BP 01/2,3,4
BP07/5
