4.2.2 Sub Back Panel Descriptions
In this section the optional back panels for the devices are listed. Depending on the
hardware that is ordered a combination of these sub back panels are used.
The different combinations per ordering option is described in the following
sections we refer to:
• Section 4.2.3for EL 170;
• Section 4.2.4 for EL 970;
• Section 4.2.5 for EL 470.
1. REF OUT is used for option GR01 or GR02.
2. Connector two of back panel 01 is never used.

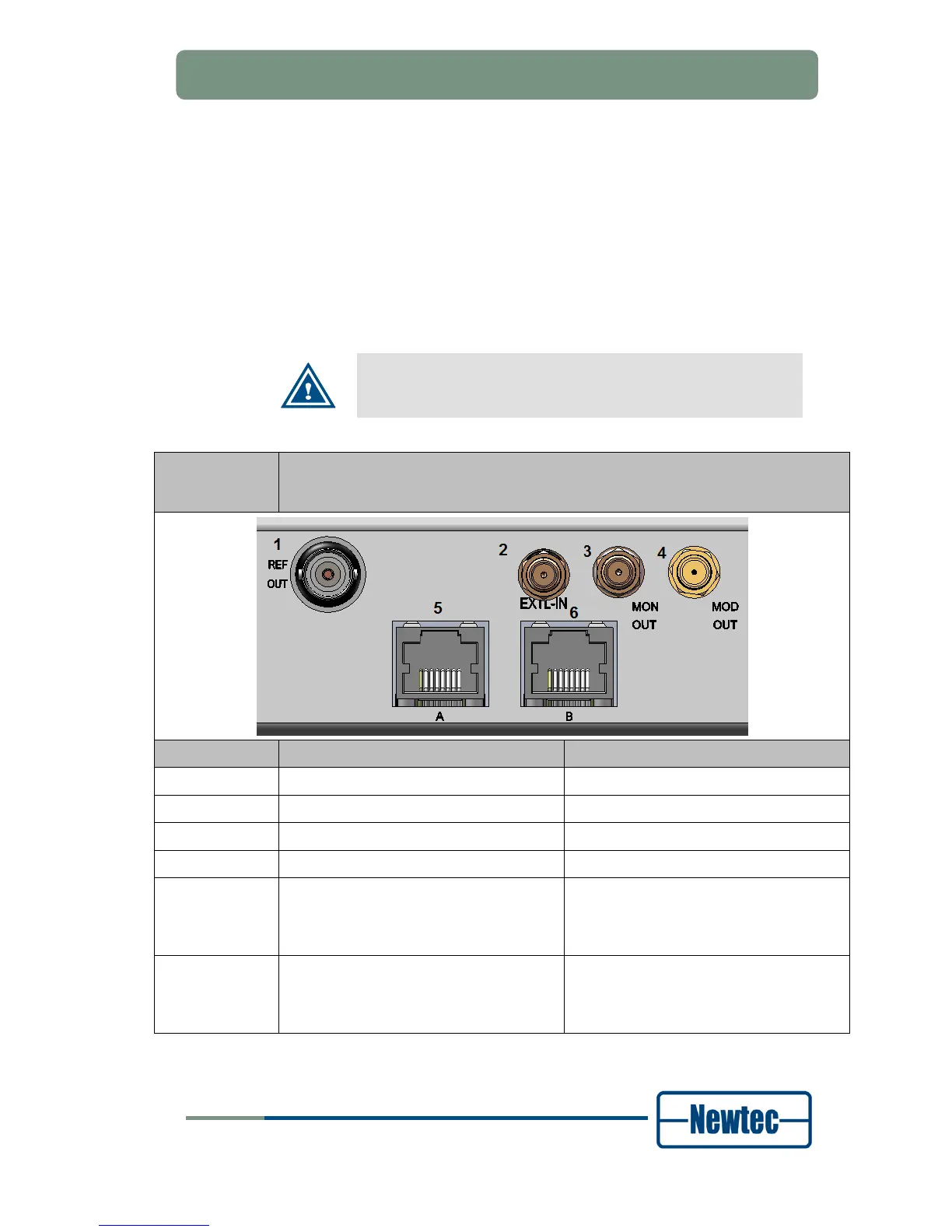

Back Panel 01 / Description
Connector Technical Specifications Signalling Type
1. REF OUT BNC (Female) 50 Ohm 10MHz reference out
2. EXT L IN Not used Not used
3. MON OUT SMA (Female) 50 Ohm L-band 1080MHz
4. MOD OUT SMA (Female) 50 Ohm L-band
5. A (Ethernet
Interface,
10/100/1000
BaseT)
RJ45 IP data
6. B (Ethernet
Interface,
10/100/1000
BaseT)
RJ45 IP data
