Physical Description
User Manual for EL170/970/470 IP Satellite Modulator/
Demodulator/Modem
version 4.2
47
SHAPING THE FUTURE OF SATELLITE COMMUNICATIONS

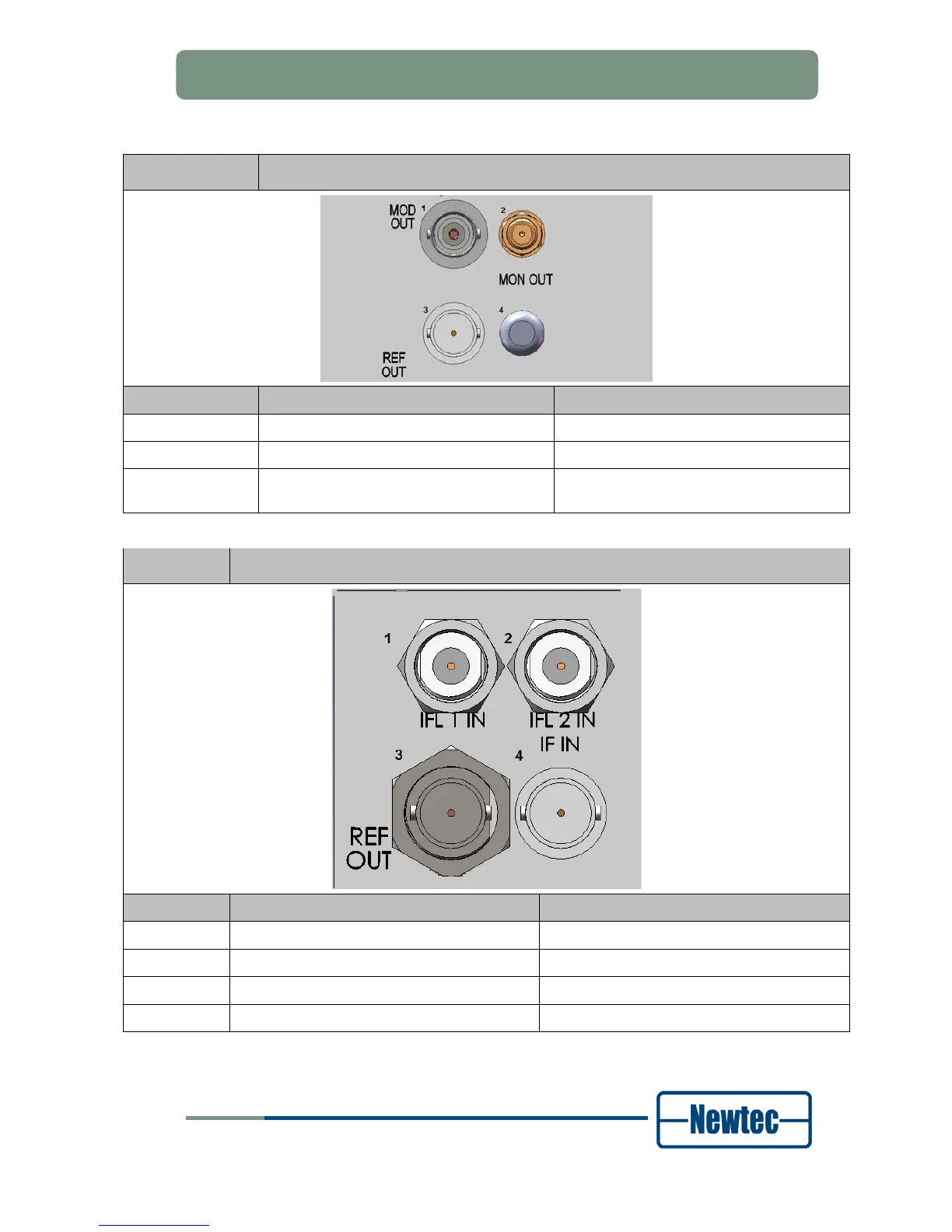

Back Panel 02 / Description
Connector Technical Specifications Signalling Type
1. MOD OUT BNC (Female) 75 Ohm IF-band 70MHz – 140MHz
2. MON OUT SMA (Female) 50 Ohm L-band 1080MHz
3. REF OUT BNC (Female) 50 Ohm 10MHz reference output
Back Panel 03 / Description
Connectors Technical Specifications Signalling Type
1. IFL 1 IN F-type (Female) 75 Ohm L-band input
2. IFL 2 IN F-type (Female) 75 Ohm L-band input
3. REF OUT BNC (Female) 50 Ohm 10MHz reference out
4. IF IN IF-band input
