Physical Description
User Manual for EL170/970/470 IP Satellite Modulator/
Demodulator/Modem
version 4.2
48
SHAPING THE FUTURE OF SATELLITE COMMUNICATIONS

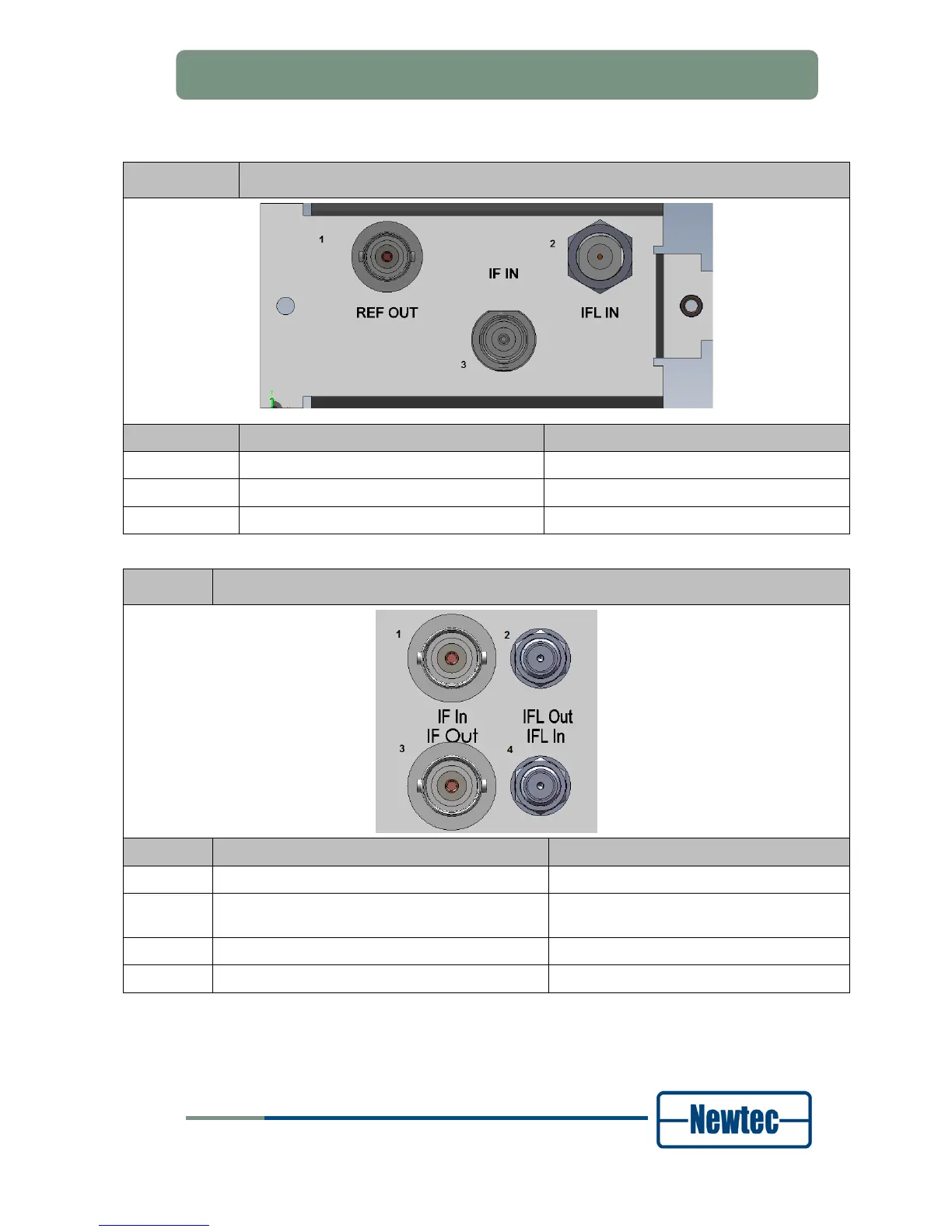

Back Panel 04 / Description
Connector Technical Specifications Signalling Type
1. REF OUT BNC (Female) 50 Ohm 10MHz reference out
2. IFL IN F-type (Female) 75 Ohm L-band input
3. IF IN BNC (Female) 75 Ohm IF-band input
Connector Back Panel 05 / Description
Connector Technical Specifications Signalling Type
1. IF In Not Applicable
2. IFL
OUT
SMA (Female) 50 Ohm L-band output
3. IF Out Not Applicable
4. IFL In Not Applicable
