Part Names and Descriptions
3
Part Names and Descriptions

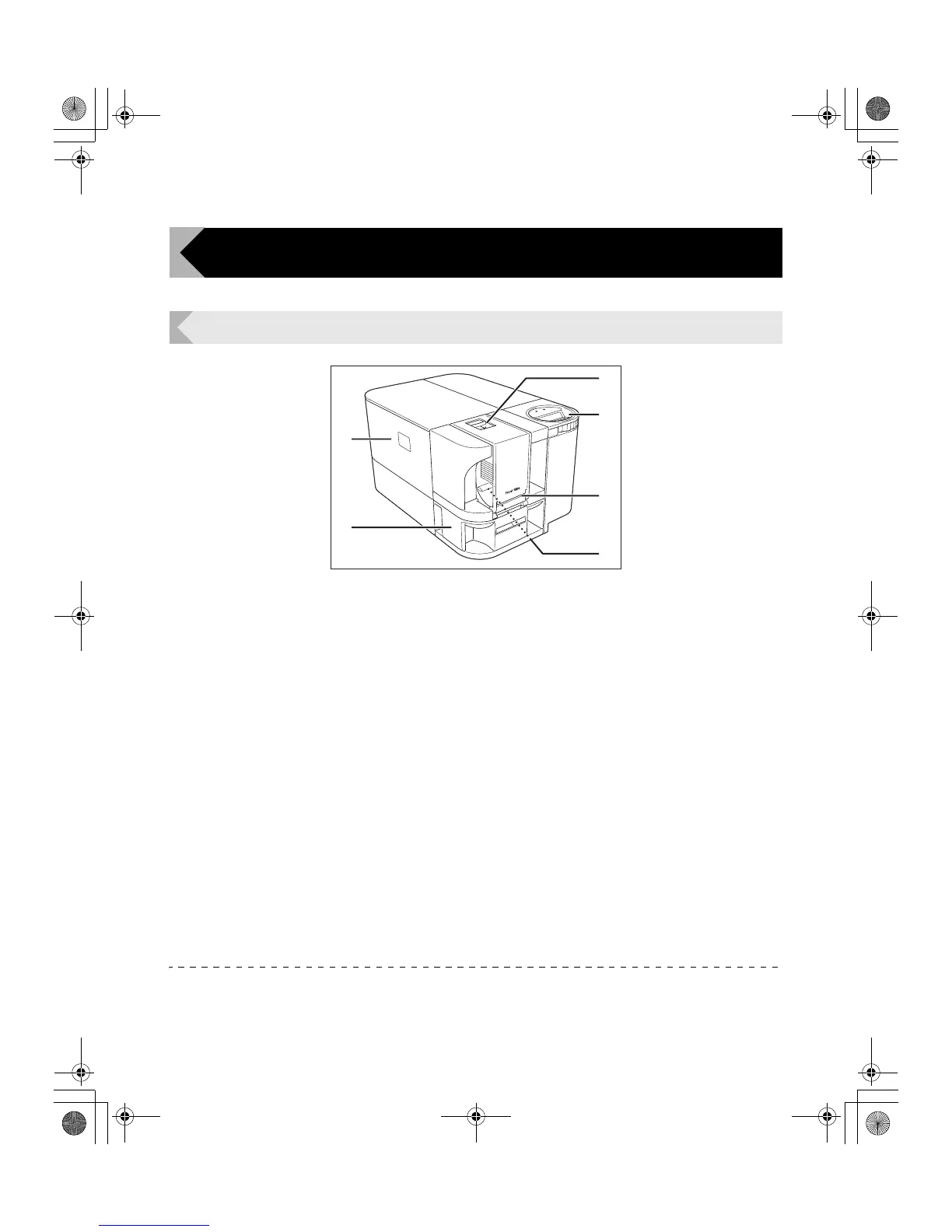

Front of the Printer
*1 When using CR-80 cards (size: 3.375" x 2.125" (86 mm x 54 mm), thickness: 0.03" (0.76 mm)).
a Card Case
Up to 100
*1
cards can be loaded at one time.
→See "Loading Cards" on page 9 for instructions on
loading the Card Case.
→See "Cards" on page 43 for details about which
cards you can use.
b Operation Panel
Includes the keys, the LCD Panel, and indicator
for operating the printer.
→See "Operation Panel" on page 6 for part names
and descriptions.
→See "Normal Mode and User Mode" on page 15 for
information about basic operations.
c Card Feeding Slot
You can load cards manually, one by one.
→See "Manually Loading Cards One by One" on
page 10 for instructions on loading manually.
→See "Cards" on page 43 for details about which
cards you can use.
d Feeding Roller
Pulls loaded cards into the printer.
→See "Cleaning the Feeding Roller" on page 35 for
cleaning instructions.
e Card Ejection Slot 1
Ejects correctly printed cards and cards with
errors.
It has a maximum capacity of 30
*1
cards.
You can select between Card Ejection Slot 1
and 2 for card ejection.
→See "Switching the Card Ejection Slot" on page 21
for information about switching the card ejection slot.
f Front Cover
Open this cover to change the Ink Ribbon
Cartridge and clean the roller.
→See "Front Cover" on page 5 for information about
the names of parts inside the cover and their
descriptions.
→See "Changing the Ink Ribbon Cartridge" on
page 13 for details about changing the Ink Ribbon
Cartridge.
→See "Cleaning" on page 32 for cleaning instructions.
a
f
e
b
c
d
PR-C101_C101M_E.book Page 3 Monday, August 27, 2007 11:16 AM
