28 Introduction
Network Architecture (Sample)
The Access Gateway can be deployed effectively in a variety of wireless and wired broadband
environments where there are many users—usually mobile—who need high speed access to
the Internet.

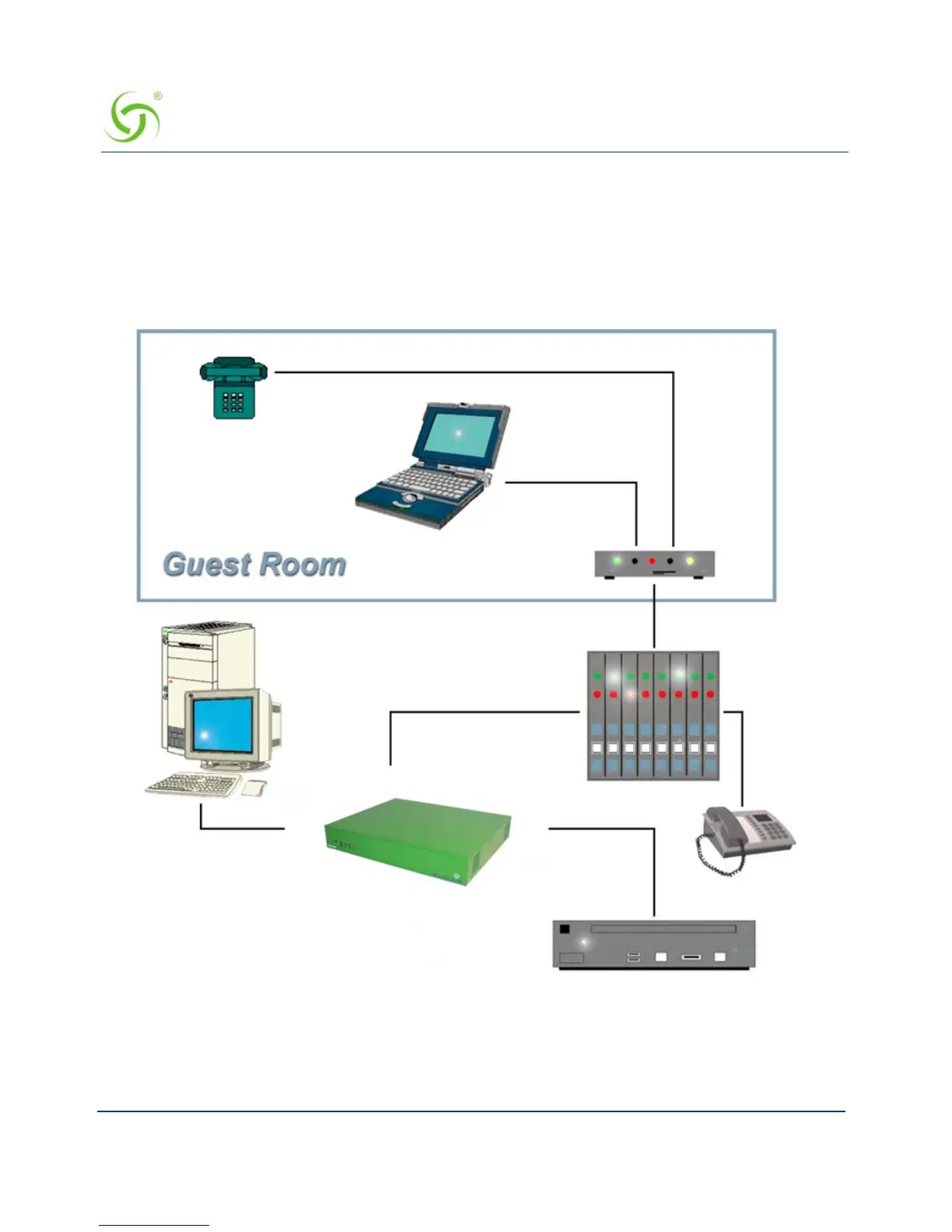

The following example shows a potential Hospitality application:
Phone
Laptop
DSL Modem
PMS
DSLAM
PBX
Router
AG
