104 Chapter 9 Network Address Translation (NAT)
N0115791

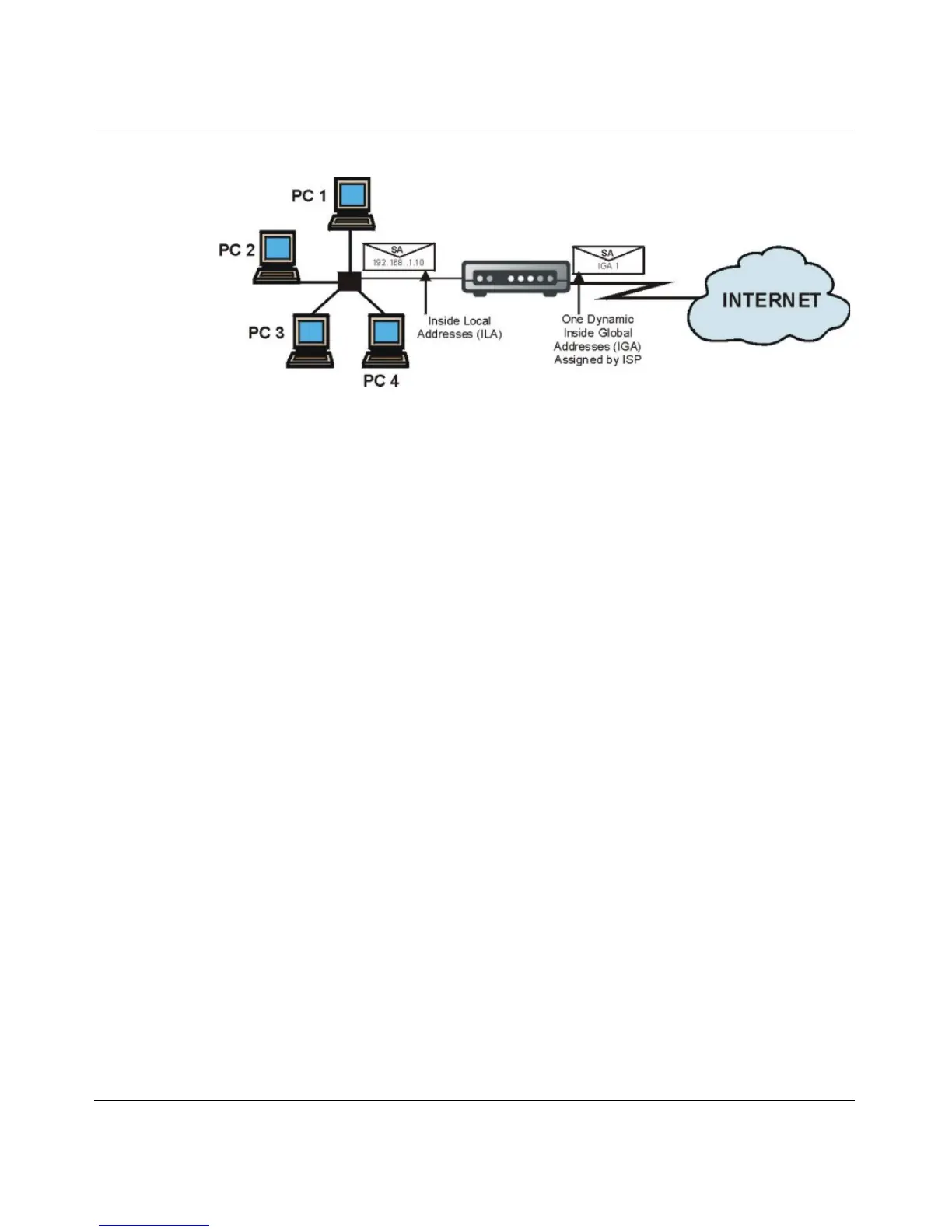

Figure 41 NAT Example 1
Figure 42 Menu 4: Internet access & NAT example
From menu 4 shown above, simply choose the SUA Only option from the
Network Address Translation field. This is the Many-to-One mapping
discussed in section “General NAT examples” on page 103. The SUA Only
read-only option from the Network Address Translation field in menus 4 and
11.3 is specifically preconfigured to handle this case.
Menu 4 - Internet Access Setup
ISP's Name= ChangeMe
Encapsulation= ENET ENCAP
Multiplexing= LLC-based
VPI #= 8
VCI #= 35
My Login= N/A
My Password= N/A
ENET ENCAP Gateway= N/A
IP Address Assignment= Dynamic
IP Address= N/A
Network Address Translation= SUA Only
Address Mapping Set= N/A
Press ENTER to Confirm or ESC to Cancel:
BCM50a Integrated Router
